Запчасти John Deere 30LC/370 294 - FRONT PIPINGS 3360 HYDRAULIC SYSTEM

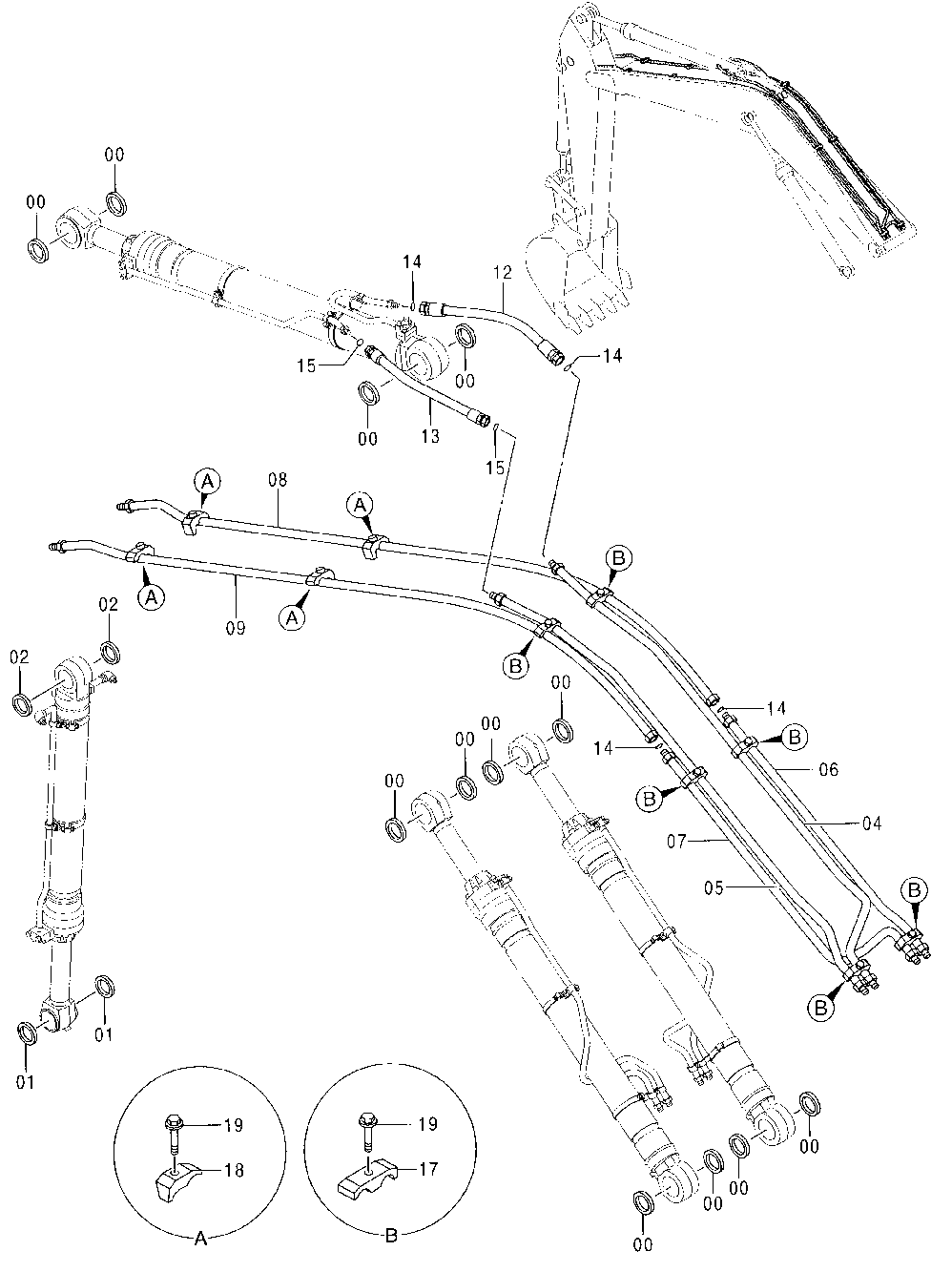

Схема запчастей John Deere 30LC/370 - 294 - FRONT PIPINGS 3360 HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

0

TH103200

Seal

12шт.

1

TH102411

Seal

2шт.

2

TH102445

Seal

2шт.

4

8069383

Oil Line

(SUB FOR AT250218)

1шт.

5

8069384

Oil Line

(SUB FOR AT250219)

1шт.

6

9727149

Oil Line

(SUB FOR TH111634)

1шт.

7

9727148

Oil Line

(SUB FOR TH111633)

1шт.

8

8069385

Oil Line

(SUB FOR AT250220)

1шт.

9

8069386

Oil Line

(SUB FOR AT250221)

1шт.

12

4387252

Hydraulic Hose

(SUB FOR AT250072)

1шт.

13

4345675

Hydraulic Hose

(SUB FOR AT172092)

1шт.

14

T78612

O-Ring

29.870 X 1.780 mm (1.176" X 0.070")

4шт.

15

T76938

O-Ring

23.520 X 1.780 mm (0.926" X 0.070")

2шт.

17

4189860

Clamp

(SUB FOR TH108314)

6шт.

18

4190127

Clamp

(SUB FOR TH108313)

4шт.

19

19M8348

Cap Screw

M12 X 65

10шт.

12H301

Lock Washer

1/2"

10шт.

Выбрано товаров: 17
