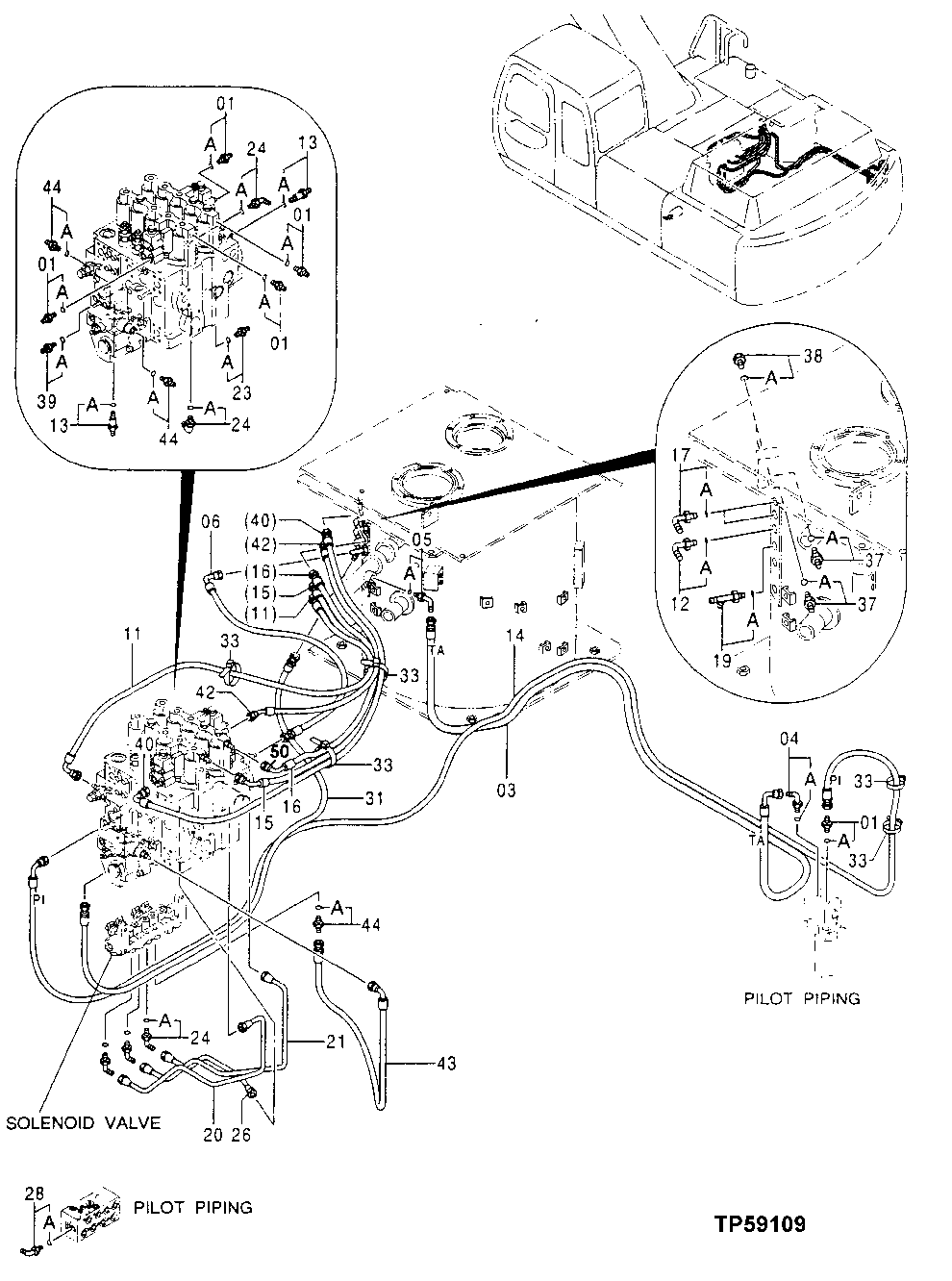

Запчасти John Deere 30LC/370 292 - PILOT PIPINGS 3360 HYDRAULIC SYSTEM

1

4200465

Adapter Fitting

(SUB FOR TH108328)

5шт.

1A

M800650

Packing

1шт.

3

4386674

Hydraulic Hose

(SUB FOR AT250065)

1шт.

4

4154672

Elbow Fitting

(SUB FOR TH101008)

1шт.

4A

4506418

O-Ring

17.800 X 2.400 mm (0.701" X 3/32") (SUB FOR U46489)

1шт.

5

4219345

Elbow Fitting

(SUB FOR AT130819)

1шт.

5A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

6

4391111

Hydraulic Hose

(SUB FOR AT250091)

1шт.

11

4333396

Hydraulic Hose

(SUB FOR AT219676)

1шт.

12

A852333

Elbow Fitting

(SUB FOR TH101047 ) (SUB FOR 4154671)

1шт.

12A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

13

4390157

Adapter Fitting

(SUB FOR AT250087)

2шт.

13A

M800650

Packing

1шт.

14

4391119

Hydraulic Hose

(SUB FOR AT250092)

1шт.

15

4386675

Hydraulic Hose

(SUB FOR AT250066)

1шт.

16

AT126850

Hydraulic Hose

11.1252" X 770 mm (30-1/4") X 11.1252"

1шт.

17

4154670

Elbow Fitting

(SUB FOR TH100951)

2шт.

17A

M800650

Packing

1шт.

19

4205363

Tee Fitting

(SUB FOR AT126362)

1шт.

19A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

20

4386525

Oil Line

(SUB FOR AT250059)

1шт.

21

3079456

Oil Line

(SUB FOR AT219635)

1шт.

23

4255304

Fitting

(SUB FOR AT155270)

1шт.

23A

M800650

Packing

1шт.

24

4293950

Fitting

(SUB FOR AT160584)

5шт.

24A

M800650

Packing

1шт.

26

4386526

Oil Line

(SUB FOR AT250060)

1шт.

28

AT318014

Elbow Fitting

(SUB FOR 4156434, TH101930)

1шт.

28A

M800650

Packing

1шт.

31

4319152

Hydraulic Hose

(SUB FOR AT219674)

1шт.

33

H77698

Tie Band

5шт.

37

AT318019

Adapter Fitting

(SUB FOR 4255792, AT213811)

2шт.

37A

M800650

Packing

1шт.

38

AT318013

Drain Plug

(SUB FOR 4093624, TH102536)

2шт.

38A

M800650

Packing

1шт.

39

4261937

Filter

(SUB FOR AP35920)

1шт.

39A

M800650

Packing

1шт.

40

4355424

Hydraulic Hose

(SUB FOR AT219690)

1шт.

42

4405433

Hydraulic Hose

(SUB FOR AT250145)

1шт.

43

AT215941

Hydraulic Hose

9/16" X 950 mm (37-1/2") X 9/16"

1шт.

44

4200467

Adapter Fitting

(SUB FOR TH108417)

3шт.

44A

M800650

Packing

1шт.

50

AH89069

Elbow Fitting

1шт.
