Запчасти John Deere 30LC/370 287 - PILOT PIPINGS 3360 HYDRAULIC SYSTEM

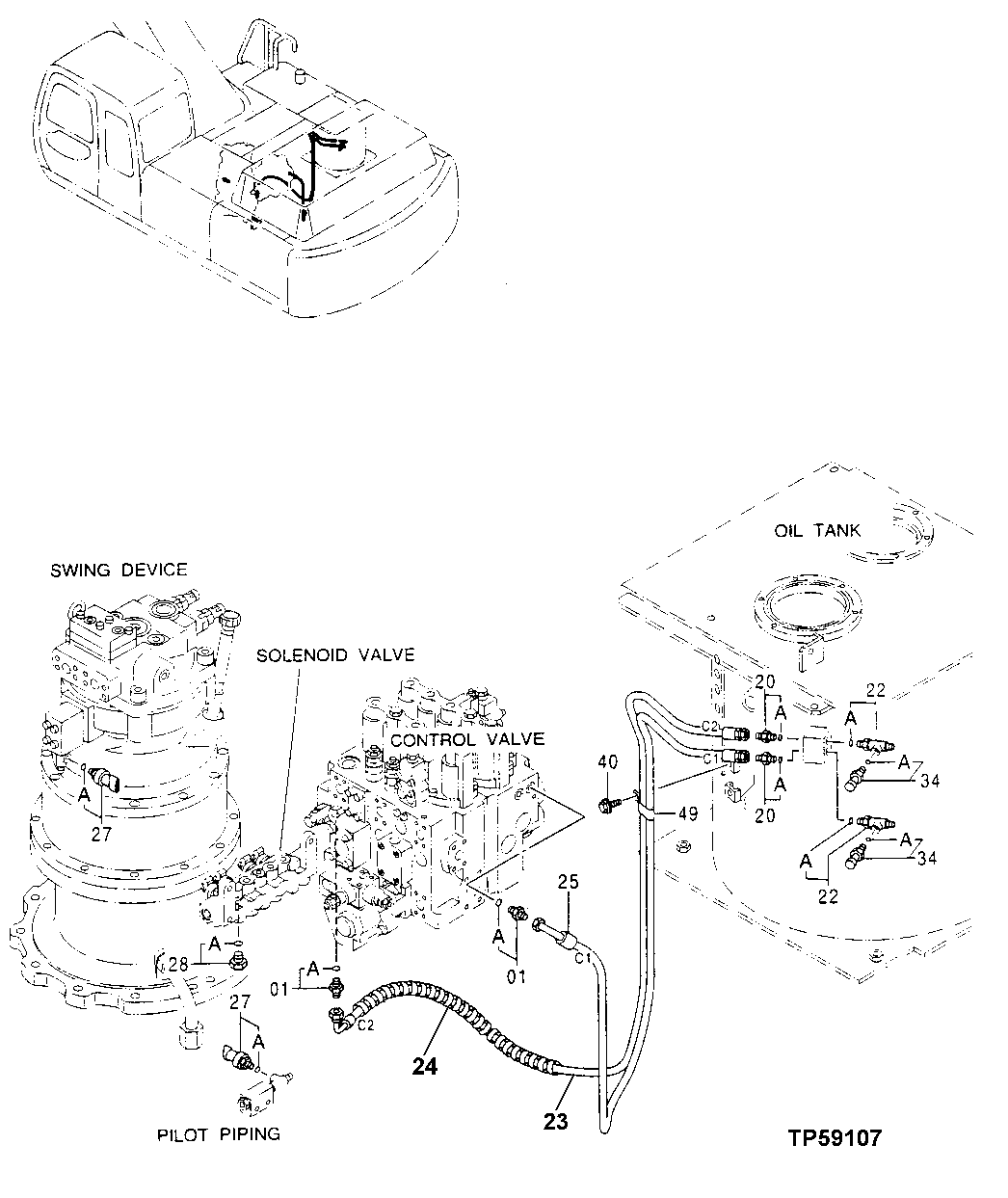

Схема запчастей John Deere 30LC/370 - 287 - PILOT PIPINGS 3360 HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

4200465

Adapter Fitting

SUB FOR TH108328

2шт.

1A

M800650

Packing

1шт.

20

AT318019

Adapter Fitting

SUB FOR 4255792, AT213811

2шт.

20A

M800650

Packing

1шт.

22

AT318023

Tee Fitting

SUB FOR 4364784, AT214020

2шт.

22A

M800650

Packing

1шт.

23

4390998

Hydraulic Hose

SUB FOR AT250089

1шт.

24

4327315

Hose Guard

4327293 NO LONGER AVA ILABLE SUB FOR AT213831

1шт.

25

4404388

Hydraulic Hose

SUB FOR AT250140

1шт.

27

4353686

Switch

SUB FOR AT213971, PILOT PRESSURE - AUTO IDLE AND DIG PRESSURE, PROPEL PRESSURE

1шт.

27A

M800650

Packing

1шт.

28

4093624

Drain Plug

TH102536

1шт.

28A

M800650

Packing

1шт.

34

4332040

Sensor

SUB FOR AT213840, FRONT AND REAR PUMP CONTROL PRESSURE

2шт.

34A

M800650

Packing

1шт.

40

19M7938

Cap Screw

M10 X 20

1шт.

12M7066

Lock Washer

10 mm

1шт.

49

M45242

Clip

SUB FOR TH108321, SUB FOR 4190292

1шт.

62

4353686

Switch

1шт.

62A

M800650

Packing

1шт.

Выбрано товаров: 20
