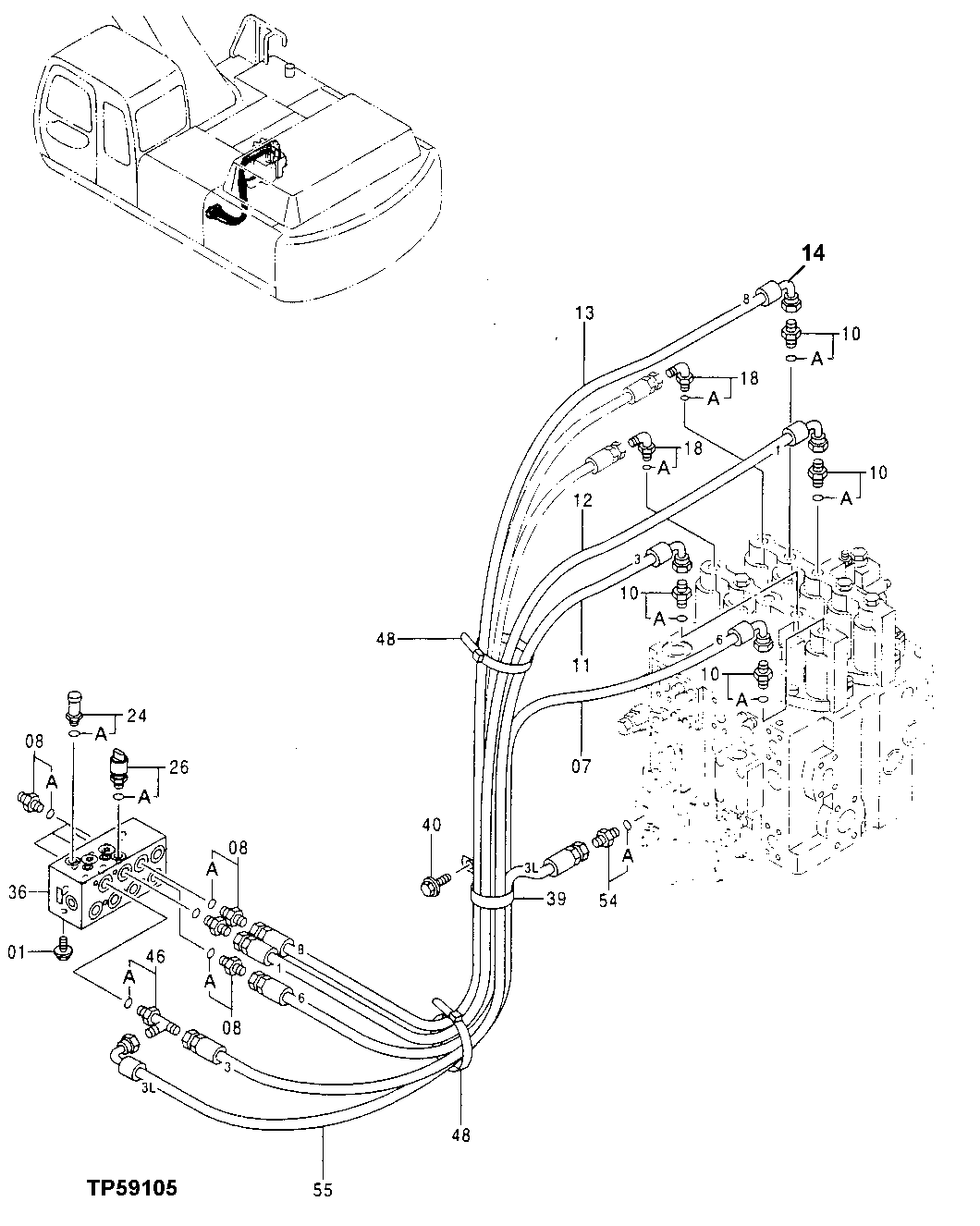

Запчасти John Deere 30LC/370 285 - PILOT PIPINGS 3360 HYDRAULIC SYSTEM

1

19M7402

Cap Screw

M10 X 25

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

7

4284184

Hydraulic Hose

(SUB FOR AT219671)

1шт.

8

4200466

Adapter Fitting

(SUB FOR TH108320)

7шт.

8A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

10

4202422

Adapter Fitting

(SUB FOR TH108440)

4шт.

10A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

11

4354358

Hydraulic Hose

(SUB FOR AT219687)

1шт.

12

4354356

Hydraulic Hose

(SUB FOR AT219686)

1шт.

13

AR103791

Hose

9/16" X 1625 mm (64") X 9/16"

1шт.

14

AE24616

Elbow Fitting

1шт.

18

4208913

Adapter Fitting

(SUB FOR AT126458)

2шт.

18A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

24

4332040

Sensor

(SUB FOR AT213840)(ARM IN PRESSURE)

1шт.

24A

M800650

Packing

1шт.

26

4333040

Switch

(SUB FOR AP33668 ) (SUB FOR AT213846)(BOOM UP PRESSURE)

1шт.

26A

M800650

Packing

1шт.

36

4392529

Hyd Actuated Control Valve

(SUB FOR AT250095)(FLOW CONTROL)

1шт.

39

XCL-29

Hose Clamp

(SUB FOR TH110522 OR 4193848)

1шт.

40

19M7938

Cap Screw

M10 X 20

1шт.

12M7066

Lock Washer

10 mm

1шт.

46

4205363

Tee Fitting

(SUB FOR AT126362)

1шт.

46A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

48

H77698

Tie Band

2шт.

54

4200467

Adapter Fitting

(SUB FOR TH108417)

1шт.

54A

M800650

Packing

1шт.

55

4405432

Hydraulic Hose

(SUB FOR AT250144)

1шт.
