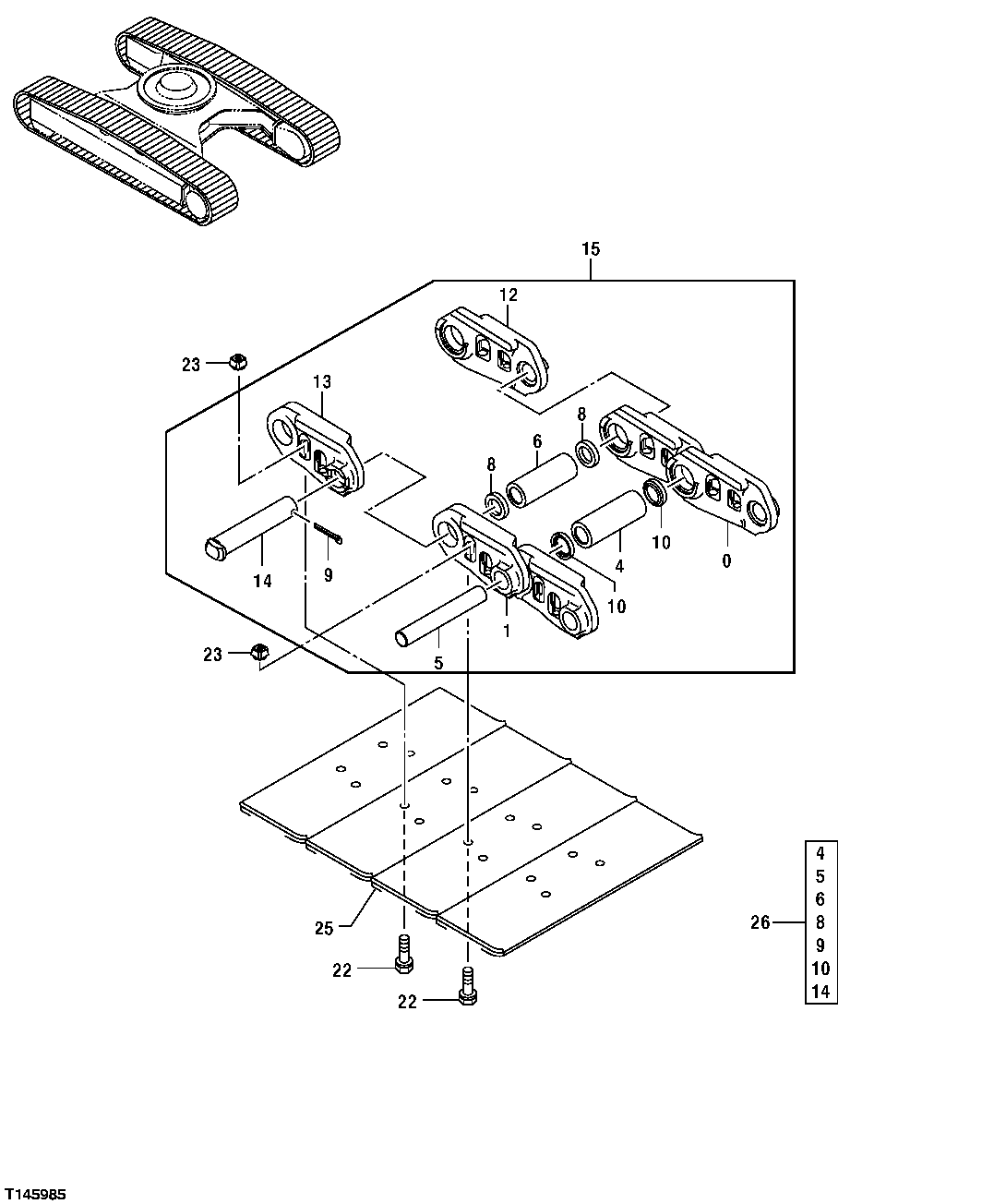

Запчасти John Deere 30LC/370 17 - TRACK LINK 370 0130 Track Systems

0

4328027

Track Link

(SUB FOR AT201777)

48шт.

1

4328028

Track Link

(SUB FOR AT201778)

48шт.

4

4328031

Bushing

(K) (SUB FOR AT201781)

48шт.

5

AT132153

Pin

(K)

48шт.

6

AT132505

Bushing

(K)

1шт.

8

4328032

Seal

(K) (SUB FOR AT201782)

2шт.

9

11H259

Cotter Pin

(K) 3/8" X 3-1/2"

1шт.

10

AT132527

Seal

(K)

96шт.

12

4342893

Master Track LINK-RH

(SUB FOR AT201779)

1шт.

13

4342894

Master Track LINK-LH

(SUB FOR AT201780)

1шт.

14

4342895

Master Track Pin

(K) (SUB FOR AT202240)

1шт.

15

9133225

Track Chain W/O Shoes

(SUB FOR AT250247)(QUANTI TY OF 1 EACH SIDE OF UNIT)

1шт.

22

4328034

Bolt

(SUB FOR AT201783)(EACH SIDE OF UNIT)

196шт.

23

4328035

Nut

(SUB FOR AT201784)(EACH SIDE OF UNIT)

196шт.

25

4403212

Triple Bar Shoe

(SUB FOR AT250131)(750 G) (EACH SIDE OF UNIT)

49шт.

26

Bushing Kit

(INCLUDES ALL (K) PARTS) ( AT170096 NLA)

1шт.
