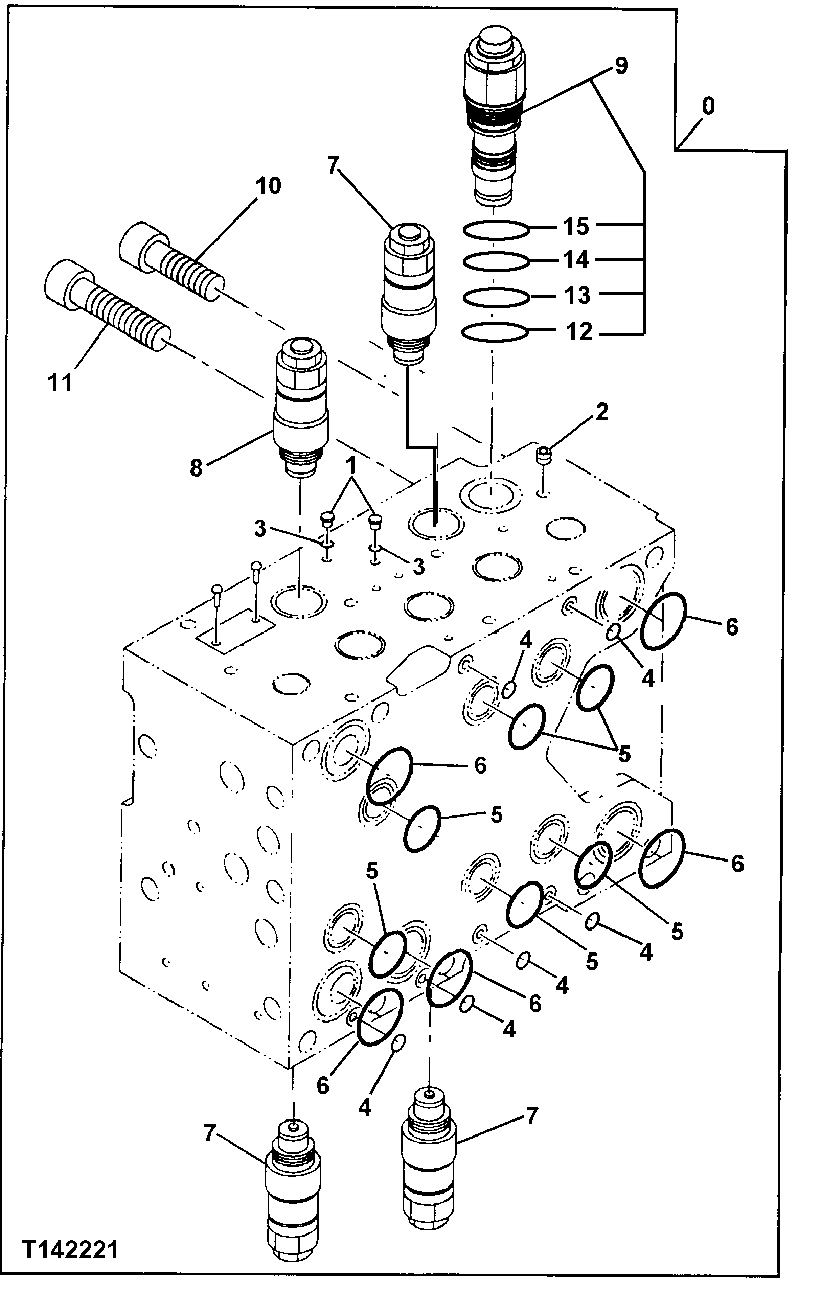

Запчасти John Deere 30LC/370 278 - Control Valve 3360 HYDRAULIC SYSTEM

0

4363127

Hyd Actuated Control Valve

SUB FOR AT250457 OR AT219691 Contain s All Items On This Page - Additional Components Listed On Previous Pages

1шт.

1

0719004

Fitting Plug

SUB FOR AT219523

2шт.

2

0451028

Fitting Plug

SUB FOR AT201622

1шт.

3

4506408

O-Ring

7.800 X 1.900 mm (0.307" X 0.075") SUB FOR TH101490

2шт.

4

4366519

O-Ring

SUB FOR AT219504

6шт.

5

0719401

O-Ring

SUB FOR AT219564 OR 4S00737

6шт.

6

0719402

O-Ring

SUB FOR AT219565

5шт.

7

0719116

Pressure Relief Valve

SUB FOR AT219547 Arm I n, Arm Out, Bucket Curl

3шт.

8

0719117

Pressure Relief Valve

SUB FOR AT219548 Bucket Dump

1шт.

9

4723238

Flow Control Hyd. Valve

SUB FOR 0816502 Pump Control Valve

1шт.

10

0719403

Screw

SUB FOR AT219566

1шт.

11

19M9510

Screw

M14 X 150 SUB FOR AT219567 OR 0719404

8шт.

12

AT264348

O-Ring

(SUB FOR TH102788 OR AT193431

1шт.

13

4451354

O-Ring

SUB FOR AT193432

1шт.

14

CH12329

Packing

1шт.

15

4451353

O-Ring

SUB FOR AT193433

1шт.
