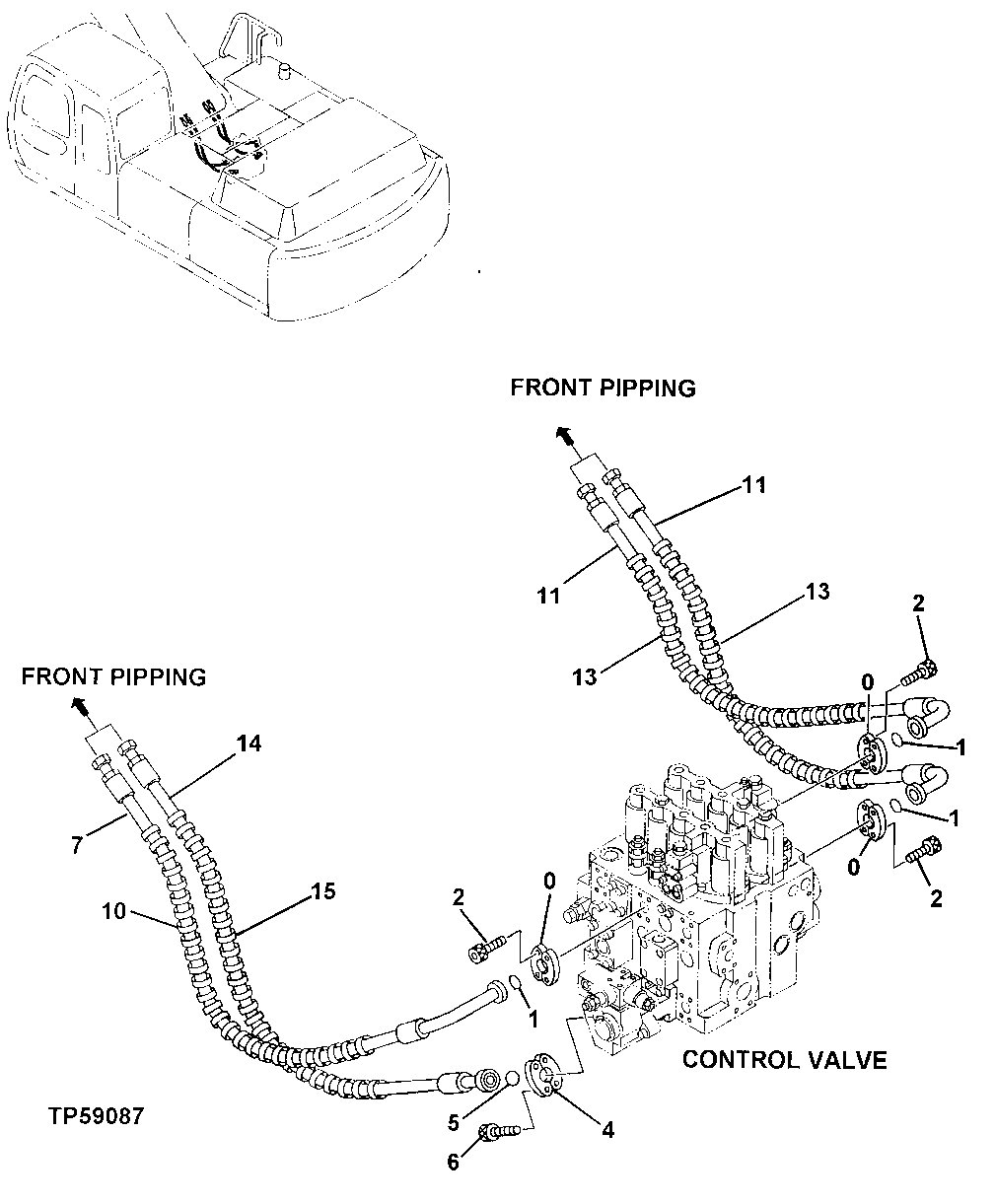

Запчасти John Deere 30LC/370 267 - MAIN PIPINGS 3360 HYDRAULIC SYSTEM

0

H61354

Flange Fitting

6шт.

1

T78313

O-Ring

32.920 X 3.530 mm (1.296" X 0.139")

3шт.

2

19M7576

Screw

M10 X 30 (SUB FOR J781030)

12шт.

4

R29867

Flange Fitting

2шт.

5

T72216

O-Ring

37.694 X 3.531 mm (1-31/64" X 0.139")

1шт.

6

J781228

Bolt

(SUB FOR P61967 ) (SUB FOR AT214412)

4шт.

7

4386290

Hydraulic Hose

(SUB FOR AT250056)

1шт.

10

Hose Guard

(MAKE FROM XHG-075, BULK MATERIAL, CUT TO LENGTH) (SUB FOR AT213832 ( 4327294 NLA))

3шт.

11

AT250055

Hydraulic Hose

2шт.

13

Hose Guard

(MAKE FROM XHG-075, BULK MATERIAL, CUT TO LENGTH) (SUB FOR AT213832 ( 4327294 NLA))

4шт.

14

4405050

Hydraulic Hose

(SUB FOR AT250143)

1шт.

15

Hose Guard

(MAKE FROM XHG-075, BULK MATERIAL, CUT TO LENGTH) (SUB FOR AT213832 OR 4327294)

2шт.
