Запчасти John Deere 30LC/370 266 - MAIN PIPINGS 3360 HYDRAULIC SYSTEM

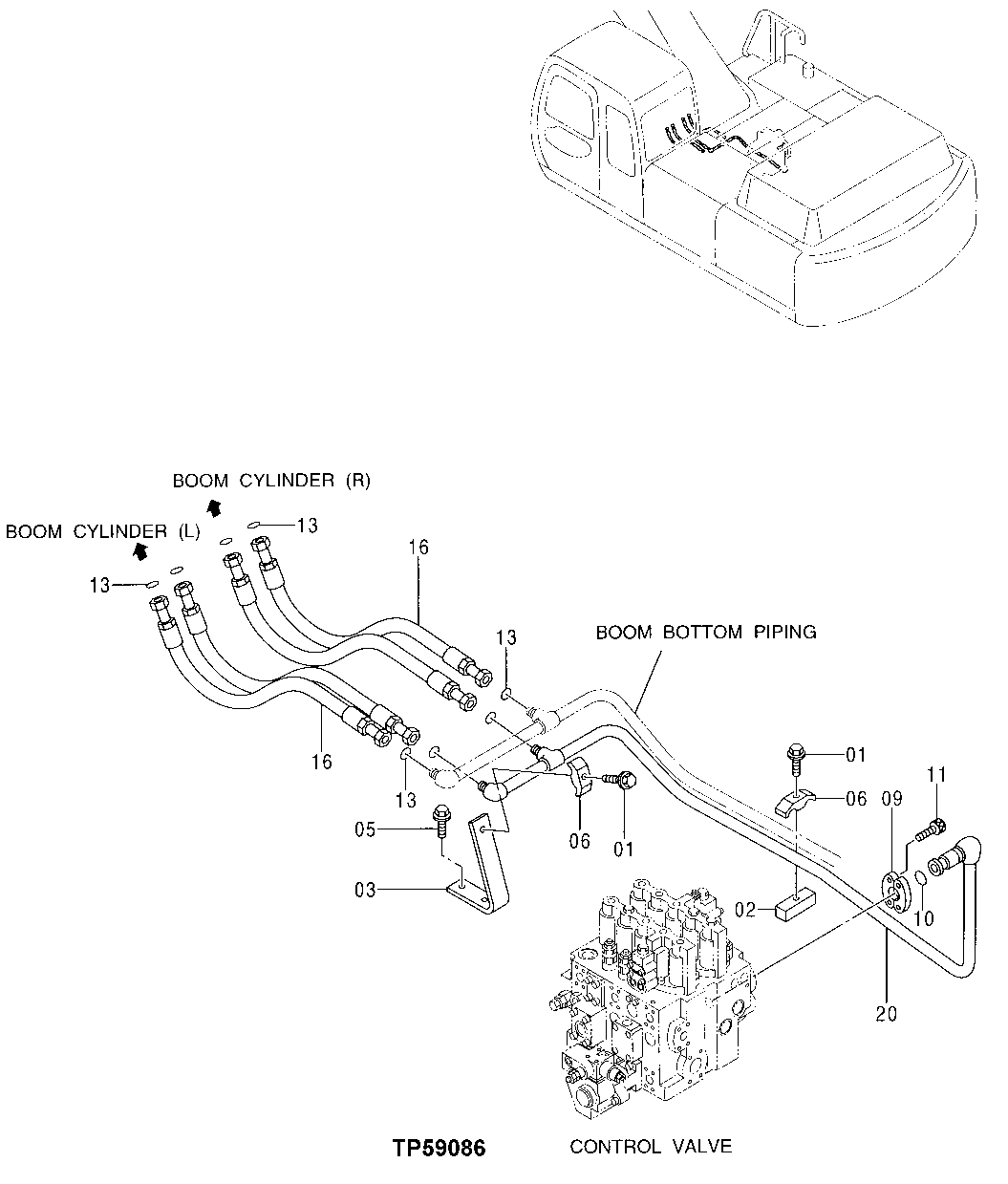

Схема запчастей John Deere 30LC/370 - 266 - MAIN PIPINGS 3360 HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

19M7753

Cap Screw

M12 X 70

2шт.

12H301

Lock Washer

1/2"

2шт.

Bolt

( J271270 NLA)

1шт.

19M7753

Cap Screw

M12 X 70

1шт.

24M7345

Washer

13.500 X 24 X 2.500 mm

1шт.

Bolt

( J271285 NLA)

1шт.

19M8122

Cap Screw

M12 X 85

1шт.

24M7345

Washer

13.500 X 24 X 2.500 mm

1шт.

2

Strap

( AT155254 NOT AVAILABLE FOR SERVICE)

1шт.

3

9766967

Support

(SUB FOR TH111310, 4206060 ) (USE WITH J271270 AND J271285)

1шт.

5

19M8011

Cap Screw

M12 X 30

2шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

2шт.

6

4189860

Clamp

(SUB FOR TH108314)

2шт.

9

R29424

Flange Fitting

2шт.

10

T59014

O-Ring

24.994 X 3.531 mm (63/64" X 0.139")

1шт.

11

19M7576

Screw

M10 X 30 (SUB FOR J781030)

4шт.

13

T76938

O-Ring

23.520 X 1.780 mm (0.926" X 0.070")

8шт.

16

4345675

Hydraulic Hose

(SUB FOR AT172092)

4шт.

20

8069137

Oil Line

(SUB FOR AT250211)

1шт.

Выбрано товаров: 19
