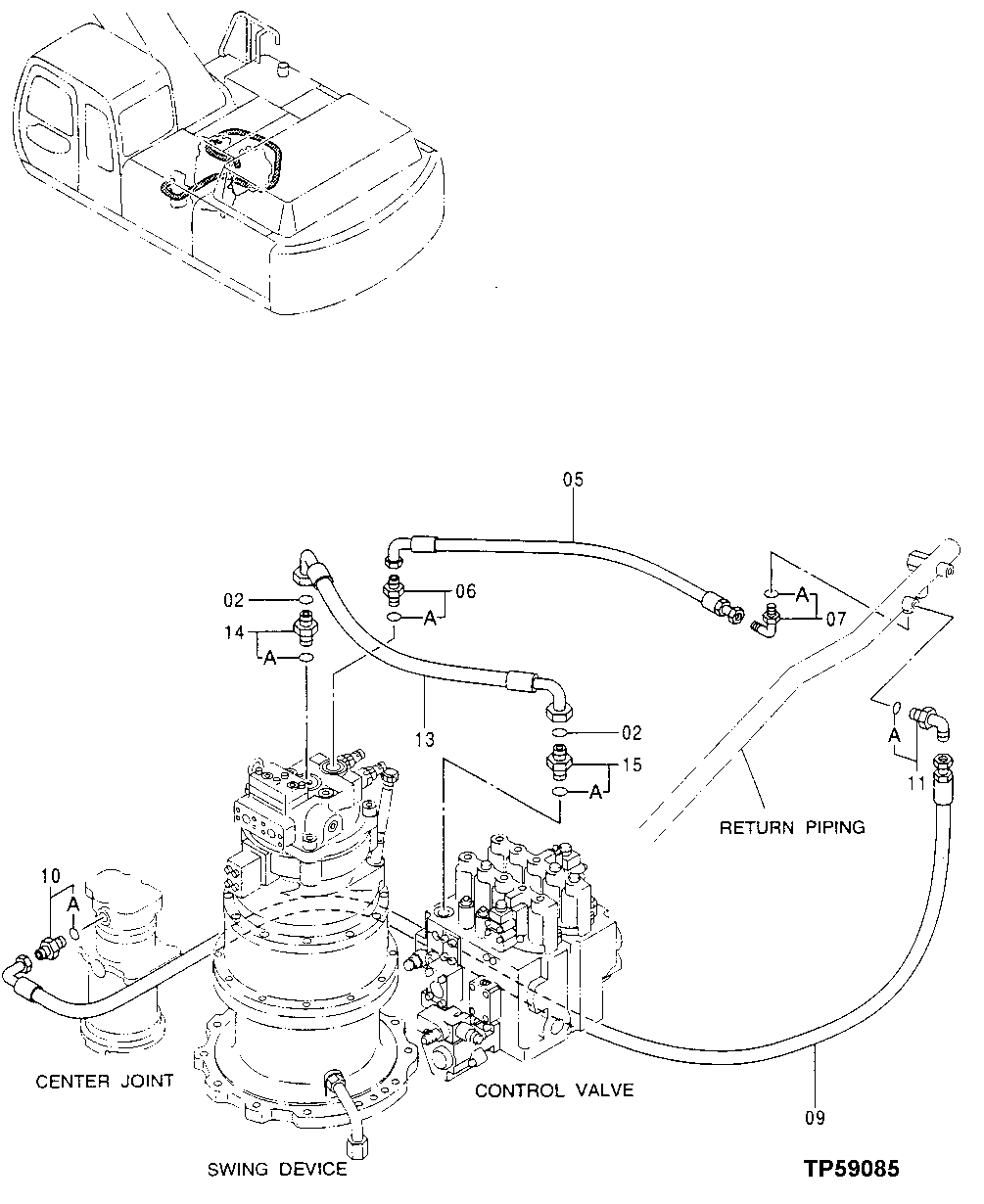

Запчасти John Deere 30LC/370 265 - DRAIN PIPINGS 3360 HYDRAULIC SYSTEM

2

T76938

O-Ring

23.520 X 1.780 mm (0.926" X 0.070")

2шт.

5

AT217770

Hydraulic Hose

1шт.

6

4200469

Adapter Fitting

(SUB FOR TH108400)

1шт.

6A

4506418

O-Ring

17.800 X 2.400 mm (0.701" X 3/32") (SUB FOR U46489)

1шт.

7

A852333

Elbow Fitting

(SUB FOR TH101047 ) (SUB FOR 4154671)

1шт.

7A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

9

4313440

Hydraulic Hose

(SUB FOR AT219673)

1шт.

10

4221290

Adapter Fitting

(SUB FOR AT131902)

1шт.

10A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

11

4219345

Elbow Fitting

(SUB FOR AT130819)

1шт.

11A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

13

4390646

Hydraulic Hose

(SUB FOR AT250088)

1шт.

14

4189535

Adapter Fitting

(SUB FOR AT114853)

1шт.

14A

TH101926

O-Ring

28.700 X 3.500 mm (1.130" X 0.138")

1шт.

15

4189601

Adapter Fitting

(SUB FOR AT107394)

1шт.

15A

AT318035

O-Ring

(SUB FOR 4506424, TH100055)

1шт.
