Запчасти John Deere 30LC/370 262 - Boom 3344 Boom

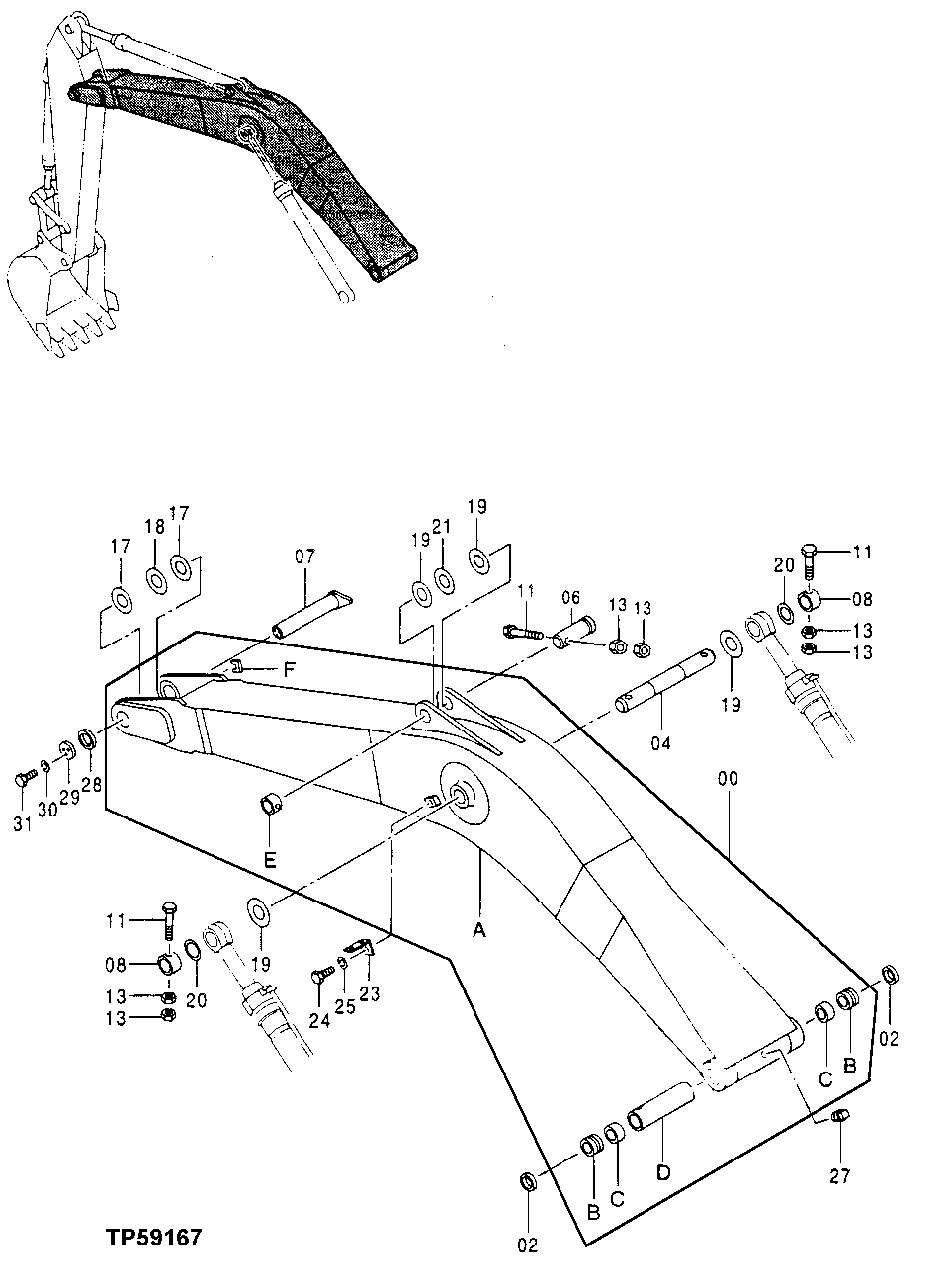

Схема запчастей John Deere 30LC/370 - 262 - Boom 3344 Boom

Артикул

Название

Примечание

Количество

0

7030770

Excavator Boom

(SUB FOR AT250169)(MUST ALS O ORDER BUSHINGS AND SEALS)

1шт.

0A

Excavator Boom

1шт.

0B

4443884

Bushing

(SUB FOR 4381854 ) (SUB FOR AT250025)

2шт.

0C

4381855

Bushing

(SUB FOR AT250026)

2шт.

0D

4382145

Spacer

(SUB FOR AT250030)

1шт.

0E

4662435

Stop

(SUB FOR AT131769 OR 4205110)

1шт.

0F

4299048

Stop

(SUB FOR AT201753)

1шт.

2

TH103200

Seal

2шт.

4

AT219636

Pin

1шт.

6

AT219637

Pin

(CROSSBOLT PIN)

1шт.

8080908

Pin Fastener

(FLAG PIN)

1шт.

7

AT250452

Pin Fastener

1шт.

8

4662435

Stop

(SUB FOR AT131769 OR 4205110)

2шт.

11

19M8100

Cap Screw

M20 X 180

3шт.

13

14M7277

Nut

M20

6шт.

17

4373798

Wear Plate

(SUB FOR AT250013)

2шт.

18

4373799

Wear Plate

(SUB FOR AT250014)

1шт.

19

4387440

Washer

(SUB FOR AT250073)

4шт.

20

4387444

Washer

(SUB FOR AT250075)

2шт.

21

4387443

Washer

(SUB FOR AT250074)

1шт.

23

4224631

Angle

(SUB FOR TH111685)

1шт.

24

J901425

Cap Screw

(SUB FOR TH104071)

1шт.

25

12H317

Lock Washer

9/16"

1шт.

27

94-2023

Fitting Plug

(SUB FOR TH100667)

1шт.

28

4387307

Bushing

(SUB FOR AT250453)

1шт.

29

4387309

Spacer

(SUB FOR AT250454)

1шт.

30

12M7070

Lock Washer

20 mm

3шт.

31

19M7597

Cap Screw

M20 X 50 (SUB FOR J912050)

3шт.

Выбрано товаров: 28
