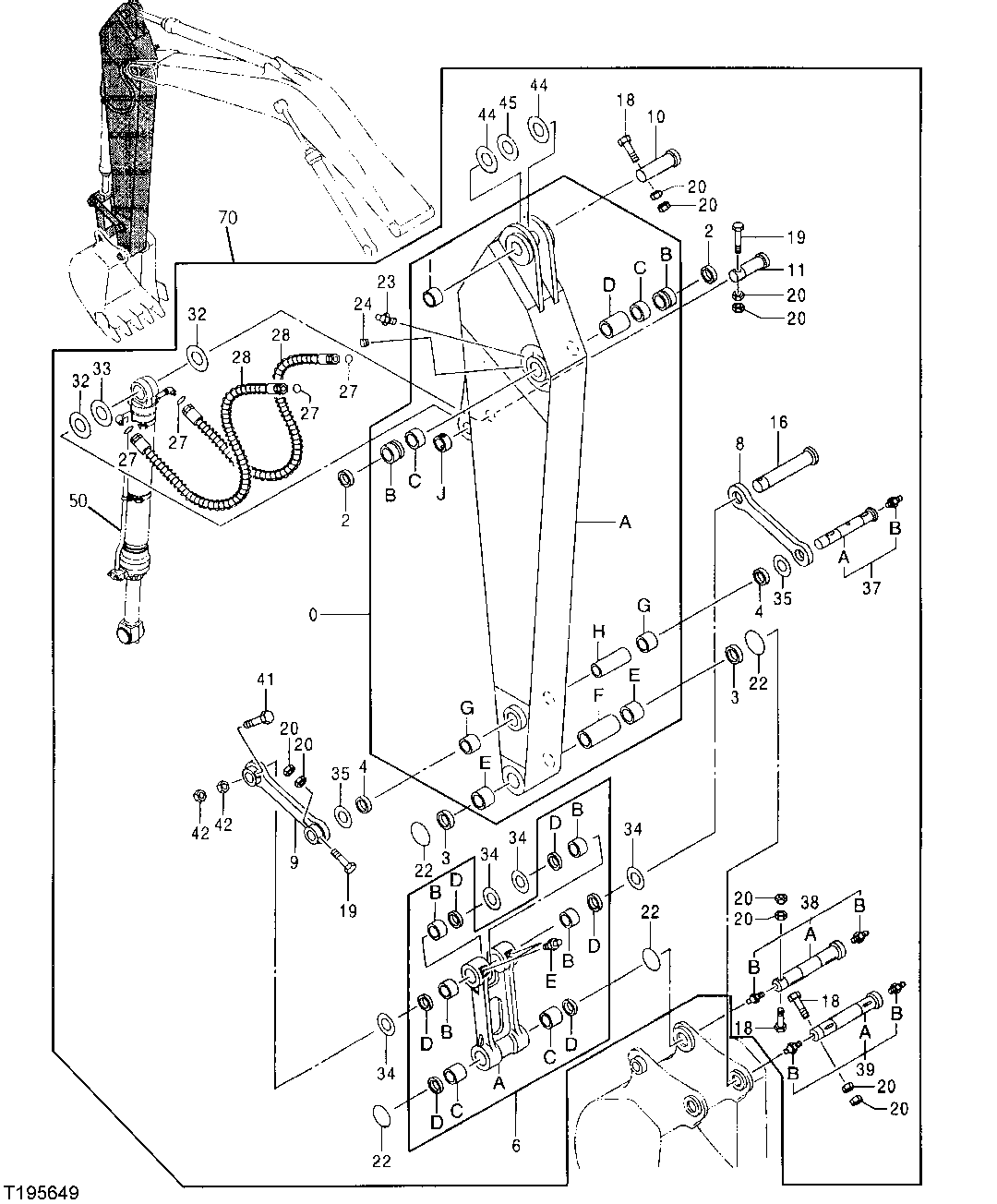

Запчасти John Deere 30LC/370 261 - LONG ARM 4.0 M 3340 BACKHOE AND EXCAVATOR FRAMES

0

7034140

Arm

(SUB FOR AT183136)(CONVENIENCE ASSEMBLY)

1шт.

0A

Arm

1шт.

0B

4443884

Bushing

(SUB FOR 4381854 ) (SUB FOR AT250025)

2шт.

0C

4381855

Bushing

(SUB FOR AT250026)

2шт.

0D

4382146

Spacer

(SUB FOR AT250031)

1шт.

0E

4381856

Bushing

(SUB FOR AT250027)

2шт.

0F

4382148

Spacer

(SUB FOR AT250033)

1шт.

0G

4358100

Bushing

(SUB FOR AT217787)

2шт.

0H

4382147

Spacer

(SUB FOR AT250032)

1шт.

0I

4662435

Stop

(SUB FOR AT131769 OR 4205110)

1шт.

0J

TH102409

Bushing

92.075 X 120.650 X 50.800 mm (3-5/8" X 4-3/4" X 2")

1шт.

2

TH103200

Seal

2шт.

3

TH102411

Seal

2шт.

4

TH102445

Seal

2шт.

6

8069128

Link

(SUB FOR AT250209)

1шт.

6A

Link

1шт.

6B

4381857

Bushing

(SUB FOR AT250028)

4шт.

6C

4381856

Bushing

(SUB FOR AT250027)

2шт.

6D

TH102411

Seal

6шт.

6E

TH100074

Lubrication Fitting

2шт.

8

3055521J

Link

(SUB FOR AT200979 OR 3055521)

1шт.

9

8071699J

Link

(SUB FOR AT250240 OR 8071699)

1шт.

10

AT219637

Pin

(CROSSBOLT PIN)

1шт.

8080908

Pin Fastener

(FLAG PIN)

1шт.

11

AT219638

Pin Fastener

1шт.

16

AT192341

Pin Fastener

(SUB FOR AT219655)

1шт.

18

19M8100

Cap Screw

M20 X 180

3шт.

19

19M8503

Cap Screw

M20 X 160

2шт.

20

14M7277

Nut

M20

10шт.

22

4100180

O-Ring

(SUB FOR TH103229)STANDARD O-RING

4шт.

AT349467

Seal

SPLIT O-RING

4шт.

23

TH100074

Lubrication Fitting

2шт.

24

94-2010

Fitting Plug

(SUB FOR TH100689)

2шт.

27

T76938

O-Ring

23.520 X 1.780 mm (0.926" X 0.070")

4шт.

28

4397354

Hydraulic Hose

(SUB FOR AT250113) Fabricate

2шт.

32

4372971

Washer

(SUB FOR AT217822)

2шт.

33

4380739

Washer

(SUB FOR AT250023)

1шт.

34

4387447R

Thrust Washer

(SUB FOR AT250076 OR 4387447)

4шт.

35

4387448

Washer

(SUB FOR AT250077)

2шт.

37

Pin

1шт.

37A

TH111181

Pin Fastener

1шт.

37B

TH100074

Lubrication Fitting

1шт.

38

Pin

1шт.

38A

TH112086

Pin Fastener

1шт.

38B

TH100074

Lubrication Fitting

2шт.

39

Pin

1шт.

39A

AT164648

Pin Fastener

1шт.

39B

TH100074

Lubrication Fitting

2шт.

41

AT128457

Bolt

M22 X 200

1шт.

42

J951022

Nut

(SUB FOR TH102457)

2шт.

44

4387440

Washer

(SUB FOR AT250073)

2шт.

45

4387443

Washer

(SUB FOR AT250074)

1шт.

50

Cylinder

(BUCKET) (FOR DETAIL SEE SEPARATE PAGE)

1шт.

70

AT183132

Arm

WHOLEGOODS (INCLUDES STANDARD ARM, BUCKET CYLINDER, HOSES, AND LINKAGE)

1шт.

90

AT349467

Seal

(SUB FOR T238397)(NOT ILLUSTRATED)

1шт.

19M9304

Cap Screw

M5 X 90 (NOT ILLUSTRATED)

1шт.

14M7572

Lock Nut

M5 (NOT ILLUSTRATED)

1шт.

24M7027

Washer

5.300 X 10 X 1 mm (NOT ILLUSTRATED)

1шт.
