Запчасти John Deere 30LC/370 253 - AUXILIARY 2-WAY HYDRAULIC FOOT PEDAL CONTROL 3315 Control Linkage

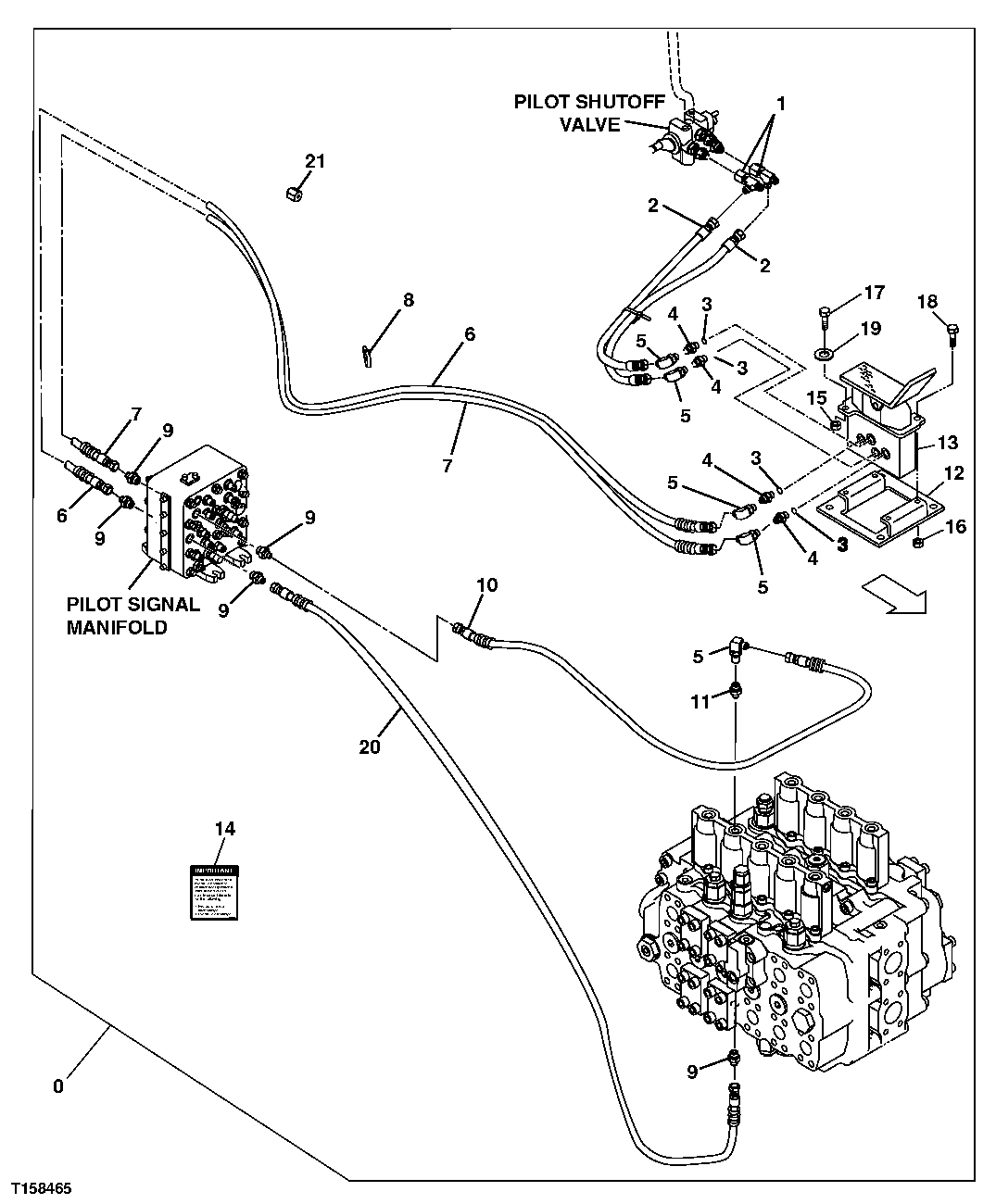

Схема запчастей John Deere 30LC/370 - 253 - AUXILIARY 2-WAY HYDRAULIC FOOT PEDAL CONTROL 3315 Control Linkage

Артикул

Название

Примечание

Количество

0

Field Installation Kit

(AUXILIARY FOOT PEDAL CONTROL) (SUB FOR AT160350 AND AT185482 (WHOLE GOODS) ( AT195684 NLA))

1шт.

1

AT36921

Tee Fitting

2шт.

2

AH108250

Hose

9/16" X 787 mm (31") X 9/16"

2шт.

3

R26448

O-Ring

4шт.

4

R27212

Fitting

4шт.

5

AE24616

Elbow Fitting

5шт.

6

AE42067

Hydraulic Hose

9/16" X 3699 mm (145-3/4") X 9/16"

1шт.

7

AE42067

Hydraulic Hose

9/16" X 3699 mm (145-3/4") X 9/16"

1шт.

8

H77698

Tie Band

5шт.

9

4200466

Adapter Fitting

(SUB FOR TH108320)

5шт.

CH11570

O-Ring

5шт.

10

AT68901

Hydraulic Hose

9/16" X 964 mm (38") X 9/16"

2шт.

11

4202422

Adapter Fitting

(SUB FOR TH108440)

1шт.

CH11570

O-Ring

1шт.

12

AT115535

Support

1шт.

13

AT152120

Valve

1шт.

14

T149434

Label

1шт.

15

14M7296

Flange Nut

M10

1шт.

16

14M7298

Flange Nut

M8

4шт.

17

19M7784

Screw

M10 X 20

2шт.

18

19M7866

Screw

M8 X 20

4шт.

19

24M7296

Washer

10.500 X 30 X 2.500 mm

2шт.

20

AR90081

Hydraulic Hose

1шт.

21

R31147

Fitting

(TANK PORT DRAIN LINE)

1шт.

Выбрано товаров: 24
