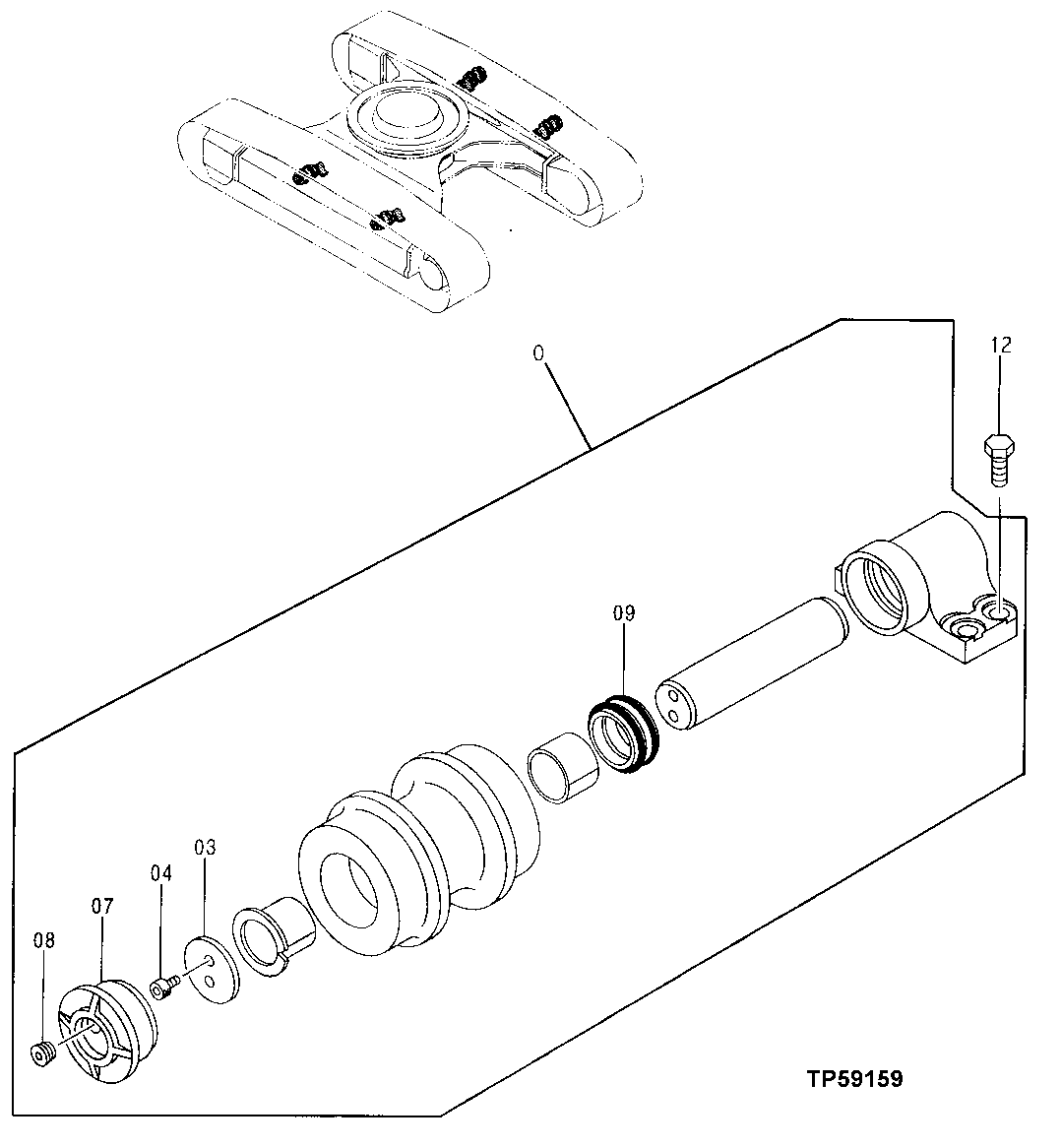

Запчасти John Deere 30LC/370 12 - Upper Roller 0130 Track Systems

0

AT314420

Carrier Roller

(SUB FOR AT250248, 4S00520 OR 9191054)

4шт.

T210828

Bushing

(ROLLER BUSHING)

1шт.

3

T210827

Thrust Washer

(SUB FOR AT131375 OR 4282842)

1шт.

4

AT180006

Screw

(SUB FOR AT131372 OR M351018)

2шт.

7

Cover

( 3070078 NOT AVAILABLE FOR SERVICE) (SUB FOR AT213764)

1шт.

8

AT180007

Fitting Plug

(SUB FOR TH100434)( 94-2011 N OT USED FOR THIS APPLICATION)

1шт.

9

AT180008

Seal

(SUB FOR AT213828 OR 4317584)

1шт.

12

19M7488

Cap Screw

M16 X 40

16шт.
