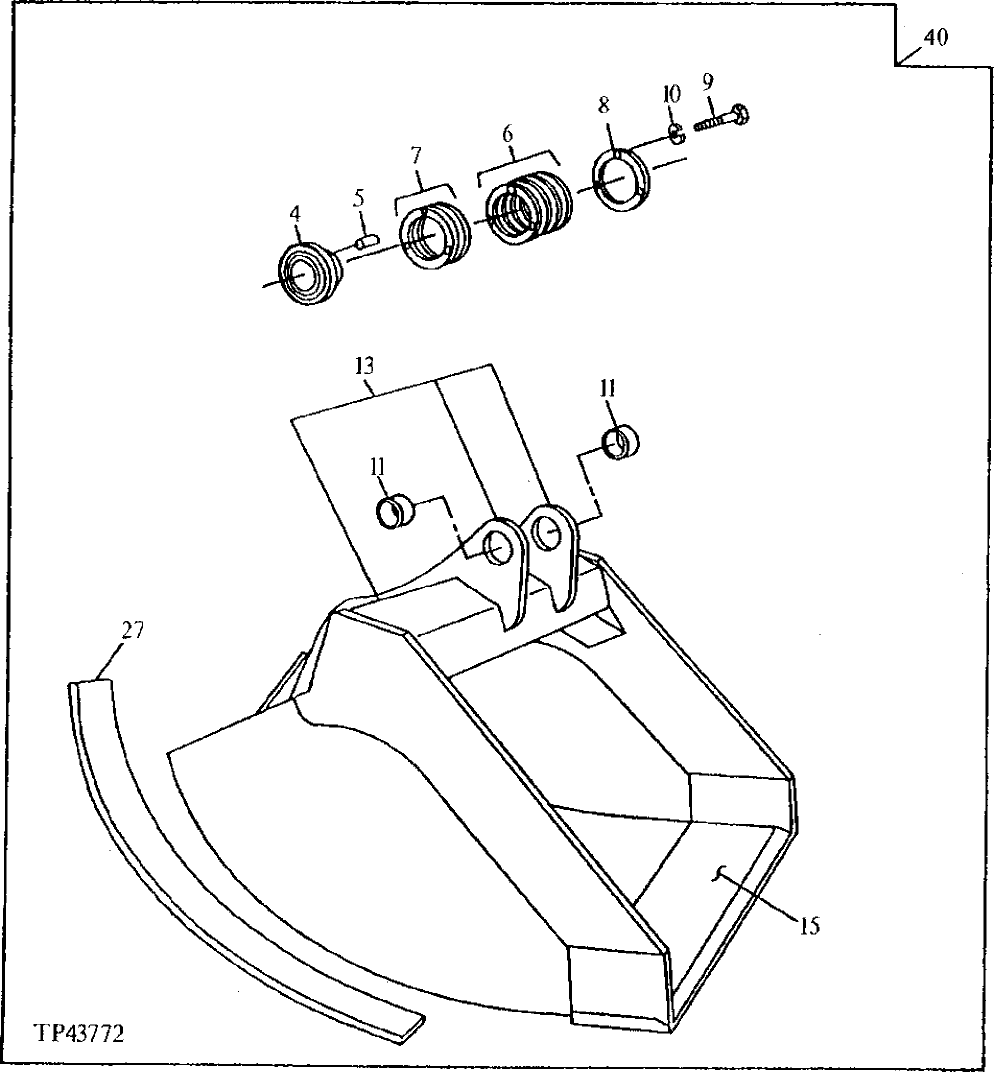

Запчасти John Deere 30LC/370 228 - Bucket (Ditch Cleaning) (72in.) 3302 BUCKETS, TEETH, SHANKS AND SIDECUTTERS

4

4143522

Bushing

(SUB FOR TH103234)

1шт.

5

4179110

Pin

(SUB FOR TH103520)

1шт.

6

4143524

Washer

(SUB FOR TH103235)(1.0 MM)

6шт.

7

4143525

Shim

(SUB FOR TH103236)(0.5 MM)

2шт.

8

TH103237

Plate

1шт.

9

19H2706

Cap Screw

5/8" X 2"

3шт.

10

12H294

Lock Washer

5/8"

3шт.

11

Plate

( TH103198 NLA)

2шт.

13

C610778

Pivot

(F) (BUCKET EAR BLANK ASSEMBLY)

1шт.

15

Cutting Edge

(CUT TO LENGTH FROM AT131089 BULK MATERIAL)

1шт.

27

300292

Bar

(F) (WEAR STRIP)

4шт.

40

Excavator Bucket

( AT160750 NLA) (72 INCH - 1.66 CUBIC YARD)

1шт.
