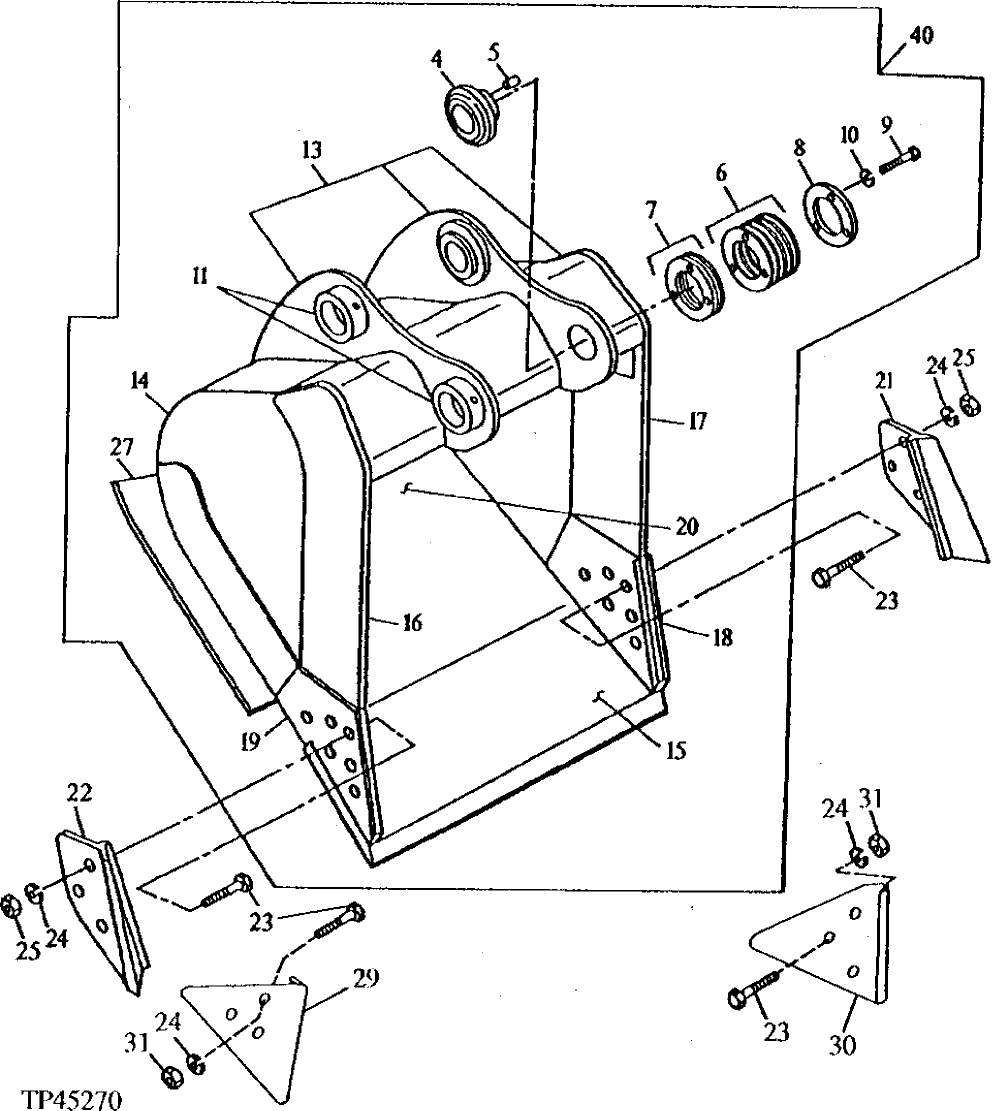

Запчасти John Deere 30LC/370 227 - Bucket (Severe Duty Plate Lip) (Also Order Bucket Tooth Assemblies) 3302 BUCKETS, TEETH, SHANKS AND SIDECUTTERS

4

4143522

Bushing

(SUB FOR TH103234)

1шт.

5

4179110

Pin

(SUB FOR TH103520)

1шт.

6

4143524

Washer

(SUB FOR TH103235)(1 MM)

6шт.

7

4143525

Shim

(SUB FOR TH103236)(.5 MM)

2шт.

8

TH103237

Plate

1шт.

9

19H2706

Cap Screw

5/8" X 2"

3шт.

10

12H294

Lock Washer

5/8"

3шт.

11

Plate

( TH103198 NLA)

2шт.

13

C606071

Pivot

(F) (BUCKET EAR BLANK ASSEMBLY)

1шт.

14

305443

Plate

(F) (RIGHT AND LEFT SIDE)

2шт.

15

AT131096

Dura-Max Cutting Edge

(CUT TO LENGTH)

1шт.

16

301025

Vertical Cutter

(F) (UPPER RIGHT SIDE CUTTER)

1шт.

17

301026

Vertical Cutter

(F) (UPPER LEFT SIDE CUTTER)

1шт.

18

305445

Vertical Cutter

(F) (LEFT SIDE CUTTER INSERT)

1шт.

19

305444

Vertical Cutter

(F) (RIGHT SIDE CUTTER INSERT)

1шт.

20

605585

Moldboard

(F) (42 INCH)

1шт.

605586

Moldboard

(F) (48 INCH)

1шт.

21

Cutting Edge

(K) (42 OR 48 INCH BUCKET)

1шт.

Cutting Edge

(K2) (30 OR 36 INCH BUCKET)

1шт.

22

Cutting Edge

(K) (42 OR 48 INCH BUCKET)

1шт.

Cutting Edge

(K2) (30 OR 36 INCH BUCKET)

1шт.

23

09H1772

Bolt

(K) 7/8" X 3-1/2" (K3) (42 OR 48 INCH BUCKET)

6шт.

09H1771

Bolt

7/8" X 3" (K2) (K4) (30 OR 36 INCH BUCKET)

6шт.

24

12H245

Lock Washer

(K) 7/8" (K2) (K3) (K4)

6шт.

25

14H1077

Nut

(K) 7/8" (K2)

6шт.

27

605591

Bar

(F) (DOUBLE BOTTOM WEA R BAR - 42 INCH BUCKET)

1шт.

605592

Bar

(F) (DOUBLE BOTTOM WEA R BAR - 48 INCH BUCKET)

1шт.

29

Shroud

(WEAR SHROUD) (K3) (K4)

1шт.

30

Shroud

(WEAR SHROUD) (K3) (K4)

1шт.

31

14H1044

Nut

7/8" (K3) (K4)

6шт.

40

Excavator Bucket

( AT167301 NLA) (30 INCH - 1.26 CUBIC YARD) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE)

1шт.

Excavator Bucket

( AT167302 NLA) (36 INCH - 1.56 CUBIC YARD) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE)

1шт.

Excavator Bucket

( AT163669 NLA) (42 INCH - 1.85 CUBIC YARD) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE)

1шт.

Excavator Bucket

( AT163670 NLA) (48 INCH - 2.15 CUBIC YARD) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE)

1шт.
