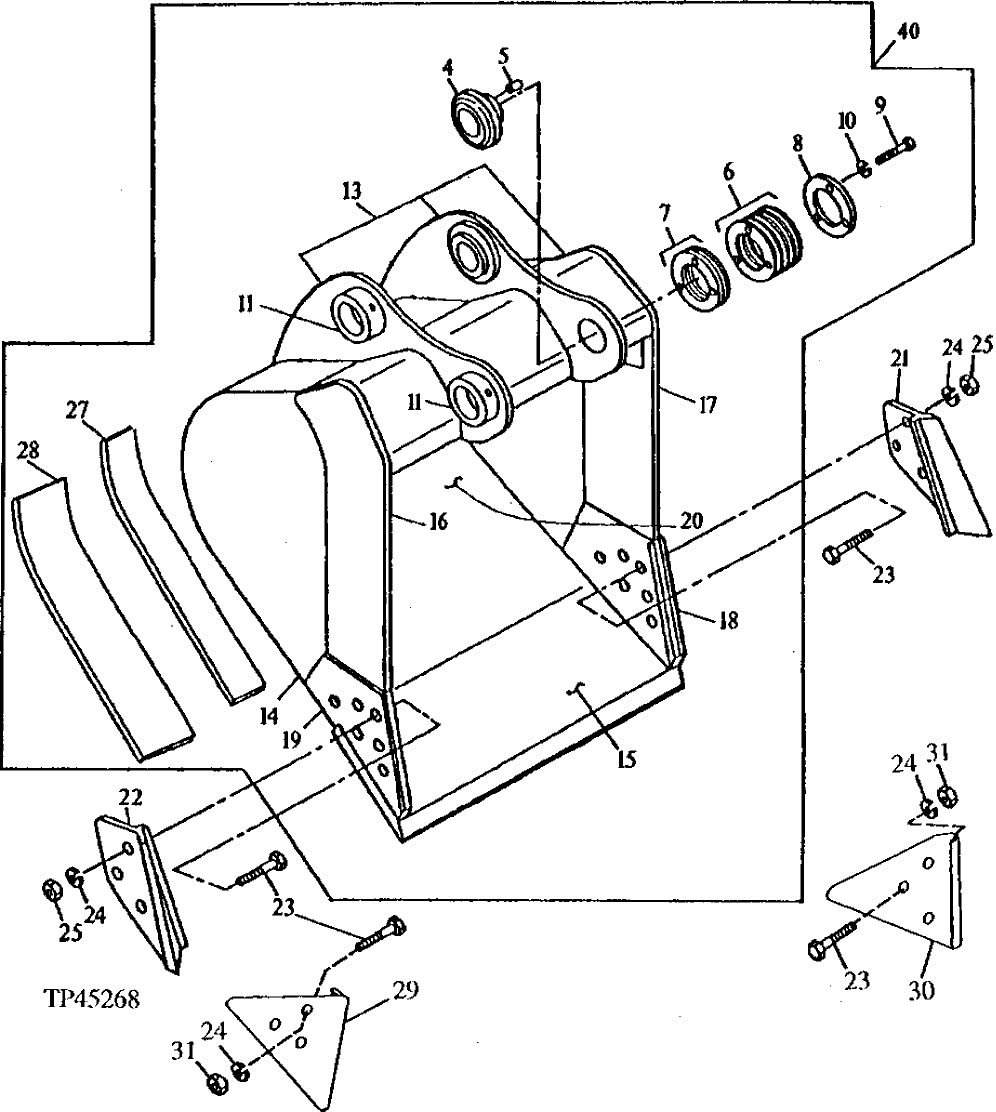

Запчасти John Deere 30LC/370 223 - Bucket (Heavy Duty High Capacity) (Also Order Bucket Tooth Assemblies) 3302 BUCKETS, TEETH, SHANKS AND SIDECUTTERS

21

Cutting Edge

(K) (SUB AT131085)

1шт.

22

Cutting Edge

(K) (SUB AT131085)

1шт.

23

09H1771

Bolt

(K) 7/8" X 3" (K2)

6шт.

24

12H245

Lock Washer

(K) 7/8" (K2)

6шт.

25

14H1077

Nut

(K) 7/8"

6шт.

27

300291

Bar

(F) (INNER WEAR - 36 INCH OR 54 INCH BUCKET)

2шт.

301024

Bar

(F) (INNER WEAR - 42 INCH OR 48 INCH BUCKET)

2шт.

28

304559

Bar

(F) (OUTER WEAR - 36 INCH OR 54 INCH BUCKET)

2шт.

304579

Bar

(F) (OUTER WEAR - 42 INCH OR 48 INCH BUCKET)

2шт.

29

Shroud

(WEAR SHROUD) (SUB AT167876 (K2))

1шт.

30

Shroud

(WEAR SHROUD) (SUB AT167876 (K2))

1шт.

31

14H1044

Nut

7/8" (K2)

6шт.

40

Excavator Bucket

(SUB AT332731)( AT163662 NLA) (30 INCH - 1.26 CUBIC YARD) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE)

1шт.

Excavator Bucket

(SUB AT332732)( AT167398 NLA) (36 INCH - 1.56 CUBIC YARD) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE)

1шт.

Excavator Bucket

(SUB AT332733)( AT163664 NLA) (42 INCH - 1.85 CUBIC YARD) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE)

1шт.

Excavator Bucket

(SUB AT332734)( AT163665 NLA) (48 INCH - 2.15 CUBIC YARD) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE)

1шт.

Excavator Bucket

(SUB AT332735)( AT167299 NLA) (54 INCH - 2.45 CUBIC YARD) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE)

1шт.
