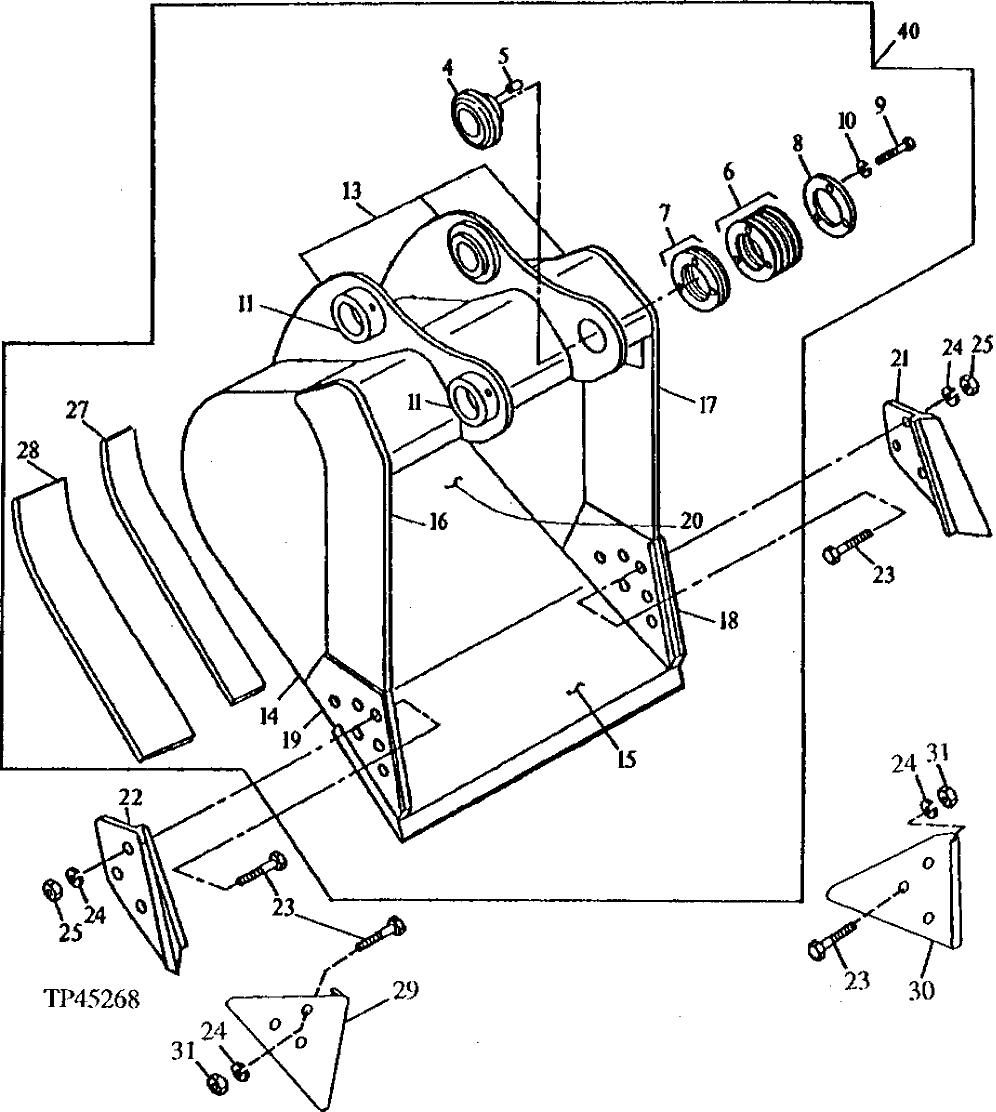

Запчасти John Deere 30LC/370 218 - Bucket (Heavy Duty High Capacity) (Also Order Bucket Tooth Assemblies) 3302 BUCKETS, TEETH, SHANKS AND SIDECUTTERS

4

4143522

Bushing

(SUB FOR TH103234)

1шт.

5

4179110

Pin

(SUB FOR TH103520)

1шт.

6

4143524

Washer

(SUB FOR TH103235)(1 MM)

6шт.

7

4143525

Shim

(SUB FOR TH103236)(.5 MM)

2шт.

8

TH103237

Plate

1шт.

9

19H2706

Cap Screw

5/8" X 2"

3шт.

10

12H294

Lock Washer

5/8"

3шт.

11

Plate

( TH103198 NLA)

2шт.

13

C606071

Pivot

(F) (BUCKET EAR BLANK ASSEMBLY)

1шт.

14

306995

Plate

(F) (RIGHT AND LEFT SIDE - 36 INCH AND 54 INCH BUCKETS)

2шт.

304578

Plate

(F) (RIGHT AND LEFT SIDE - 42 INCH AND 48 INCH BUCKETS)

2шт.

15

AT131097

Dura-Max Cutting Edge

(CUT TO LENGTH)

1шт.

16

300283

Vertical Cutter

(F) (UPPER RIGHT SIDE CUTTER - 36 INCH OR 54 INCH BUCKET)

1шт.

301025

Vertical Cutter

(F) (UPPER RIGHT SIDE CUTTER - 42 INCH OR 48 INCH BUCKET)

1шт.

17

300284

Vertical Cutter

(F) (UPPER LEFT SIDE CUTTER - 36 INCH OR 54 INCH BUCKET)

1шт.

301026

Vertical Cutter

(F) (UPPER LEFT SIDE CUTTER - 42 INCH OR 48 INCH BUCKET)

1шт.

18

304568

Vertical Cutter

(F) (LEFT SIDE CUTTER INSERT - 36 INCH OR 54 INCH BUCKET)

1шт.

304577

Vertical Cutter

(F) (LEFT SIDE CUTTER INSERT - 42 INCH OR 48 INCH BUCKET)

1шт.

19

304567

Vertical Cutter

(F) (RIGHT SIDE CUTTER INSER T - 36 INCH OR 54 INCH BUCKET)

1шт.

304576

Vertical Cutter

(F) (RIGHT SIDE CUTTER INSER T - 42 INCH OR 48 INCH BUCKET)

1шт.
