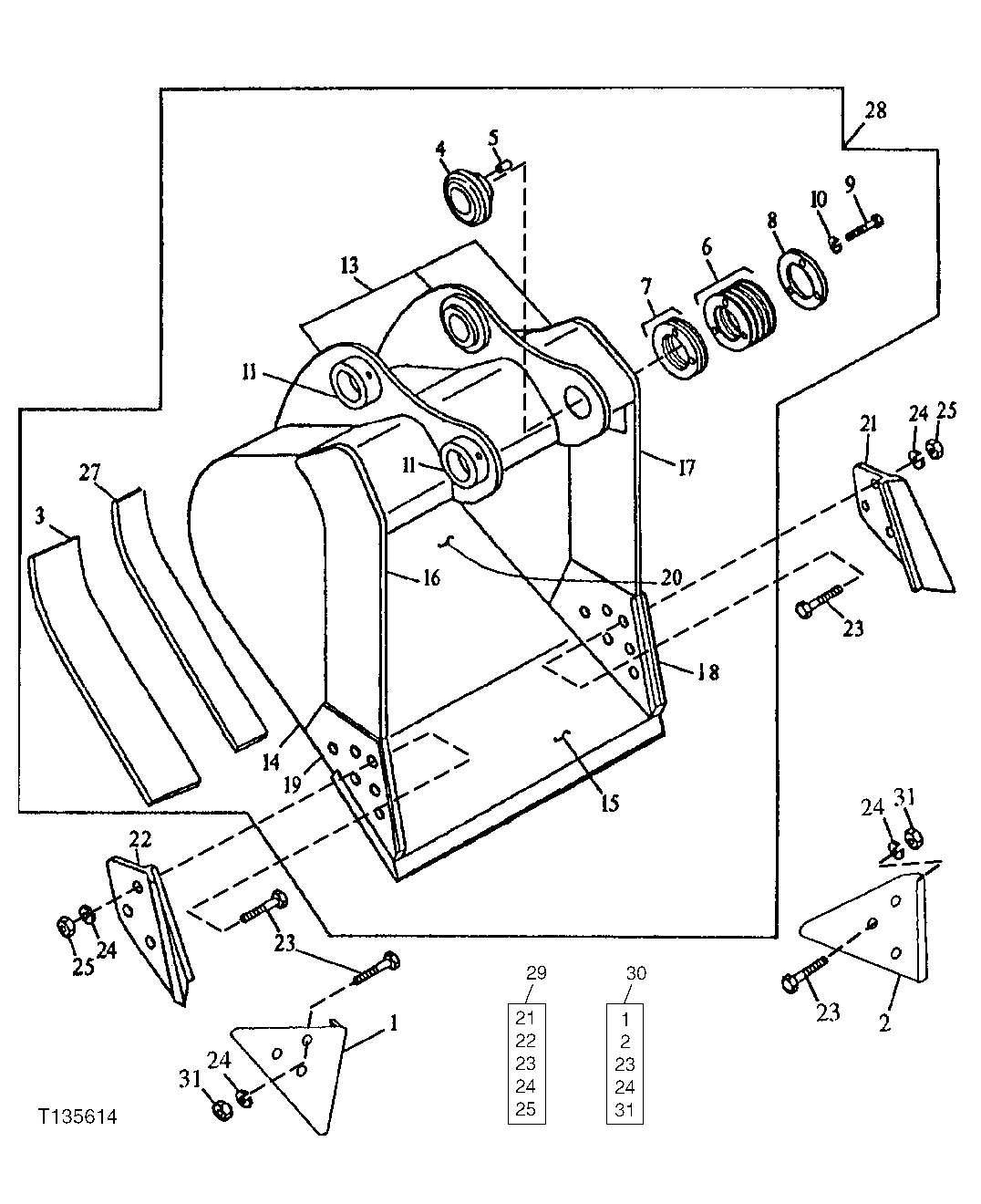

Запчасти John Deere 30LC/370 215 - GENERAL PURPOSE HIGH CAPACITY BUCKET (48 INCH, 54 INCH, 60 INCH) 3302 BUCKETS, TEETH, SHANKS AND SIDECUTTERS
№
Артикул
Название
Примечание
Количество
1
Shroud
(B) (RIGHT EDGE PROTECTOR)
1шт.
2
Shroud
(B) (LEFT EDGE PROTECTOR)
1шт.
3
307048
Bar
(C) (OUTER WEAR)
2шт.
4
4143522
Bushing
(SUB FOR TH103234)
1шт.
5
4179110
Pin
12.012 X 25 mm (0.473" X 63/64") (SUB FOR TH103520)
1шт.
6
4143524
Washer
(SUB FOR TH103235)(1 MM)
6шт.
7
4143525
Shim
(SUB FOR TH103236)(.5 MM)
2шт.
8
TH103237
Plate
1шт.
9
19H2706
Cap Screw
5/8" X 2"
3шт.
10
12H294
Lock Washer
5/8"
3шт.
11
Plate
( TH103198 NLA)
2шт.
13
C606071
Pivot
(C) (BUCKET EAR BLANK ASSEMBLY)
1шт.
14
307047
Plate
(C) (RIGHT AND LEFT SIDE)
2шт.
15
AT131090
Dura-Max Cutting Edge
(CUT TO LENGTH)
1шт.
16
300483
Vertical Cutter
(C) (UPPER RIGHT SIDE CUTTER)
1шт.
17
300484
Vertical Cutter
(C) (UPPER LEFT SIDE CUTTER)
1шт.
18
300482
Vertical Cutter
(C) (LEFT SIDE CUTTER INSERT)
1шт.
19
300481
Vertical Cutter
(C) (RIGHT SIDE CUTTER INSERT)
1шт.
304567
Vertical Cutter
(C) (RIGHT SIDE CUTTER INSERT)
1шт.
600915
Moldboard
(C) (54 INCH)
1шт.
600916
Moldboard
(C) (60 INCH)
1шт.
21
Cutting Edge
(A) (LEFT HAND SIDE CUTTER)
1шт.
22
Cutting Edge
(A) (RIGHT HAND SIDE CUTTER)
1шт.
23
09H1771
Bolt
(A) (B) 7/8" X 3"
6шт.
24
12H245
Lock Washer
(A) (B) 7/8"
6шт.
25
14H1077
Nut
(A) 7/8"
6шт.
28
Excavator Bucket
(SUB AT332724)( AT167293 NLA) (48 INCH - 2.15 CUBIC YARD) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE)
1шт.
Excavator Bucket
(SUB AT332725)( AT167294 NLA) (54 INCH - 2.45 CUBIC YARD) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE)
1шт.
Excavator Bucket
(SUB AT332726)( AT167295 NLA) (60 INCH - 2.74 CUBIC YARD) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE)
1шт.
29
Kit
( AT131085 NLA) (SIDE CUTTER KIT) (I NCLUDES PARTS MARKED (A)) WHOLEGOODS
1шт.
30
Kit
( AT167876 NLA) (EDGE PROTECTOR) (IN CLUDES PARTS MARKED (B)) WHOLEGOODS
1шт.
31
14H1044
Nut
(B) 7/8"
6шт.
