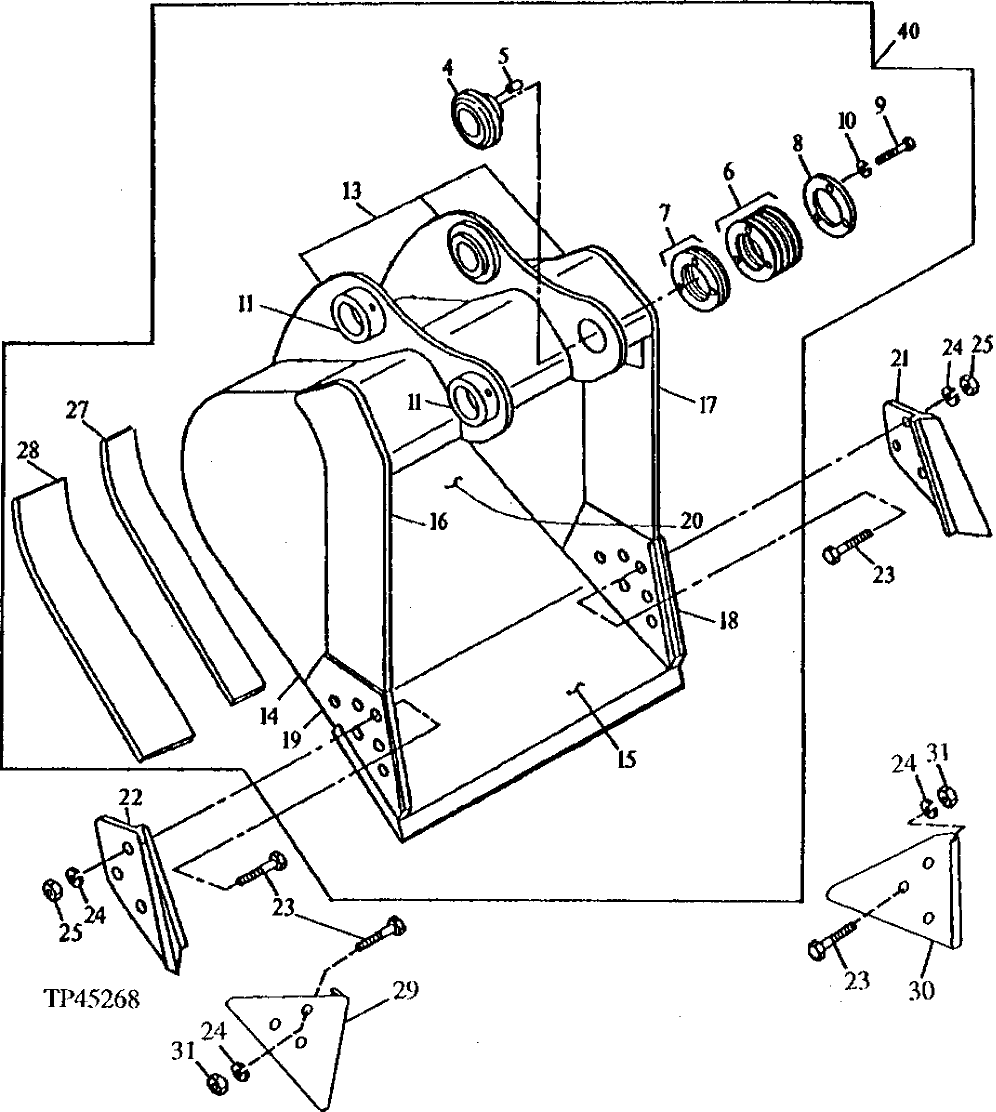

Запчасти John Deere 30LC/370 214 - General Purpose High Capacity Bucket 3302 BUCKETS, TEETH, SHANKS AND SIDECUTTERS

4

4143522

Bushing

(SUB FOR TH103234)

1шт.

5

4179110

Pin

(SUB FOR TH103520)(USE 1 WITH 30 INCH OR 3 6 INCH BUCKET) (USE 2 WITH 42 INCH BUCKET)

ARшт.

6

4143524

Washer

(SUB FOR TH103235)(1 MM)

6шт.

7

4143525

Shim

(SUB FOR TH103236)(.5 MM)

2шт.

8

TH103237

Plate

1шт.

9

19H2706

Cap Screw

5/8" X 2"

3шт.

10

12H294

Lock Washer

5/8"

3шт.

11

Plate

2шт.

13

C606071

Pivot

(F) (BUCKET EAR BLANK ASSEMBLY)

1шт.

14

304578

Plate

(F) (RIGHT AND LEFT SIDE)

2шт.

15

AT131097

Dura-Max Cutting Edge

(CUT TO LENGTH)

1шт.

16

300642

Vertical Cutter

(F) (UPPER RIGHT SIDE CUTTER)

1шт.

17

300643

Vertical Cutter

(F) (UPPER LEFT SIDE CUTTER)

1шт.

18

304568

Vertical Cutter

(F) (LEFT SIDE CUTTER INSERT)

1шт.

19

304567

Vertical Cutter

(F) (RIGHT SIDE CUTTER INSERT)

1шт.

20

600361

Moldboard

(F) (30 INCH)

1шт.

600362

Moldboard

(F) (36 INCH)

1шт.

600363

Moldboard

(F) (42 INCH)

1шт.

21

Cutting Edge

(K) (SUB AT131085)

1шт.

22

Cutting Edge

(K) (SUB AT131085)

1шт.

23

09H1771

Bolt

(K) 7/8" X 3" (K2)

6шт.

24

12H245

Lock Washer

(K) 7/8" (K2)

6шт.

25

14H1077

Nut

(K) 7/8"

6шт.

27

300645

Bar

(F) (INNER WEAR)

2шт.

28

307451

Bar

(F) (OUTER WEAR)

2шт.

29

Shroud

(WEAR SHROUD) (SUB AT167876 (K2))

1шт.

30

Shroud

(WEAR SHROUD) (SUB AT167876 (K2))

1шт.

31

14H1044

Nut

7/8" (K2)

6шт.

40

Excavator Bucket

( AT163656 NLA) (30 INCH - 1.26 CUBIC YARD) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE)

1шт.

Excavator Bucket

( AT163657 NLA) (36 INCH - 1.56 CUBIC YARD) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE)

1шт.

Excavator Bucket

( AT163658 NLA) (42 INCH - 1.85 CUBIC YARD) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE)

1шт.

End Bit

( AT131085 NLA)

1шт.
