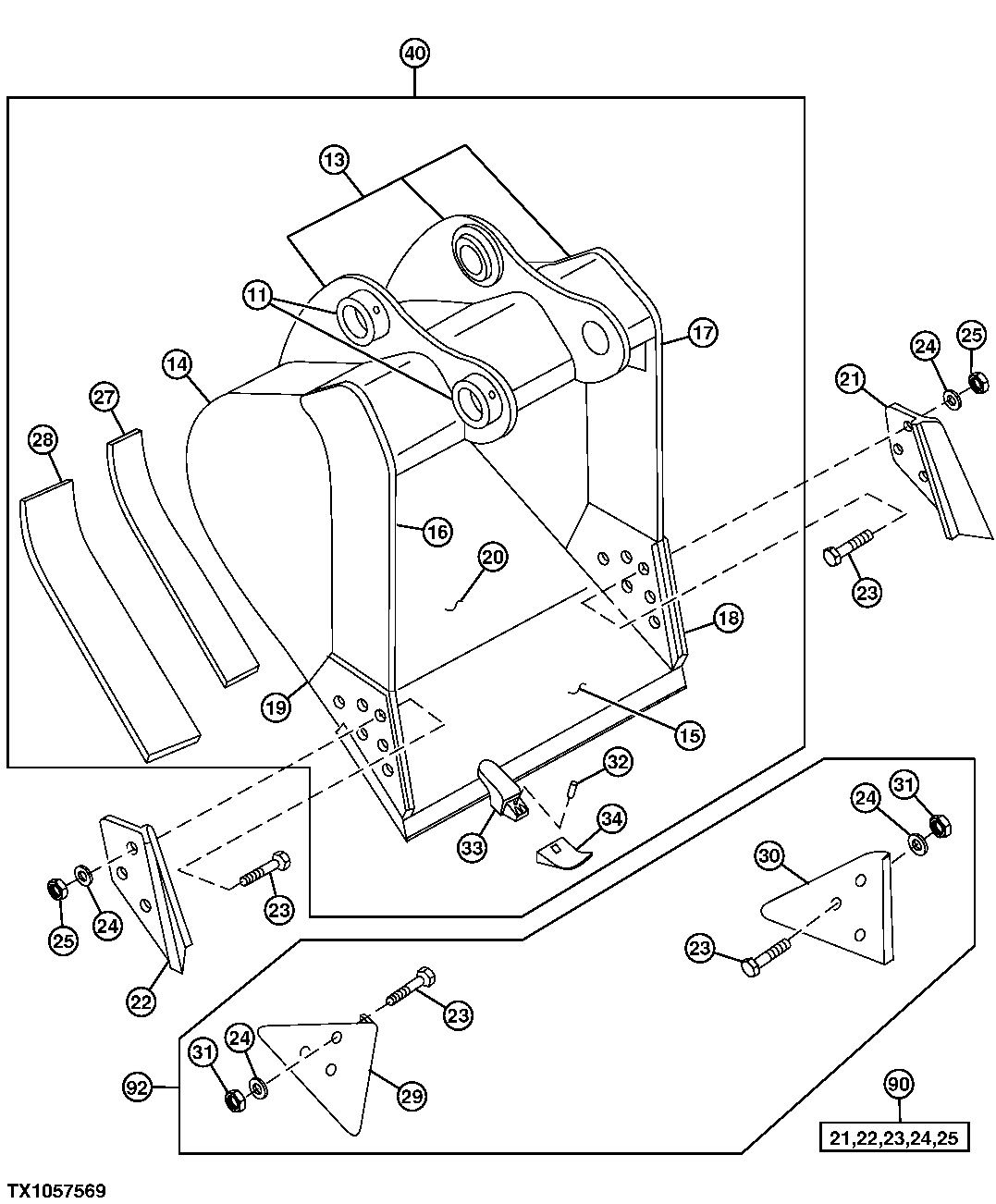

Запчасти John Deere 30LC/370 213 - GENERAL PURPOSE BUCKET (48, 54, 60 INCH) 3302 BUCKETS, TEETH, SHANKS AND SIDECUTTERS

11

Plate

( TH103198 NLA)

2шт.

13

C606071

Pivot

(F) (BUCKET EAR BLANK ASSEMBLY)

1шт.

14

307047

Plate

(F) (RH) (LH)

2шт.

15

AT131090

Dura-Max Cutting Edge

(CUT TO LENGTH)

1шт.

16

300483

Vertical Cutter

(F) (SIDE CUTTER) (UPPER RH)

1шт.

17

300484

Vertical Cutter

(F) (SIDE CUTTER) (UPPER LH)

1шт.

18

300482

Vertical Cutter

(F) (CUTTER INSERT) (LH)

1шт.

19

300481

Vertical Cutter

(F) (CUTTER INSERT) (RH)

1шт.

20

600292

Moldboard

(F) (48 INCH BUCKET)

1шт.

600915

Moldboard

(F) (54 INCH BUCKET)

1шт.

600916

Moldboard

(F) (60 INCH BUCKET)

1шт.

21

Cutting Edge

(SIDE CUTTER) (LH)

1шт.

22

Cutting Edge

(SIDE CUTTER) (RH)

1шт.

23

09H1770

Bolt

7/8" X 2-1/2"

6шт.

24

12H245

Lock Washer

7/8"

6шт.

25

14H1077

Nut

7/8"

6шт.

27

300479

Bar

(F) (INNER WEAR)

2шт.

28

307048

Bar

(F) (OUTER WEAR)

2шт.

29

Shroud

(EDGE PROTECTOR) (RH)

1шт.

30

Shroud

(EDGE PROTECTOR) (LH)

1шт.

31

14H1044

Nut

7/8"

6шт.

32

TP400HD

Pin

ARшт.

33

T802X400

Bucket Tooth Adapter

ARшт.

34

TF400

Tooth

ARшт.

40

Excavator Bucket

(SUB FOR AT163659)( AT332721 NLA) (48 IN CH - 2.03 CUBIC YARD) (REQUIRES 6 TEETH)

1шт.

Excavator Bucket

(SUB FOR AT163660)( AT332722 NLA) (54 IN CH - 2.30 CUBIC YARD) (REQUIRES 7 TEETH)

1шт.

Excavator Bucket

(SUB FOR AT163661)( AT332723 NLA) (60 IN CH - 2.59 CUBIC YARD) (REQUIRES 7 TEETH)

1шт.

90

End Bit

( AT131080 NLA) (SIDE CUTTER KIT)

1шт.

92

Kit

( AT167874 NLA) (EDGE PROTECTOR KIT)

1шт.
