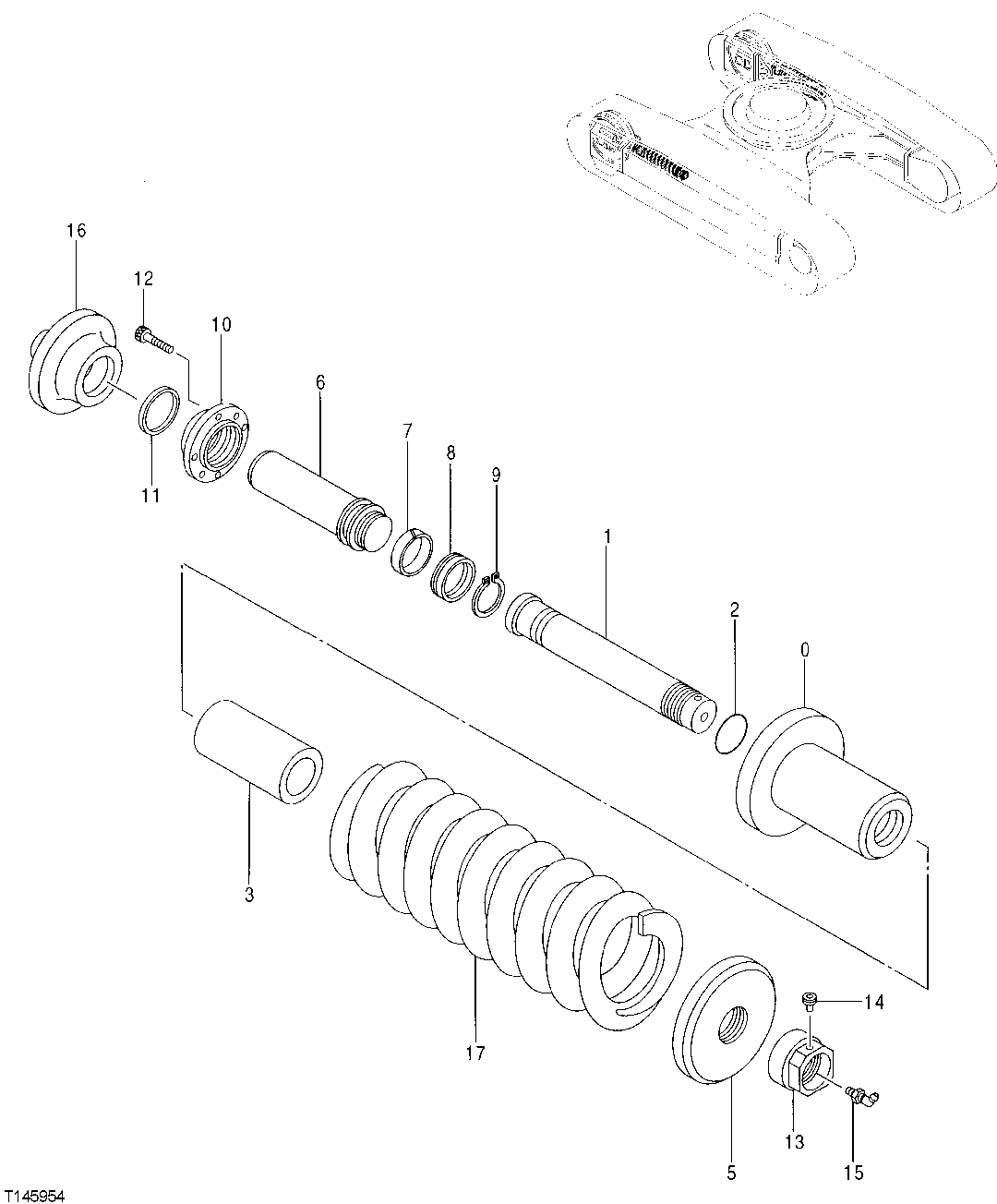

Запчасти John Deere 30LC/370 9 - Adjuster 0130 Track Systems

0

2040778

Hydraulic Cylinder Barrel

(SUB FOR AT219599)

1шт.

1

3078695

Rod

(SUB FOR AT219627)

1шт.

2

4140481

O-Ring

(SUB FOR AT217955)

1шт.

3

4382972

Spacer

(SUB FOR AT250037)

1шт.

5

3078697

Washer

(SUB FOR AT219629)

1шт.

6

2040779

Hydraulic Cylinder Rod

(SUB FOR AT219600)

1шт.

7

TH111224

Wear Ring

1шт.

8

4137866

Packing

(SUB FOR TH103137)

1шт.

9

40M7065

Snap Ring

1шт.

10

3053246

Flange

(SUB FOR AT200975)

1шт.

11

AT201002

Seal

1шт.

12

M341022

Screw

(SUB FOR TH105695)

4шт.

13

3075543

Nut

(SUB FOR AT217950)

1шт.

14

4248106

Fitting Plug

(SUB FOR AT154185)

1шт.

15

4255055

Valve

(SUB FOR AT154223)

1шт.

16

3078698

Holder

(SUB FOR AT219630)

1шт.

17

T211395

Compression Spring

(SUB FOR AT219628, 3078696 OR 3098287)

1шт.

3118594

Spring

(FOR HARSH ENVIRONMENT)

1шт.
