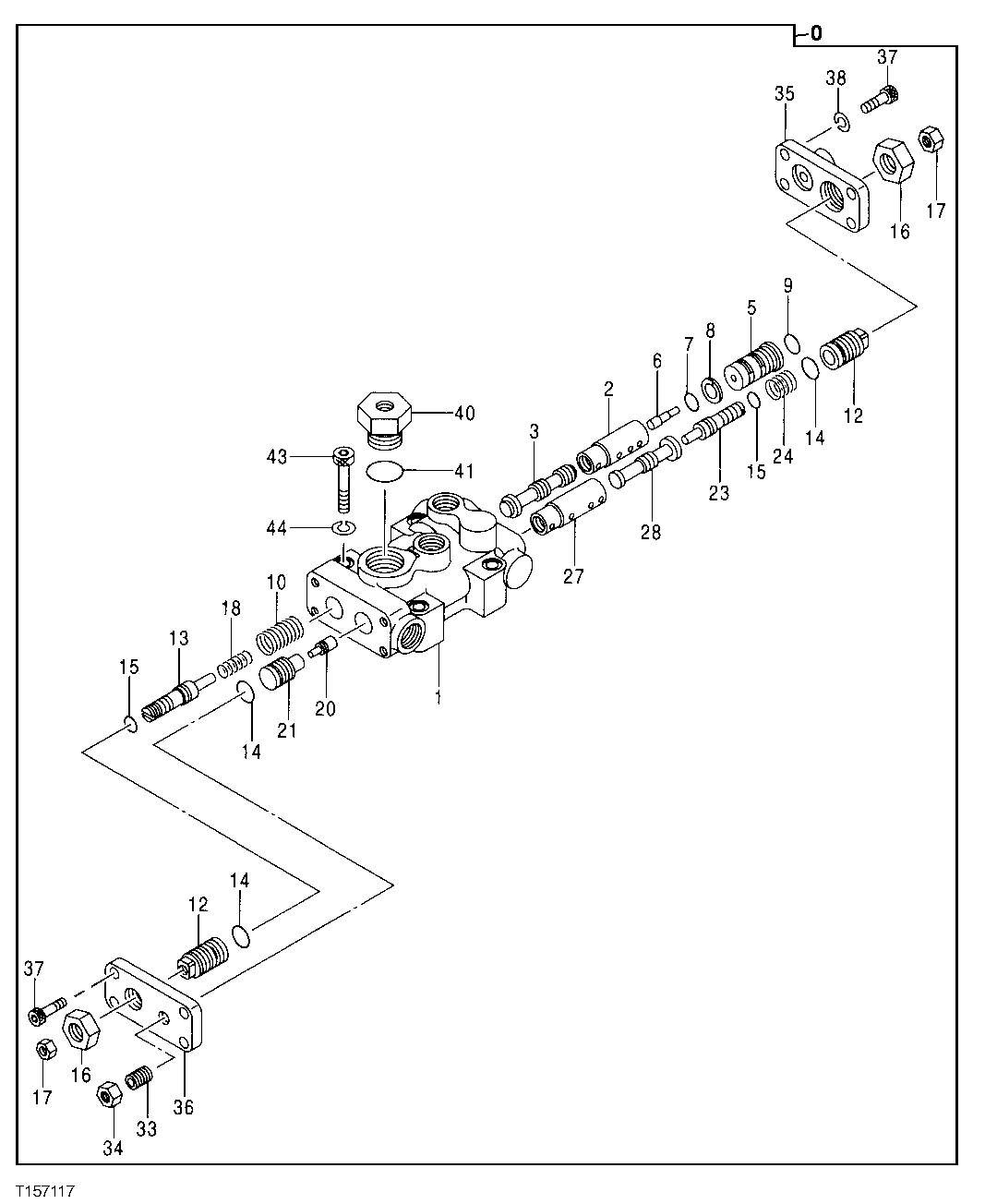

Запчасти John Deere 30LC/370 204 - PUMP REGULATOR 2160 Vehicle Hydraulics

0

9169053

Regulator

(SUB FOR AT250258)

1шт.

1

Housing

1шт.

2

4179155

Sleeve

(SUB FOR TH109892)

1шт.

3

4179156

Spool

(SUB FOR TH109893)

1шт.

5

4367385

Piston

(SUB FOR AT214037)

1шт.

6

4367500

Piston

(SUB FOR AT214044)

1шт.

7

TH102560

O-Ring

15.800 X 2.400 mm (0.622" X 3/32")

1шт.

8

4085607

Back-Up Ring

(SUB FOR TH102562)

1шт.

9

CH11560

Packing

1шт.

10

4394500

Spring

(SUB FOR AT250101)

1шт.

12

4179161

Stop

(SUB FOR TH109898)

2шт.

13

4368619

Stop

(SUB FOR AT214045)

1шт.

14

4342843

O-Ring

15.800 X 2.400 mm (0.622" X 3/32") (SUB FOR AT213892)

3шт.

15

4342841

O-Ring

8.800 X 1.900 mm (0.346" X 0.075") (SUB FOR AT213891)

2шт.

16

4068898

Nut

(SUB FOR TH102567)

2шт.

17

14M7273

Nut

M8

2шт.

18

4350938

Compression Spring

(SUB FOR AT213952)

1шт.

20

4179171

Piston

(SUB FOR TH109911)

1шт.

21

4179170

Cylinder

(SUB FOR TH109910)

1шт.

23

4347107

Stop

(SUB FOR AT213917)

1шт.

24

4386506

Spring

(SUB FOR AT250058)

1шт.

27

4346522

Sleeve

(SUB FOR AT213913)

1шт.

28

4346521

Valve Spool

(SUB FOR AT213912)

1шт.

33

22M7098

Set Screw

M10 X 25 (SUB FOR AT201005 OR 4265964)

1шт.

34

14M7274

Nut

M10

1шт.

35

4366657

Valve Cover

(SUB FOR AT219695)

1шт.

36

4433327

Cover

(SUB FOR TH109913)

1шт.

37

19M8446

Screw

M8 X 20

8шт.

38

4514388

Spring Washer

(SUB FOR TH101835)

4шт.

40

4179174

Fitting Plug

(SUB FOR TH109914)

1шт.

41

4342846

O-Ring

28.700 X 3.500 mm (1.130" X 0.13 8") (SUB FOR AT213893 OR 4342846)

1шт.

43

19M8339

Screw

M10 X 55

4шт.

44

12M7135

Lock Washer

10 mm

4шт.
