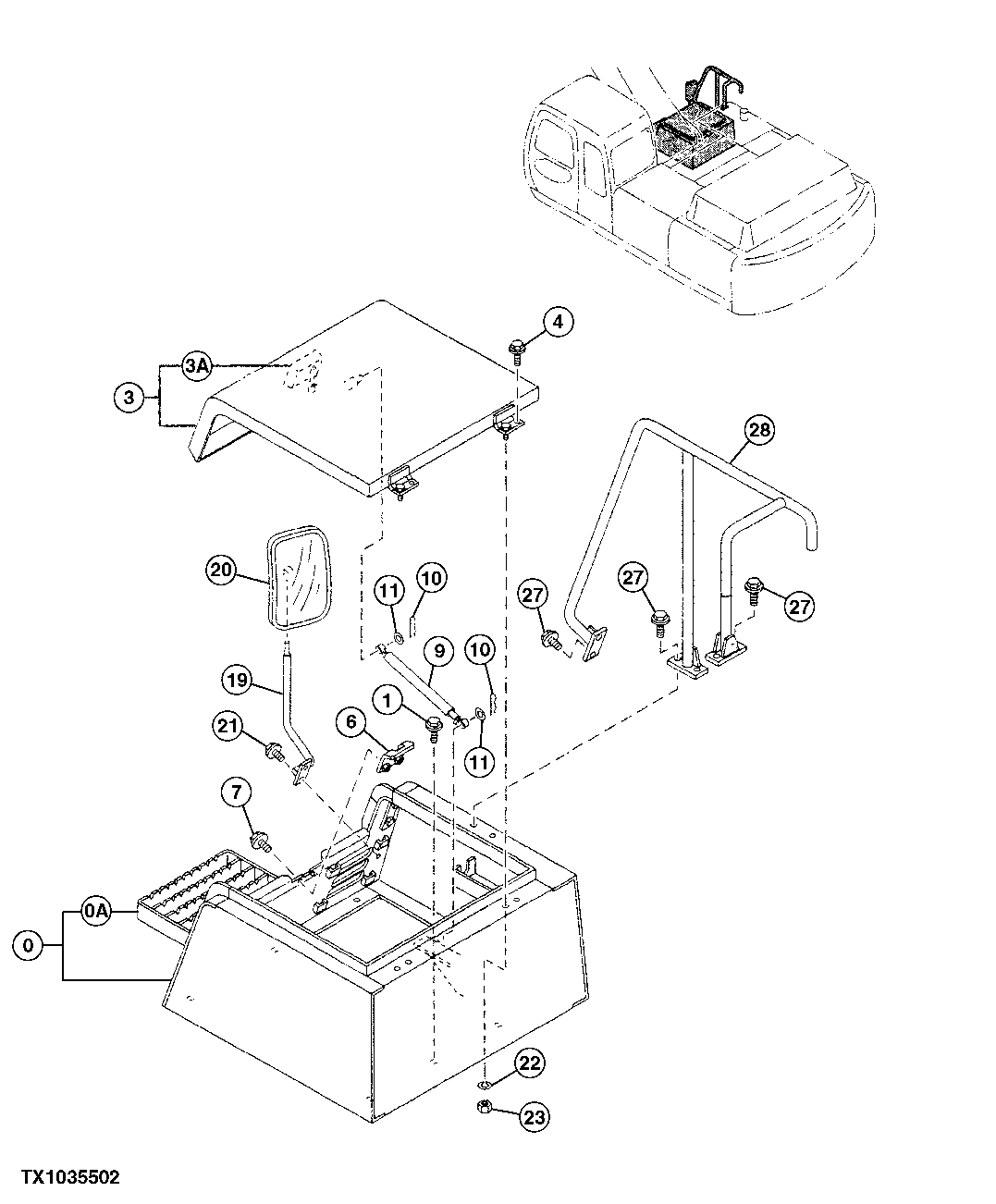

Запчасти John Deere 30LC/370 196 - Tool Box Cover 1910 Hood Or Engine Enclosure

0

6016753

Toolbox

SUB FOR AT250164

1шт.

0A

9748882

Step

1шт.

1

12M7066

Lock Washer

10 mm

6шт.

19M7402

Cap Screw

M10 X 25

6шт.

24M7028

Washer

10.500 X 20 X 2 mm

6шт.

3

6016755J

Cover

SUB FOR AT250165 OR 6016755

1шт.

3A

4363915

Latch

SUB FOR AT215944

1шт.

4

19M8761

Screw

M10 X 22

2шт.

12M7058

Lock Washer

12 mm SUB FOR 12M7067

2шт.

6

9745798

Catch

SUB FOR AT214409

1шт.

7

19M7402

Cap Screw

M10 X 25

2шт.

12M7058

Lock Washer

12 mm SUB FOR 12M7067

2шт.

24M7346

Washer

11 X 20 X 2 mm

2шт.

9

4352457

Cylinder

SUB FOR AT213967

1шт.

10

H132922

Cotter Pin

2шт.

11

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

19

Bracket

SUB AT185901 AND AT185207; AT250239 NO LONGER AVAILABLE

1шт.

8076174

Arm

SUB FOR AT185901

1шт.

Bracket

SUB AT185901 AND AT185207; AT250239 NO LONGER AVAILABLE

1шт.

8076066

Arm

1шт.

20

4317906

Rear View Mirror

TH104119 NO LONGER AVAILABLE

1шт.

4420724

Rear View Mirror

SUB FOR AT185207

1шт.

21

19M7407

Cap Screw

M8 X 25

2шт.

Washer

12M7065 NLA

2шт.

22

12M7066

Lock Washer

10 mm

2шт.

23

14M7274

Nut

M10

2шт.

27

19M8011

Cap Screw

M12 X 30

6шт.

12M7058

Lock Washer

12 mm SUB FOR 12M7067

6шт.

28

7035338J

Handrail

SUB FOR AT250195 OR 7035338

1шт.
