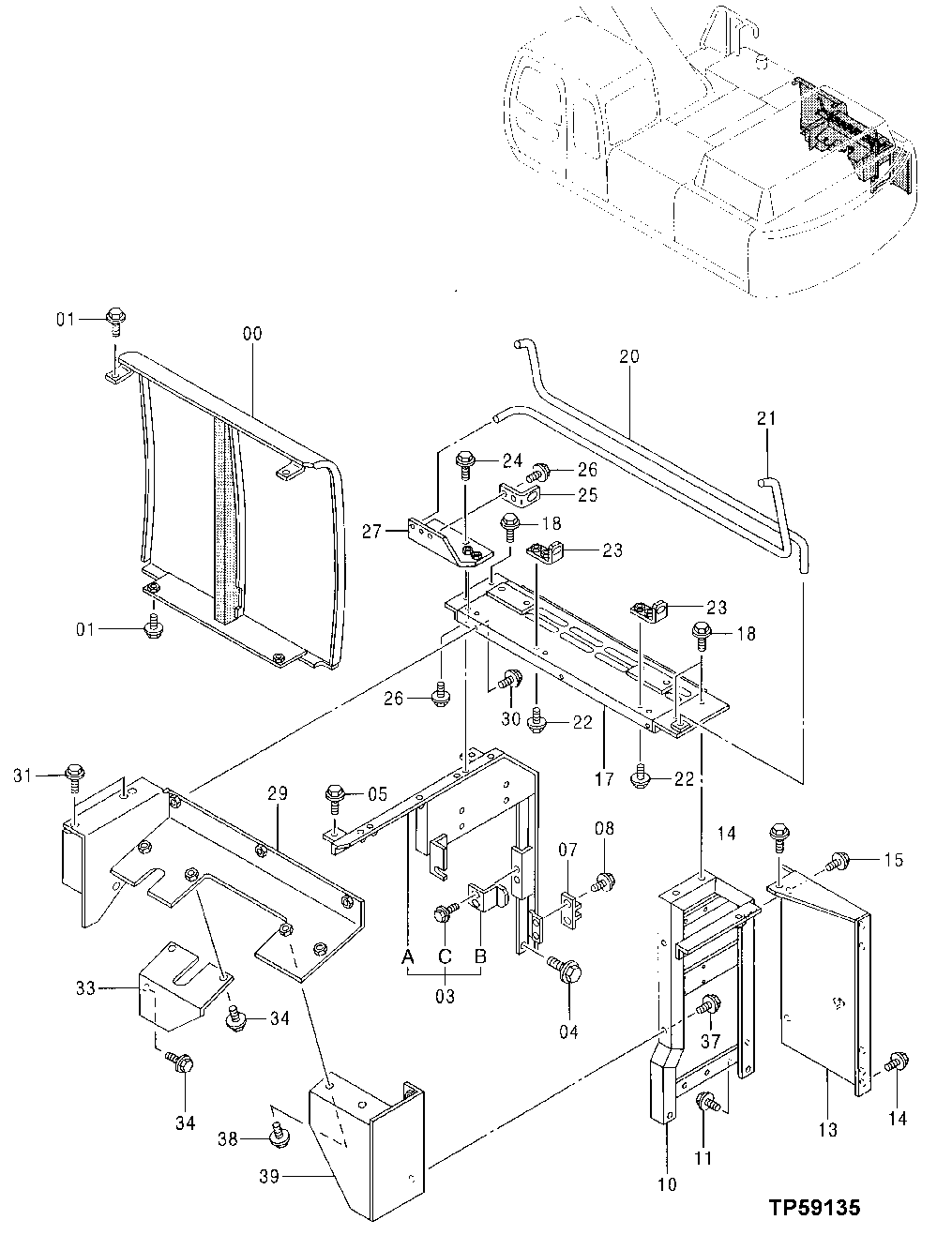

Запчасти John Deere 30LC/370 190 - Hydraulic Pump Compartment Panels 1910 Hood Or Engine Enclosure

0

6016699J

Cover

(SUB FOR AT250163 OR 6016699)

1шт.

1

19M7402

Cap Screw

M10 X 25

4шт.

24M7346

Washer

11 X 20 X 2 mm

4шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

4шт.

3

Support

1шт.

3A

7033279

Support

(SUB FOR AT250179)

1шт.

7036129

Support

(SUB FOR AT185209)

1шт.

7033279

Support

(SUB FOR AT250179)

1шт.

7036129

Support

(SUB FOR AT185209)

1шт.

3B

4257087

Stop

(SUB FOR AT154930)

1шт.

3C

19M7662

Cap Screw

M10 X 30

2шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

2шт.

24M7346

Washer

11 X 20 X 2 mm

2шт.

4

19M7662

Cap Screw

M10 X 30

1шт.

24M7028

Washer

10.500 X 20 X 2 mm

1шт.

12M7066

Lock Washer

10 mm

1шт.

5

19M7662

Cap Screw

M10 X 30

2шт.

24M7346

Washer

11 X 20 X 2 mm

2шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

2шт.

7

4175253

Bracket

(SUB FOR AT318015, AT154915)

1шт.

8

19M7923

Cap Screw

M6 X 12

2шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

2шт.

12M7006

Lock Washer

6 mm

2шт.

10

7034187

Support

(SUB FOR AT250188)

1шт.

11

19M7662

Cap Screw

M10 X 30

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

12M7066

Lock Washer

10 mm

2шт.

13

8069255

Support

(SUB FOR AT250214)

1шт.

14

19M7662

Cap Screw

M10 X 30

2шт.

24M7346

Washer

11 X 20 X 2 mm

2шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

2шт.

15

19M7662

Cap Screw

M10 X 30

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

17

7034183

Cover

(SUB FOR AT250185)

1шт.

18

19M7662

Cap Screw

M10 X 30

3шт.

24M7028

Washer

10.500 X 20 X 2 mm

3шт.

12M7066

Lock Washer

10 mm

3шт.

20

4386543

Torsion Spring

(SUB FOR AT250061)

1шт.
