189 - Cooling Package Side Brace and Top Cover

Запчасти John Deere 30LC/370 189 - Cooling Package Side Brace and Top Cover 1910 Hood Or Engine Enclosure

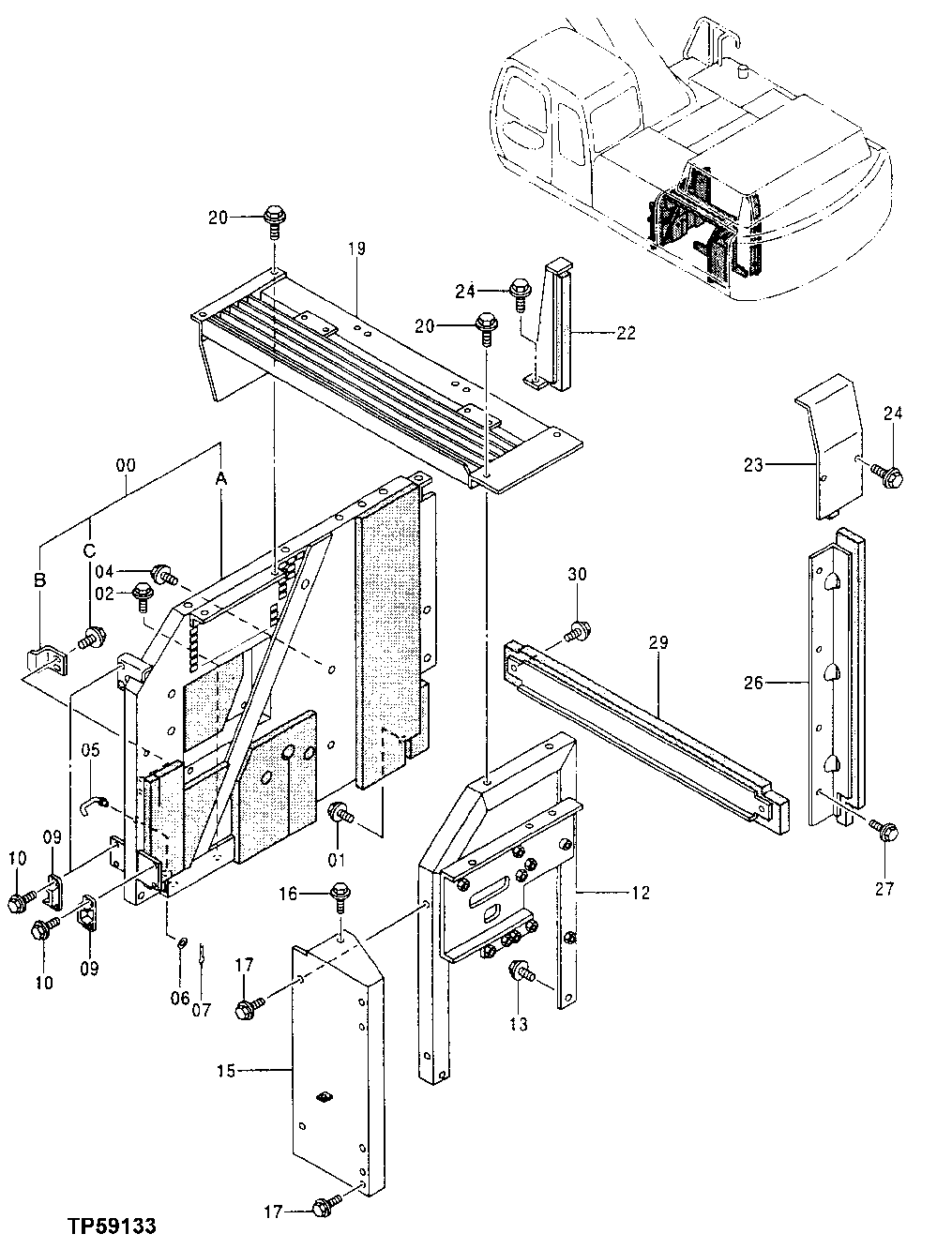

Схема запчастей John Deere 30LC/370 - 189 - Cooling Package Side Brace and Top Cover 1910 Hood Or Engine Enclosure
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

0

Cover

(NOT AVAILABLE FOR SERVICE)

1шт.

0A

6017175

Cover

(SUB FOR AT250166)

1шт.

0B

4257087

Stop

(SUB FOR AT154930)

1шт.

0C

19M7662

Cap Screw

M10 X 30

2шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

2шт.

24M7346

Washer

11 X 20 X 2 mm

2шт.

1

19M7662

Cap Screw

M10 X 30

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

2

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

2шт.

24H1748

Washer

1/2" X 1-1/4" X 0.105"

2шт.

19M7403

Cap Screw

M12 X 35

2шт.

4

19M7872

Cap Screw

M12 X 25

2шт.

24M7047

Washer

13 X 24 X 2.500 mm

2шт.

12H301

Lock Washer

1/2"

2шт.

5

9738313

Bar

(SUB FOR AT155585)

1шт.

6

24M7054

Washer

6.400 X 12 X 1.600 mm

1шт.

7

M800051

Pin

(SUB FOR CH10542)

1шт.

9

4175253

Bracket

(SUB FOR AT318015, AT154915)

3шт.

10

19M7923

Cap Screw

M6 X 12

6шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

6шт.

12M7006

Lock Washer

6 mm

6шт.

12

7034188

Support

(SUB FOR AT250189)

1шт.

13

19M7662

Cap Screw

M10 X 30

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

12M7066

Lock Washer

10 mm

2шт.

15

8069254

Support

(SUB FOR AT250213)

1шт.

16

19M7662

Cap Screw

M10 X 30

1шт.

24M7346

Washer

11 X 20 X 2 mm

1шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

1шт.

17

19M7662

Cap Screw

M10 X 30

3шт.

24M7028

Washer

10.500 X 20 X 2 mm

3шт.

12M7066

Lock Washer

10 mm

3шт.

19

7034184

Cover

(SUB FOR AT250186)

1шт.

20

19M7662

Cap Screw

M10 X 30

4шт.

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

12M7066

Lock Washer

10 mm

4шт.

22

8071337

Cover

(SUB FOR AT250231)

1шт.

23

8071341

Cover

(SUB FOR AT250234)

1шт.

24

19M7402

Cap Screw

M10 X 25

4шт.

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

12M7066

Lock Washer

10 mm

4шт.

26

8071340

Cover

(SUB FOR AT250233)

1шт.

27

19M7402

Cap Screw

M10 X 25

4шт.

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

12M7066

Lock Washer

10 mm

4шт.

29

8071338

Cover

(SUB FOR AT250232)

1шт.

30

19M7662

Cap Screw

M10 X 30

2шт.

24M7346

Washer

11 X 20 X 2 mm

2шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

2шт.
