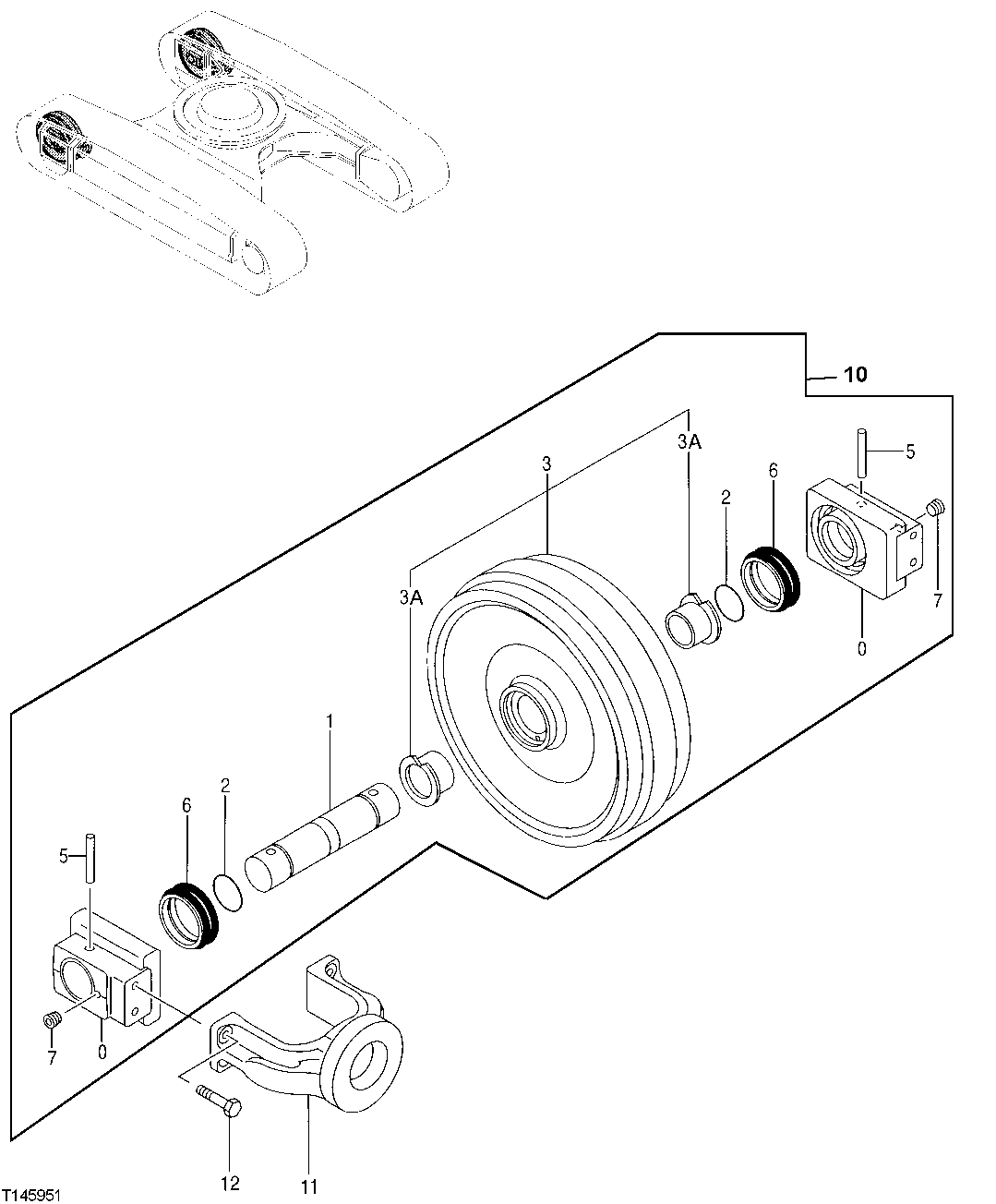

Запчасти John Deere 30LC/370 6 - Front Idler 0130 Track Systems

0

T210831

Bracket

(SUB FOR AT219584 OR 1023376)

2шт.

1

T210832

Shaft

(SUB FOR AT219619 OR 3077237)

1шт.

2

T210833

O-Ring

(SUB FOR CH11573)

2шт.

3

T210834

Roller

(SUB FOR AT250250 OR 9154691)

1шт.

3A

T210836

Bushing

(SUB FOR AT179610 OR 3075766)

2шт.

5

T210837

Pin Fastener

(SUB FOR TH103124 OR 4138084)

2шт.

6

T210838

Seal

(SUB FOR TH111283)

2шт.

7

AT180007

Fitting Plug

(SUB FOR TH100434 OR 94-2011)

2шт.

10

9245616R

Idler

(INCLUDES T210839 ) (SUB FOR AT250450, 91 54690 OR AT314422)(ONE EACH SIDE OF UNIT)

1шт.

11

T210839

Yoke

(SUB FOR AT219585 OR 1023479)

1шт.

12

19M7488

Cap Screw

M16 X 40

4шт.
