Запчасти John Deere 30LC/370 154 - Console Cover 1810 Operator Enclosure

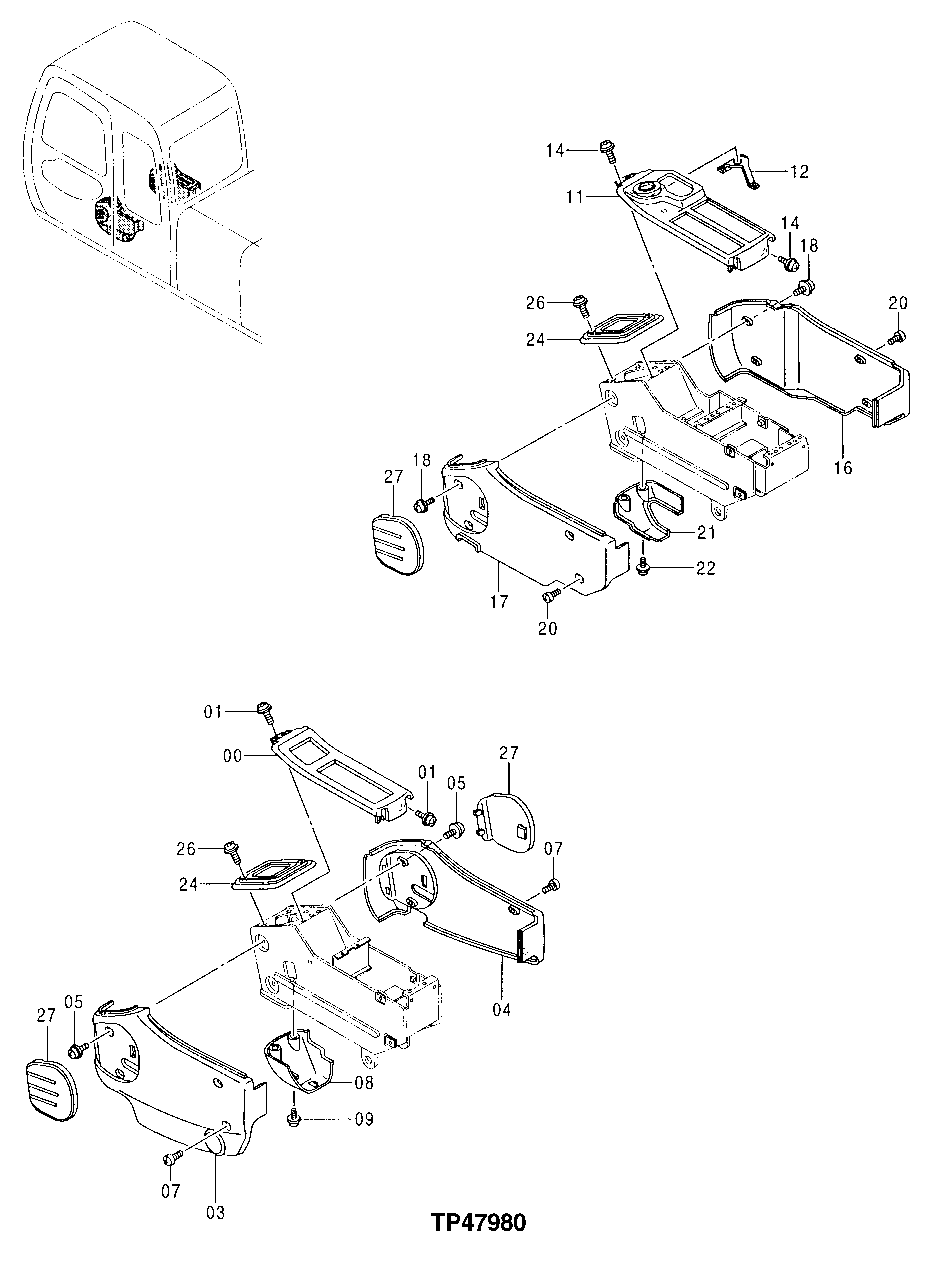

Схема запчастей John Deere 30LC/370 - 154 - Console Cover 1810 Operator Enclosure

Артикул

Название

Примечание

Количество

0

1021354

Cover

(SUB FOR AT213726)

1шт.

1

21M7246

Screw

M6 X 16

4шт.

24M7105

Washer

6 X 12 X 1.600 mm

4шт.

12M7006

Lock Washer

6 mm

4шт.

3

1021345

Cover

(SUB FOR AT213722)

1шт.

4

1021346

Cover

(SUB FOR AT213723)

1шт.

5

21M7246

Screw

M6 X 16

4шт.

24M7105

Washer

6 X 12 X 1.600 mm

4шт.

12M7006

Lock Washer

6 mm

4шт.

7

4361802

Screw

(SUB FOR AT214012)

4шт.

8

3072629

Cover

(SUB FOR AT213779)

1шт.

9

21M7246

Screw

M6 X 16

2шт.

24M7105

Washer

6 X 12 X 1.600 mm

2шт.

12M7006

Lock Washer

6 mm

2шт.

11

5004653

Cover

(SUB FOR AT214324)

1шт.

12

3072716

Bracket

(SUB FOR AT213783)

1шт.

14

21M7246

Screw

M6 X 16

4шт.

24M7105

Washer

6 X 12 X 1.600 mm

4шт.

12M7006

Lock Washer

6 mm

4шт.

16

1021350

Cover

(SUB FOR AT213725)

1шт.

17

1021349

Cover

(SUB FOR AT213724)

1шт.

18

21M7246

Screw

M6 X 16

4шт.

24M7105

Washer

6 X 12 X 1.600 mm

4шт.

12M7006

Lock Washer

6 mm

4шт.

20

4361802

Screw

(SUB FOR AT214012)

4шт.

21

3072613

Cover

(SUB FOR AT213778)

1шт.

22

21M7246

Screw

M6 X 16

2шт.

24M7105

Washer

6 X 12 X 1.600 mm

2шт.

12M7006

Lock Washer

6 mm

2шт.

24

2037689

Cover

(SUB FOR AT213739)

2шт.

26

19M7177

Cap Screw

M6 X 35

8шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

8шт.

12M7006

Lock Washer

6 mm

8шт.

27

4351277

Cover

(SUB FOR AT213960)

3шт.

Выбрано товаров: 34
