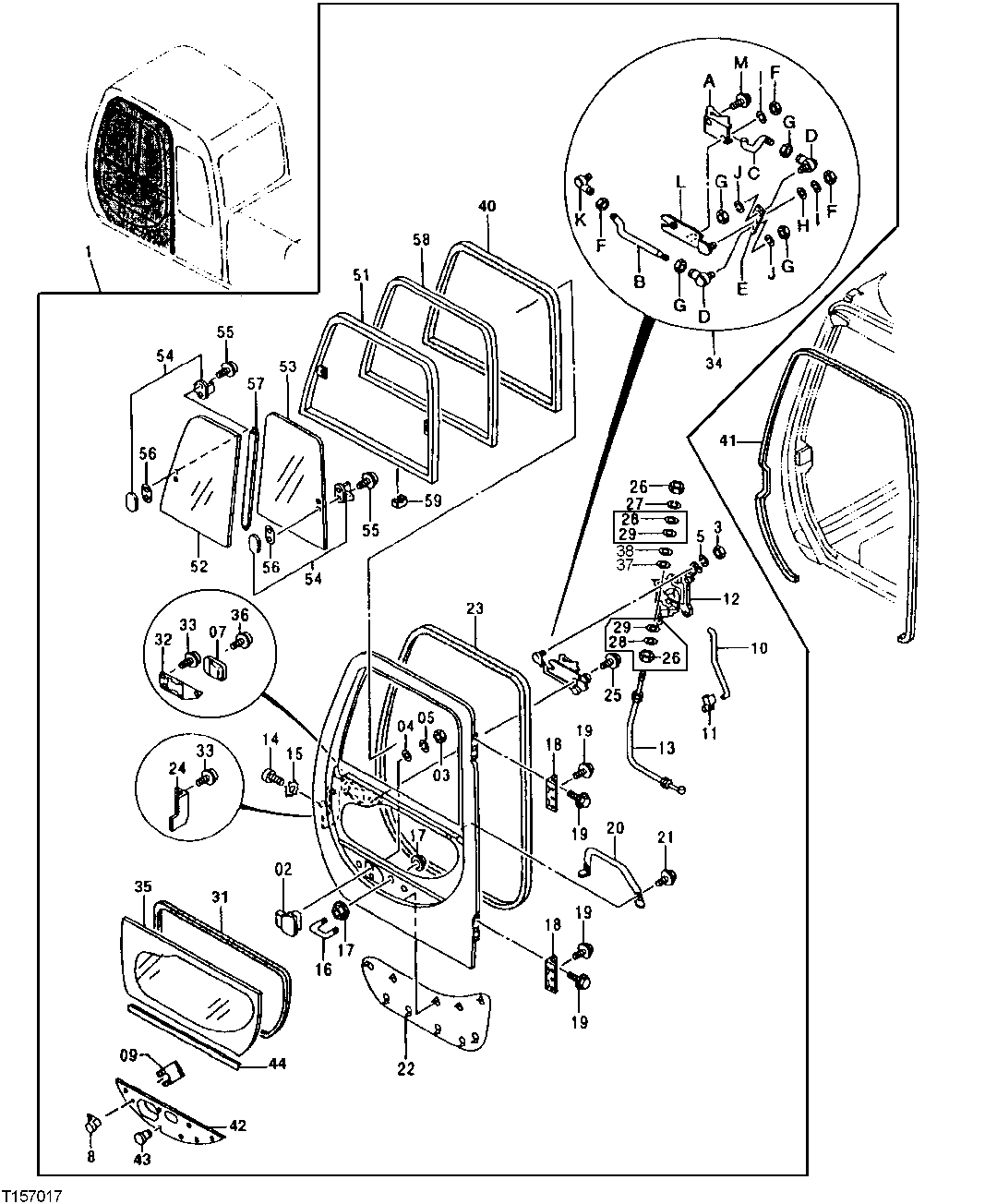

Запчасти John Deere 30LC/370 138 - Cab Components (Door Assembly) 1810 Operator Enclosure

0

4383439

Cab

(SUB FOR AT215570)(NOT ILLUSTRATED) (CONTAI NS ALL ITEMS ON THIS PAGE - ADDITIONAL COMPO NENTS LISTED ON PREVIOUS AND FOLLOWING PAGES )

1шт.

1

4385381

Door

(SUB FOR AT215574)

1шт.

2

4369645

Handle

(SUB FOR AT214145)

1шт.

3

14M7272

Nut

M6

3шт.

4

24M7054

Washer

6.400 X 12 X 1.600 mm

2шт.

5

12M7006

Lock Washer

6 mm

3шт.

7

4369633

Cover

(SUB FOR AT214133)

1шт.

8

4362135

Lock

(SUB FOR AT176789)

1шт.

AT194969

Key

(SUB FOR AT147803)(H800) (NOT ILLUSTRATED)

1шт.

9

4372091

Clip

(SUB FOR AT214290)

1шт.

10

4369643

Rod

(SUB FOR AT214143)

1шт.

11

4372092

Retainer

(SUB FOR AT214291)

1шт.

12

4369631

Lock

(SUB FOR AT214131)

1шт.

13

Cable

( 4369642 NO LONGER AVAILABLE - FURNIS H 4458077 ALONG WITH 4458079, 4455981, (3) 4382885, 4458080) (SUB FOR AT214142 )

1шт.

4458077

Cable

1шт.

14

4382885

Bolt

(SUB FOR AT213624, M470625)

3шт.

15

12M7081

Lock Washer

6.400 mm (SUB FOR AT214314 OR 4372560)

3шт.

16

4369661

U-Bolt

(SUB FOR AT214160)

1шт.

17

4414857

Nut

(SUB FOR AT157068)

4шт.

18

4369648

Hinge

(SUB FOR AT214148)

2шт.

19

R168831

Cap Screw

(SUB FOR AT214313, 4372261 OR 4356695)

12шт.

24M7271

Washer

10.500 X 20 X 2 mm

12шт.

20

4369646

Handrail

(SUB FOR AT214146)

1шт.

21

4372225

Screw With Washer

(SUB FOR AT214311)

2шт.

22

4369647

Cover

(SUB FOR AT214147)

1шт.

23

4369662

Weatherstrip

(SUB FOR AT214161)

1шт.

24

4369632

Cover

(SUB FOR AT214132)

1шт.

25

21M7246

Screw

M6 X 16

2шт.

24M7105

Washer

6 X 12 X 1.600 mm

2шт.

12M7006

Lock Washer

6 mm

2шт.

26

14M7297

Nut

M5

2шт.

14M7297

Nut

M5

1шт.

27

12M7064

Lock Washer

5 mm

1шт.

28

24M7027

Washer

5.300 X 10 X 1 mm

2шт.

29

24M7055

Washer

8.400 X 16 X 1.600 mm

2шт.

30

4458080

Seal

(NOT ILLUSTRATED)

1шт.
