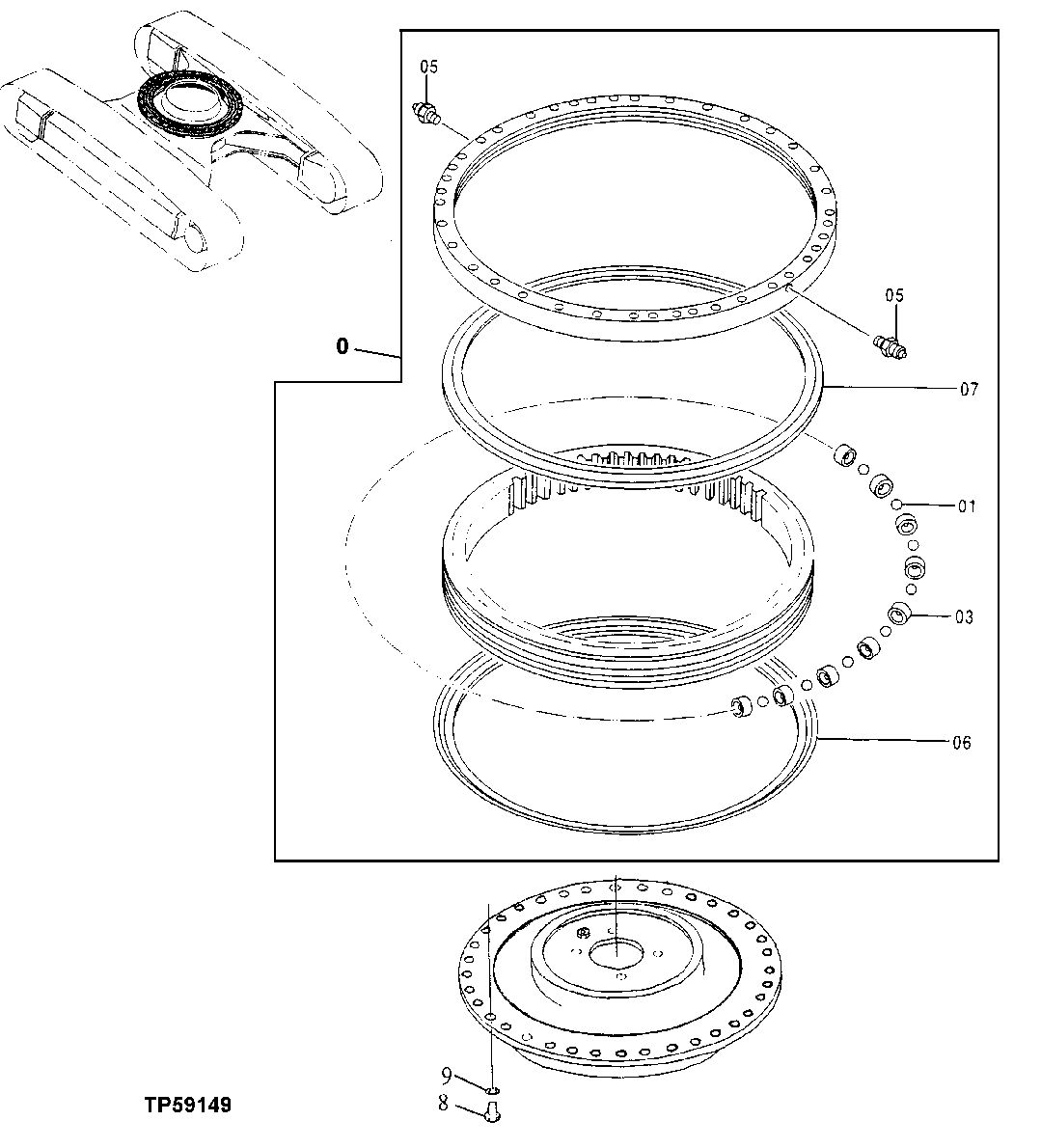

Запчасти John Deere 30LC/370 132 - Swing Bearing 1740 Frame Installation

0

9219138

Swing Bearing

1шт.

9219138EX

Swing Bearing

(A) SUB FOR AT250255, AT 190779; REMAN FOR 9219138

1шт.

1

4382742

Ball

SUB FOR AT250035

95шт.

3

4382739

Spacer

SUB FOR AT250034

95шт.

5

TH100074

Lubrication Fitting

2шт.

6

T203958

Seal

4631753 NLA, SUB FOR (1) T191211; A LSO ORDER PM37391 AND AT66866; ALSO O RDER T216880 Installation Instruction

1шт.

TY21517

Adhesive

(NOT ILLUSTRATED)

1шт.

AT66866

Fluid

(NOT ILLUSTRATED)

1шт.

7

T203958

Seal

S 4631753 NLA, SUB FOR (1) T191211; ALSO ORDER PM37391 AND AT66866; ALSO ORDER T216880 Installation Instructio n

1шт.

TY21517

Adhesive

(NOT ILLUSTRATED)

1шт.

AT66866

Fluid

(NOT ILLUSTRATED)

1шт.

8

4383972

Screw

SUB FOR AT250043

36шт.

9

J257227

Lock Washer

SUB FOR AT250278

36шт.
