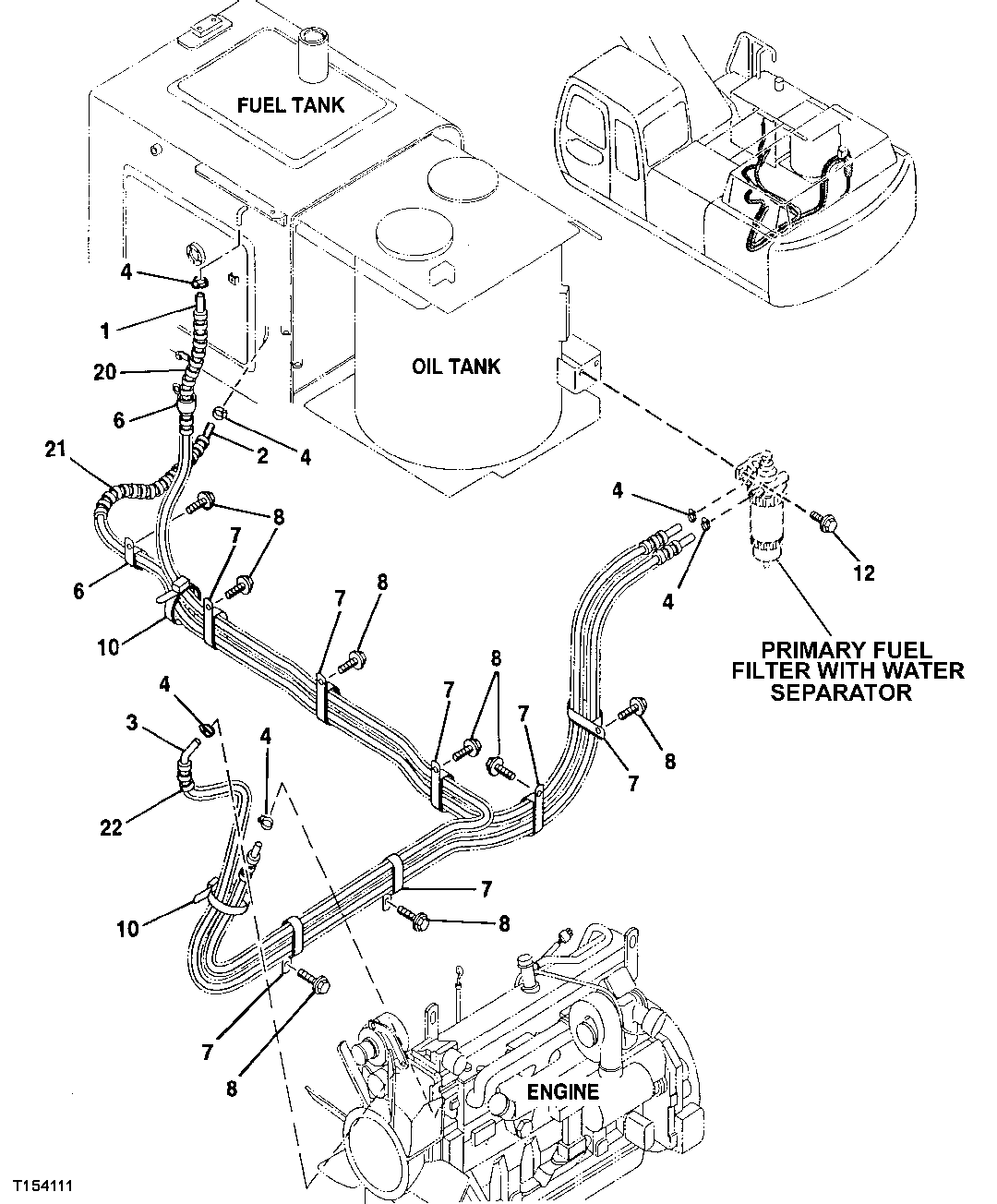

Запчасти John Deere 30LC/370 103 - Fuel Tank, Primary Fuel Filter, and Hoses 0560 External Fuel Supply Systems

1

Bulk Hose

(FURNISH TY22552 CUT AS NEEDED FROM BULK) (SUB FOR AT250118 OR 4397880)

1шт.

2

Bulk Hose

(MAKE FROM TY22552 - CUT TO LENGTH 2 720MM) (SUB FOR AT219660 OR 4047044)

1шт.

3

4387726

Hose

(SUB FOR AT250078)(MF TY2255 2 CTL 2050MM) ( 4387726 NLA)

1шт.

4

TY22464

Clamp

(SUB FOR AR21836)

6шт.

6

T24432

Clamp

2шт.

7

4190266

Clip

(SUB FOR TH108793)

7шт.

8

19M7938

Cap Screw

M10 X 20

8шт.

12M7066

Lock Washer

10 mm

8шт.

10

H77698

Tie Band

2шт.

12

19M7550

Cap Screw

M10 X 35

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

20

Hose Guard

(SUB FOR AT250119)(MF TY26190 CTL 3600MM)

1шт.

21

Y404061

Hose Guard

(SUB FOR AT250120, 4259842, 4 282220, 4385002, 4188525, 4387 763, 4417414, 4435921, 4397947 )

1шт.

22

Hose Guard

(SUB FOR AT250138)(MF TY26190 CTL 1850MM)

1шт.
