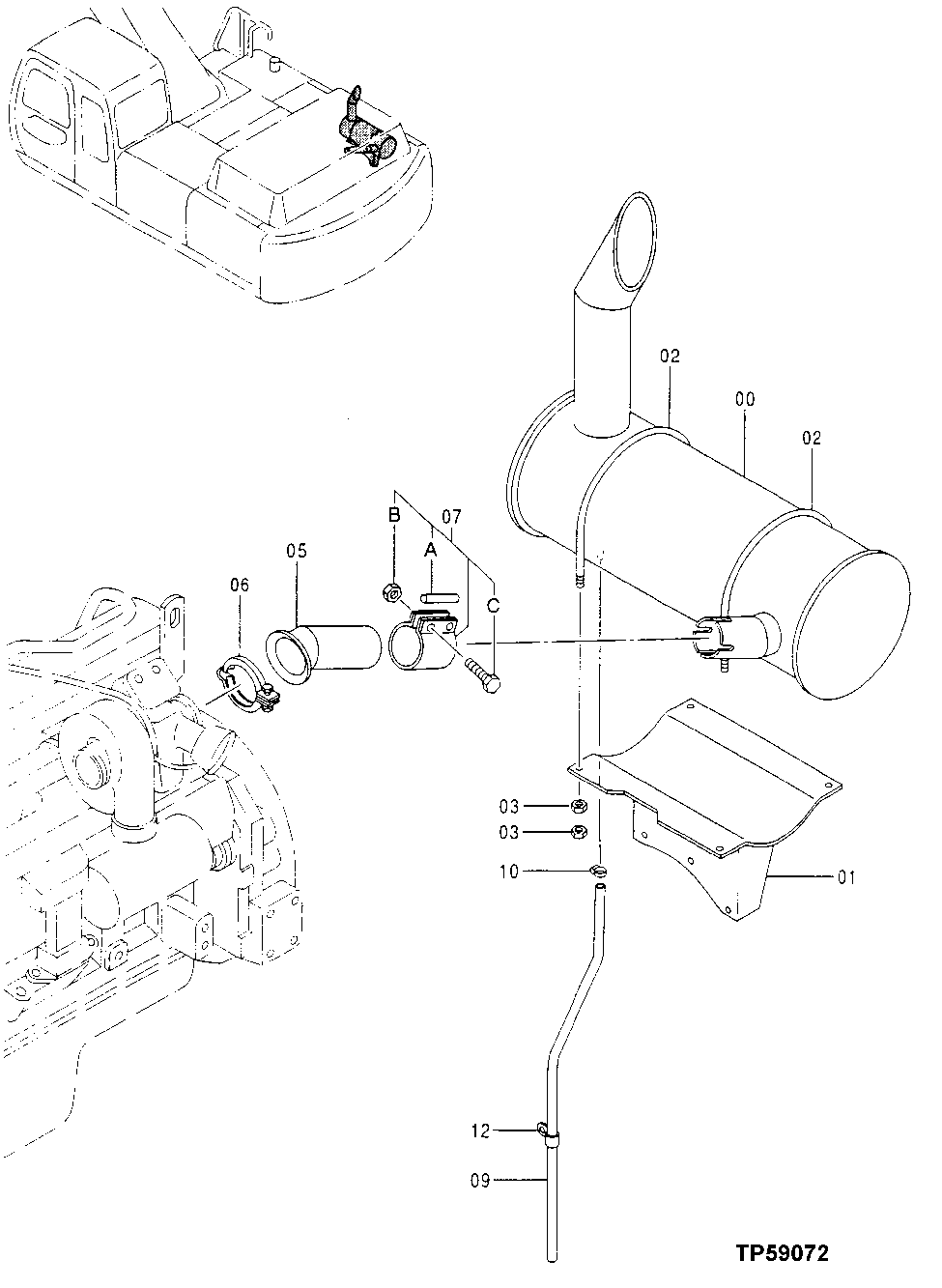

Запчасти John Deere 30LC/370 99 - Muffler 0530 External Exhaust Systems

0

4687873

Muffler

(SUB FOR 4397042 ) (SUB FOR AT250110)

1шт.

1

7033139

Support

(SUB FOR AT250176)

1шт.

2

4189055

U-Bolt

(SUB FOR TH109412)

2шт.

3

14M7274

Nut

M10

8шт.

5

8071385

Exhaust Pipe

(SUB FOR AT250237)

1шт.

6

RE40048

Clamp

(INCLUDES SCREW)

1шт.

7

4283787

Clamp

(SUB FOR AT154968)

1шт.

7A

T130341

Gasket

1шт.

7B

H80440

Lock Nut

11.125 mm (7/16")

2шт.

7C

4162836

Bolt

(SUB FOR AT154914)

2шт.

9

4297136

Tube

(SUB FOR AT201033)

1шт.

10

TY22462

Clamp

(SUB FOR AR48236)

1шт.

12

4190275

Clamp

(SUB FOR AT215520 ) (SUB FOR 4344303)

1шт.
