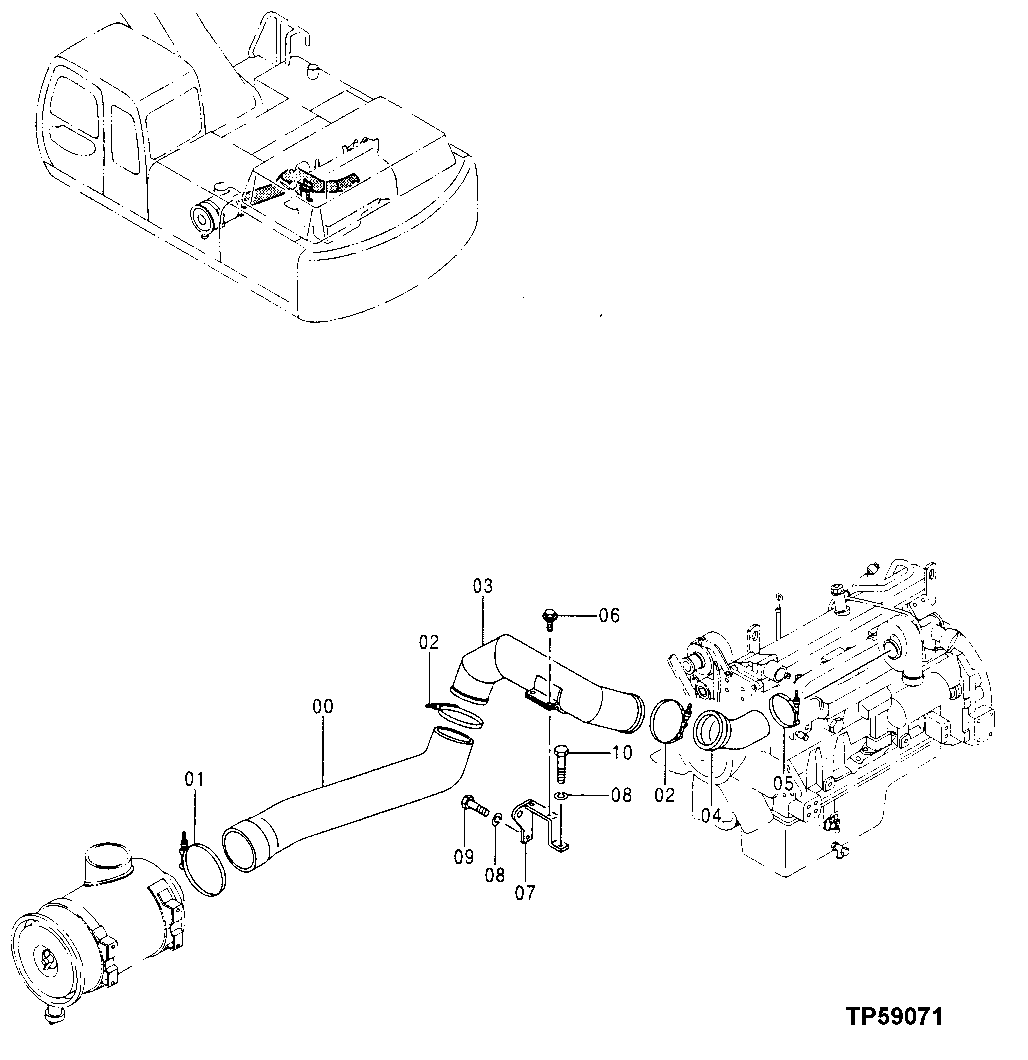

Запчасти John Deere 30LC/370 98 - Air Cleaner Support 0520 Intake System

0

2041939

Hose

(SUB FOR AT219605)

1шт.

1

4283989

Hose Clamp

(SUB FOR AT53438)

1шт.

2

4283988

Hose Clamp

(SUB FOR AT219670)

2шт.

3

8071050

Line

(SUB FOR AT250228)

1шт.

4

4396366

Hose

(SUB FOR AT250106)

1шт.

5

AT56657

Hose Clamp

1шт.

6

19M7402

Cap Screw

M10 X 25

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

7

Bracket

( AT250229, 8071058 AND AT309636 NLA)

1шт.

8

12H294

Lock Washer

5/8"

2шт.

9

19H2994

Cap Screw

5/8" X 1-1/2"

1шт.

10

19H3244

Cap Screw

5/8" X 2-1/4"

1шт.
