Запчасти John Deere 30LC/370 96 - Engine Control Unit 0515 Engine Speed Controls

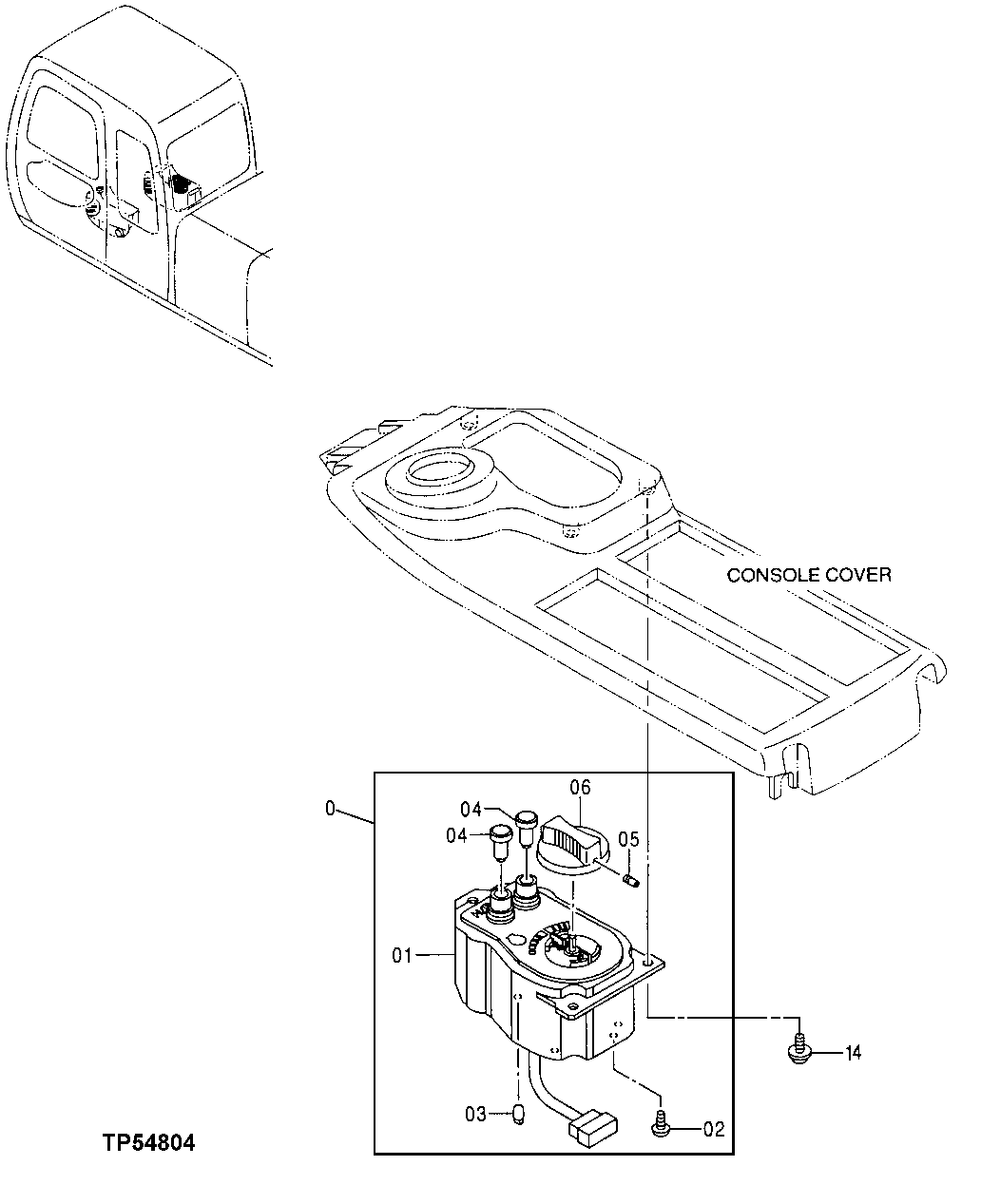

Схема запчастей John Deere 30LC/370 - 96 - Engine Control Unit 0515 Engine Speed Controls

Артикул

Название

Примечание

Количество

0

4341545

Control

(SUB FOR AT216976)

1шт.

1

4370311

Engine Controller

(SUB FOR AT214257)

1шт.

2

4370153

Screw With Washer

(SUB FOR AT214200)

3шт.

3

4370152

Lamp

(SUB FOR AT214199)

1шт.

4

4370151

Switch

(SUB FOR AT214198)

2шт.

5

4370150

Set Screw

(SUB FOR AT214197)

1шт.

6

4370143

Knob

(SUB FOR AT214190)

1шт.

14

21M7265

Screw

M5 X 12

3шт.

24M7027

Washer

5.300 X 10 X 1 mm

3шт.

12M7064

Lock Washer

5 mm

3шт.

Выбрано товаров: 10
