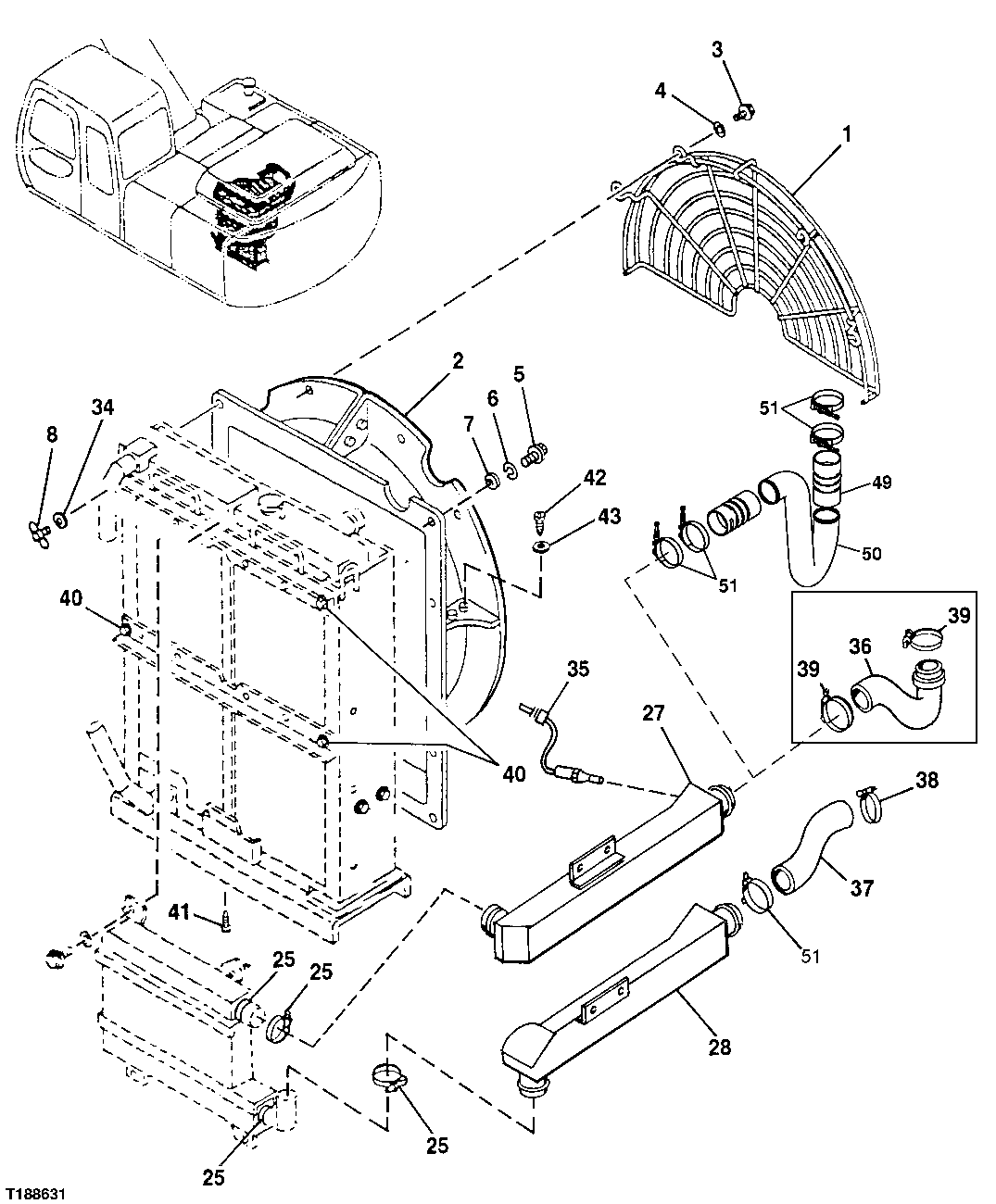

Запчасти John Deere 30LC/370 90 - Radiator / Fan Shroud / Coolant Hoses 0510 Engine Cooling Systems

1

AT180606

Guard

1шт.

2

AT180605

Shroud

1шт.

3

19M7786

Screw

M10 X 30

4шт.

4

24M7298

Washer

8.400 X 25 X 2 mm

1шт.

5

19M7785

Screw

M10 X 25

7шт.

6

24M7296

Washer

10.500 X 30 X 2.500 mm

7шт.

7

24H1330

Washer

15/32" X 1-3/8" X 7/64"

7шт.

8

T160108

Wing Screw

2шт.

25

AT37476

Hose Clamp

4шт.

27

AT182287

Air Plenum

1шт.

28

AT182288

Air Plenum

INCLUDES RE60071

1шт.

RE60071

Fitting

Start Aid System Fitting

1шт.

34

24M7298

Washer

8.400 X 25 X 2 mm

2шт.

35

AH148258

Switch

Temperature

1шт.

36

Hose

(SUB T200374 AND (2) T201908 AND ( 4) AT301456 ) (SUB FOR T163213, T19 0411)( T191283 NO LONGER AVAILABLE)

1шт.

37

T190417

Hose

(SUB FOR T161964)

1шт.

38

AT39141

Hose Clamp

1шт.

39

AT37476

Hose Clamp

2шт.

40

19M7789

Screw

M12 X 30

7шт.

24M7240

Washer

13 X 25 X 3 mm

7шт.

41

24M7296

Washer

10.500 X 30 X 2.500 mm

4шт.

19M7784

Screw

M10 X 20

4шт.

42

19M7407

Cap Screw

M8 X 25

8шт.

43

24M7239

Washer

10.700 X 21 X 2.500 mm

16шт.

49

T201908

Hose

2шт.

50

T200374

Air Flow Tube

1шт.

51

AT301456

Clamp

5шт.
