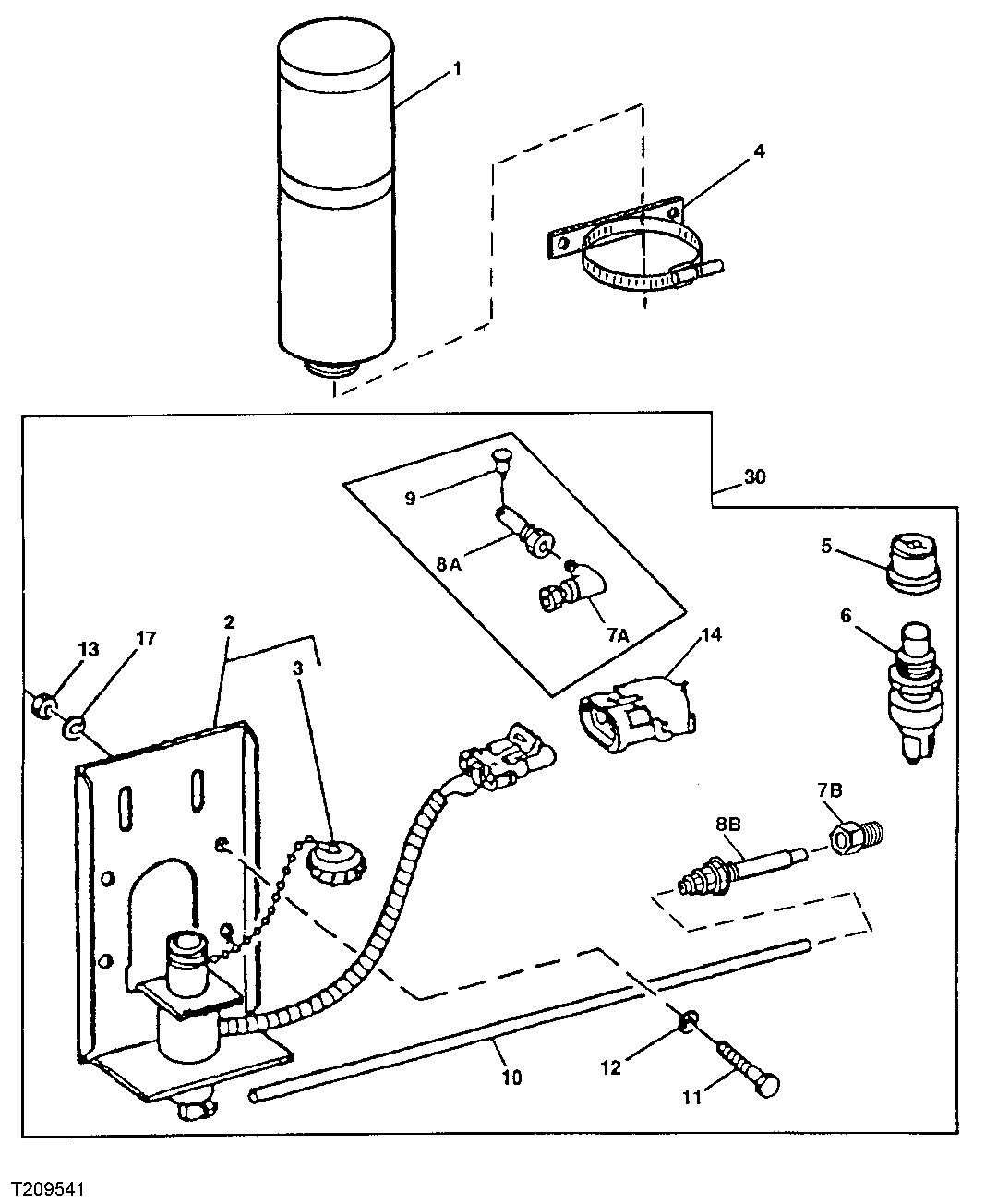

Запчасти John Deere 30LC/370 87 - Cold Weather Starting Aid 0505 Cold Weather Starting Aids

1

AT42005

Starting Fluid

1шт.

2

AT170759

Solenoid

1шт.

3

AT171539

Cap

1шт.

4

AT42003

Clamp

1шт.

5

Cap

NO LONGER REQUIRED

1шт.

6

4384759

Switch

SUB FOR AT178893

1шт.

7A

RE21790

Elbow Fitting

1шт.

7B

Adapter Fitting

NOT REQUIRED ON 330LC OR 330

1шт.

8A

R47160

Nozzle Holder

1шт.

8B

AT183222

Nozzle

1шт.

9

T155858

Nozzle

USE WITH R47160

1шт.

10

Tube

CUT TO LENGTH FROM T78593 BULK MATER IAL; DT5069 NOT AVAILABLE FOR SERVICE

1шт.

11

19M7407

Cap Screw

M8 X 25

4шт.

12

Washer

12M7065 NLA

4шт.

13

14M7273

Nut

M8

4шт.

14

Connector

AL2976T NO LONGER REQUIRED

1шт.

17

24M7055

Washer

8.400 X 16 X 1.600 mm

4шт.

18

R44302

Tie Band

NOT ILLUSTRATED

ARшт.

30

Field Installation Kit

WHOLEGOODS, ETHER; AT178845 NLA

1шт.
