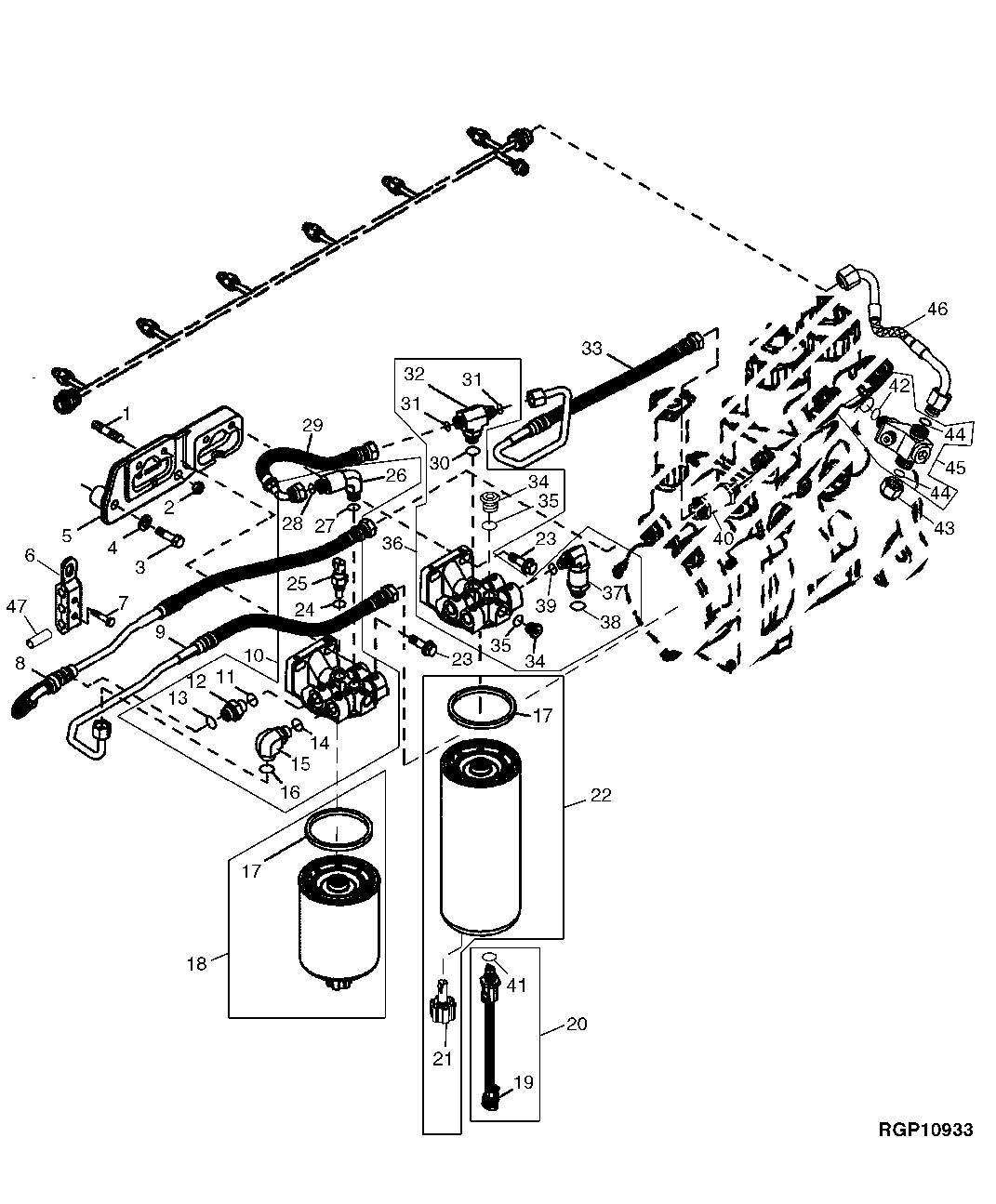

Запчасти John Deere 30CLC 72 - 3501, 3515 Fuel Filter and Lines 0400A 6081HT002 6081HT002 6081HT002

1

R504516

Stud

1шт.

2

14H1059

Nut

7/16"

1шт.

3

19H2678

Cap Screw

7/16" X 2-1/8"

1шт.

4

24H1325

Washer

15/32" X 59/64" X 0.065"

1шт.

5

R518524

Bracket

1шт.

6

RE509668

Clamp

1шт.

7

19H1791

Cap Screw

1/4" X 1-1/4"

2шт.

8

RE520975

Fuel Line

INCLUDES R518563

1шт.

9

RE520981

Fuel Line

INCLUDES R518563

1шт.

10

RE520969

Filter Head

FINAL

1шт.

11

51M7096

O-Ring

13.300 X 2.200 mm USE WITH RE523578

1шт.

12

RE522518

Fitting

INCLUDES 51M7096 AND R63548

1шт.

13

R63548

O-Ring

9.246 X 1.778 mm (0.364" X 0.070")

1шт.

14

51M7096

O-Ring

13.300 X 2.200 mm

1шт.

15

RE522145

Adapter Fitting

INCLUDES 51M7096 AND R63548

1шт.

16

R63548

O-Ring

9.246 X 1.778 mm (0.364" X 0.070")

1шт.

17

R519483

Packing

2шт.

18

R502778

Filter Element

2 MICRONS

1шт.

RE522688

Fuel Filter

2 MICRONS

1шт.

19

57M7254

Elec. Connector Housing

ALSO ORDER (2) R104846, 57M7258 AND 57M7289

1шт.

20

RE522685

Sensor

1шт.

21

RE522686

Drain Valve

1шт.

22

RE522372

Fuel Filter

10 MICRONS; SUB FOR RE519608 OR RE509596

1шт.

RE531703

Fuel Filter

10 MICRONS; SUB FOR RE522687

1шт.

23

19H3693

Screw

3/8" X 1-1/4"

4шт.

24

51M7041

O-Ring

11.300 X 2.200 mm

1шт.

25

RE48419

Sensor

INCLUDES 51M7041

1шт.

26

RE520971

Control Valve

INCLUDES 51M7096 AND R63548

1шт.

27

51M7096

O-Ring

13.300 X 2.200 mm

1шт.

28

R63548

O-Ring

9.246 X 1.778 mm (0.364" X 0.070")

1шт.

29

RE521473

Fuel Line

1шт.

30

R63548

O-Ring

9.246 X 1.778 mm (0.364" X 0.070")

1шт.

31

51M7096

O-Ring

13.300 X 2.200 mm

2шт.

32

RE522143

Adapter Fitting

INCLUDES (2) 51M7096 AND R63548

1шт.

33

RE520972

Fuel Line

INCLUDES R518563

1шт.

34

RE522144

Drain Plug

INCLUDES 51M7095

ARшт.

RE523578

Diagnostic Coupling

INCLUDES 51M7096

1шт.

35

51M7095

O-Ring

11.300 X 2.200 mm USE WITH RE522144

ARшт.

51M7096

O-Ring

13.300 X 2.200 mm

1шт.

36

RE520967

Filter Head

PRE-FILTER

1шт.

37

RE520968

Check Valve

INCLUDES 51M7096 AND R63548

1шт.

38

51M7096

O-Ring

13.300 X 2.200 mm

1шт.

39

R63548

O-Ring

9.246 X 1.778 mm (0.364" X 0.070")

1шт.

40

Check Valve

INCLUDES 51M7095

1шт.

41

51M7095

O-Ring

11.300 X 2.200 mm

1шт.

42

R519759

O-Ring

1шт.

43

38H1415

Fitting

ARшт.

44

R63548

O-Ring

9.246 X 1.778 mm (0.364" X 0.070")

ARшт.

45

RE522834

Valve

SUB FOR RE521094; INCLUDES R77175

1шт.

R77175

Cover

1шт.

46

RE521477

Fuel Line

1шт.

47

R518563

Hose Guard

3шт.
