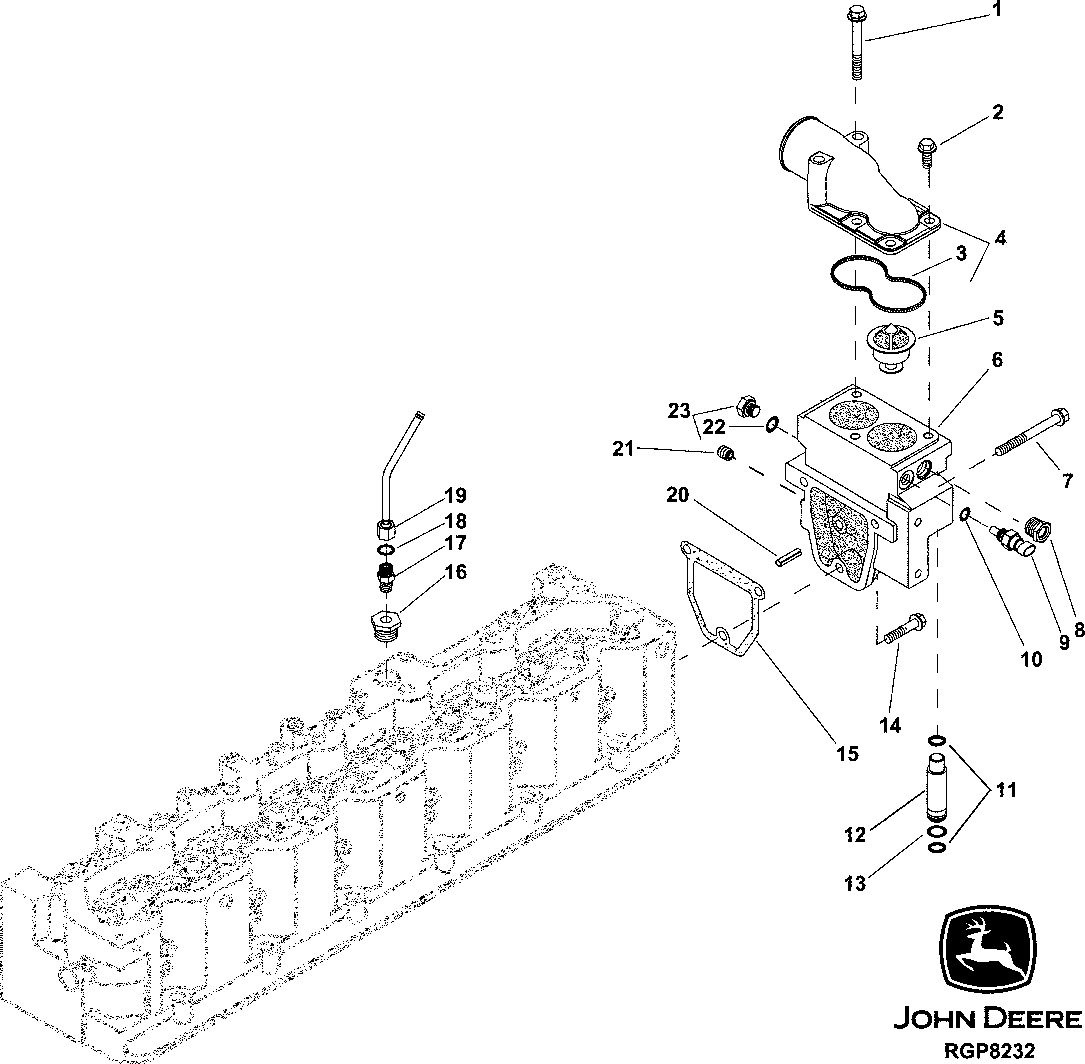

Запчасти John Deere 30CLC 69 - 2103, 2111 THERMOSTAT COVER, THERMOSTAT 0400A 6081HT002 6081HT002 6081HT002

1

19H3735

Screw

3/8" X 3-1/4"

1шт.

2

T53268

Screw

2шт.

3

R124607

Gasket

(USE WITH R89439 ) (SUB FOR R136151, THIS APPLICATION)

1шт.

R136151

Seal

(USE WITH RE502571)

1шт.

4

R89439

Cover

(SUB FOR RE502571, THIS APPLICATION)

1шт.

5

AR48675

Thermostat

2шт.

6

R519578

Manifold

(SUB R524703 AND(2) R52 1548) (SUB FOR R109859)

1шт.

7

R133998

Screw

2шт.

8

RE510017

Adapter Fitting

(USE WITH 4456798)

1шт.

9

RE151433

Temperature Sensor

1шт.

10

R77673

O-Ring

1шт.

11

R72328

O-Ring

1шт.

12

RE509095

Tube

1шт.

13

R504810

O-Ring

1шт.

14

19H3772

Screw

3/8" X 1-3/4"

1шт.

15

R86062

Gasket

1шт.

16

15H607

Pipe Bushing

1/4"

1шт.

17

T80938

Adapter Fitting

1шт.

18

T11899

O-Ring

1шт.

19

RE515042

Line

1шт.

20

34H329

Spring Pin

5/16" X 1-1/4"

1шт.

21

RE57836

Pipe Plug

1шт.

22

51M7041

O-Ring

11.300 X 2.200 mm

1шт.

23

RE46684

Fitting Plug

1шт.
