Запчасти John Deere 30CLC 64 - 16BS, 1613 FUEL INJECTION PUMP,FUEL INJECTION NOZZLE AND LINES 0400A 6081HT002 6081HT002 6081HT002

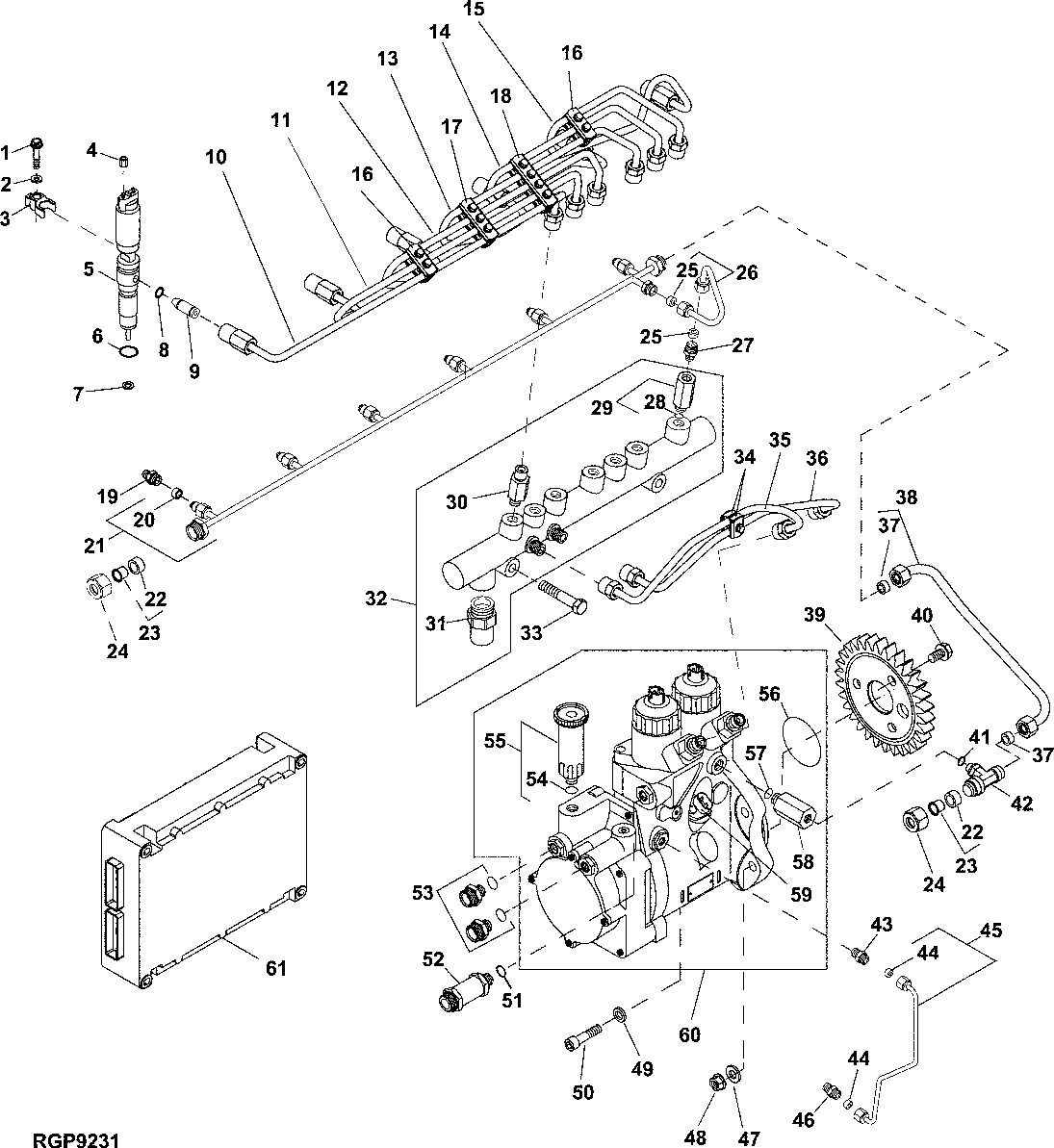

Схема запчастей John Deere 30CLC - 64 - 16BS, 1613 FUEL INJECTION PUMP,FUEL INJECTION NOZZLE AND LINES 0400A 6081HT002 6081HT002 6081HT002

Артикул

Название

Примечание

Количество

37

R67092

Sealing Washer

2шт.

38

RE516203

Fuel Line

(SUB FOR RE509554)

1шт.

RE521477

Fuel Line

1шт.

39

R504089

Gear

1шт.

40

19M7783

Screw

M10 X 16

3шт.

41

R505570

O-Ring

1шт.

42

RE515821

Tee Fitting

(INCLUDES R505570)

1шт.

43

RE503059

Adapter Fitting

1шт.

44

R67264

Packing

2шт.

45

RE504156

Oil Line

1шт.

46

R76822

Fitting

1шт.

47

24M7239

Washer

10.700 X 21 X 2.500 mm

3шт.

48

14H1090

Nut

3/8"

3шт.

49

24H1652

Washer

13/32" X 11/16" X 7/64"

1шт.

50

19H3124

Screw

3/8" X 1-1/2"

1шт.

51

51M4238

Sealing Ring

1шт.

52

RE508670

Check Valve

1шт.

53

RE503058

Adapter Fitting

1шт.

54

R515456

Washer

1шт.

55

RE515638

Hand Primer

1шт.

56

R515457

O-Ring

1шт.

57

R515455

Washer

(USE WITH RE515637)

1шт.

51M7095

O-Ring

11.300 X 2.200 mm (USE WITH RE518420)

1шт.

58

RE515637

Valve

(USE WITH RE508233)

1шт.

RE524349

Valve

(USE WITH RE518807 ) (SUB FOR RE518420)

1шт.

59

Sensor

(ORDER RE518807)

1шт.

60

RE518807

Fuel Injection Pump

(INCLUDES R515457 ) (SUB FOR RE508233)(DENSO) HPCR (24V)

1шт.

SE501919

Fuel Injection Pump Reman

(REMAN FOR RE518807)

1шт.

61

RE508773

Engine Controller

(MARKED RE508773)

1шт.

SE502807

Engine Controller Reman

(A) 12/24V, REMAN FOR RE508773

1шт.

RE522515

Engine Controller

(SUB FOR RE518503)(MACHINE SERIAL 592391-)

1шт.

Выбрано товаров: 31
