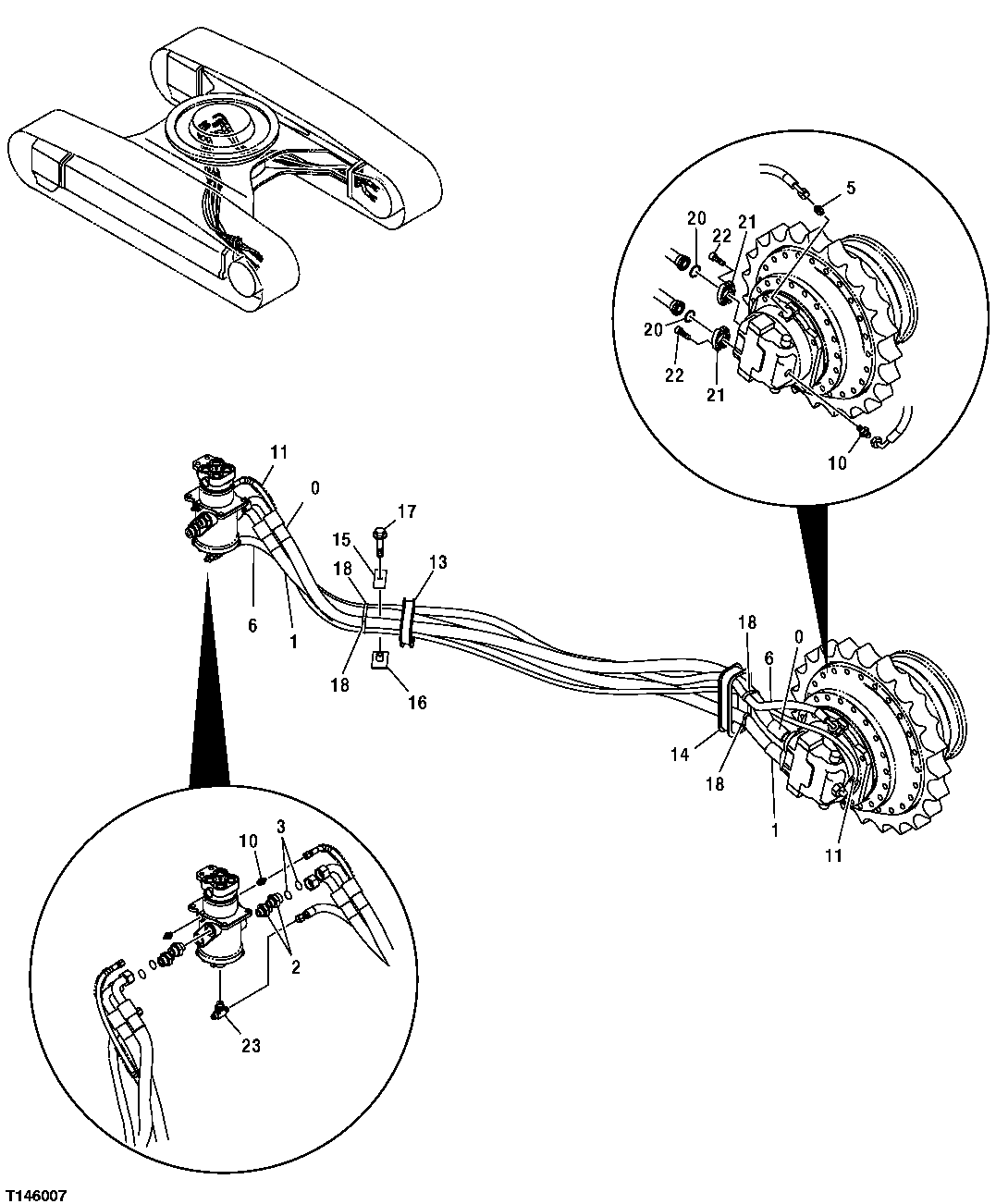

Запчасти John Deere 30CLC 37 - PROPEL MOTOR LINES (TRACK FRAME) (370C) 0260 AXLES, DIFF. & SUSP. SYS. HYD. (INCL. FWD)

0

4327470

Hydraulic Hose

(SUB FOR TH4327470)

1шт.

1

4327471

Hydraulic Hose

(SUB FOR TH4327471)

1шт.

2

4189601

Adapter Fitting

(SUB FOR THA853168, OR A853168THIS APPLICATION)

2шт.

2A

AT318035

O-Ring

(SUB FOR 4506424, TH10 0055)(NOT ILLUSTRATED)

1шт.

3

T76938

O-Ring

2шт.

5

4279302

Adapter Fitting

(SUB FOR AT200475)

1шт.

5A

AT318035

O-Ring

(SUB FOR 4506424, TH10 0055)(NOT ILLUSTRATED)

1шт.

6

4459853

Hydraulic Hose

(SUB FOR TH4459853)

1шт.

10

4200465

Adapter Fitting

(SUB FOR TH108328)

2шт.

10A

M800650

Packing

(NOT ILLUSTRATED)

1шт.

11

4459854

Hydraulic Hose

1шт.

13

4396013

Bushing

(SUB FOR AT250104)

1шт.

14

4438597

Bushing

(SUB FOR TH4438597)

1шт.

15

4202103

Clamp

(SUB FOR TH108302)

1шт.

16

9736782

Clamp

(SUB FOR AT201191)

1шт.

17

19M8348

Cap Screw

M12 X 65

1шт.

18

H77698

Tie Band

3шт.

20

T78313

O-Ring

2шт.

21

4085560

Flange Fitting

(SUB FOR TH101960)

4шт.

22

19M9163

Screw

M12 X 40 (SUB FOR J781240)

8шт.

23

A852544

Tee Fitting

(SUB FOR THA852544)

1шт.

23A

4506418

O-Ring

(NOT ILLUSTRATED)

1шт.
