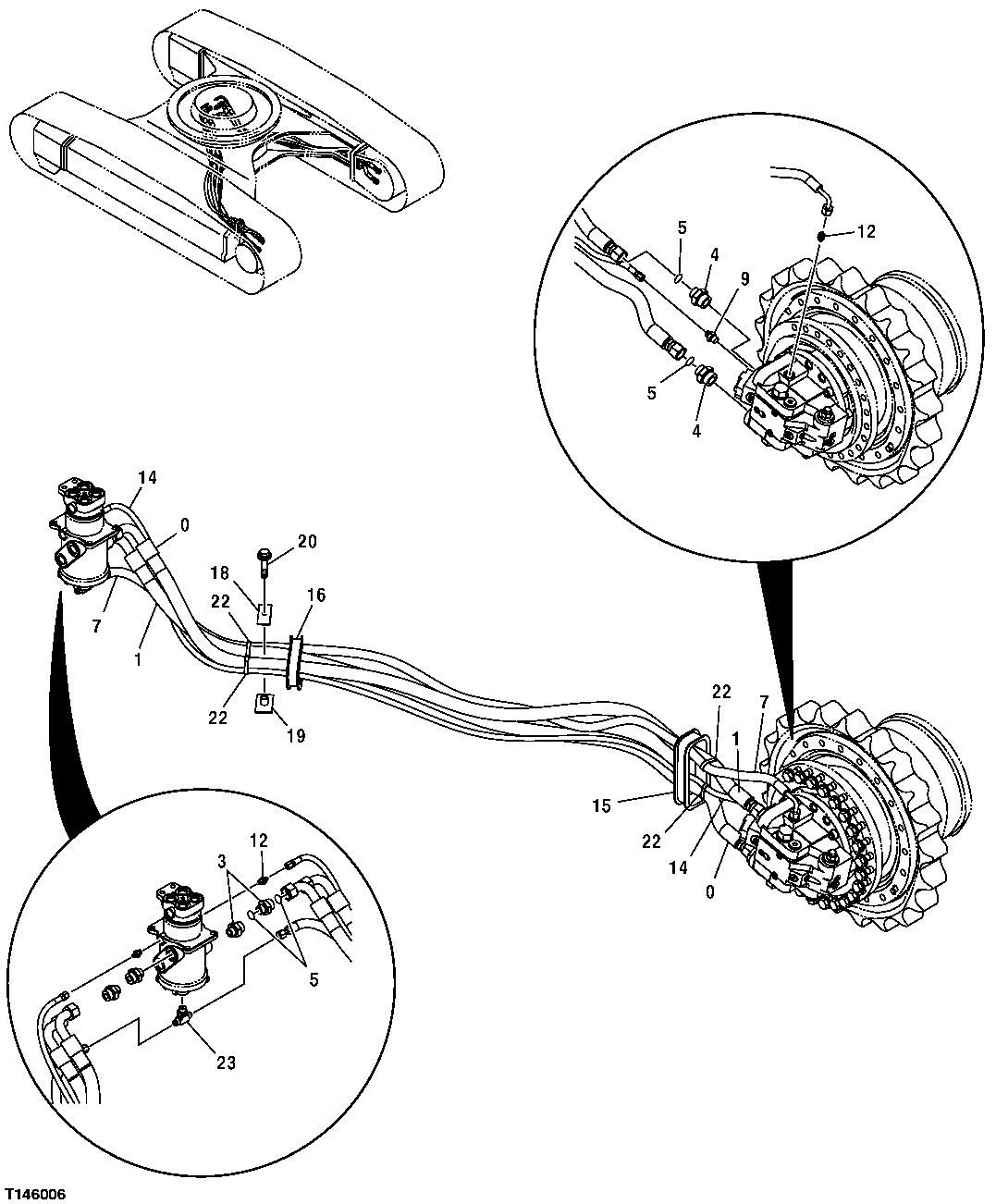

Запчасти John Deere 30CLC 36 - PROPEL MOTOR LINES (TRACK FRAME)(330CLC) 0260 AXLES, DIFF. & SUSP. SYS. HYD. (INCL. FWD)

0

AT217987

Hydraulic Hose

(SUB FOR AT204776)

1шт.

1

AT217987

Hydraulic Hose

(SUB FOR AT204775)

1шт.

3

4189601

Adapter Fitting

(SUB FOR THA853168, OR A853168THIS APPLICATION)

2шт.

AT318035

O-Ring

1шт.

3A

AT318035

O-Ring

SUB FOR 4506424, TH10055 Not Illustrated

1шт.

4

A853108

Adapter Fitting

2шт.

A853188

Adapter Fitting

2шт.

4A

970860

O-Ring

SUB FOR TH104634 Not Illustrated

1шт.

5

T76938

O-Ring

4шт.

7

4459641

Hydraulic Hose

(SUB FOR TH4459641)

1шт.

9

A852122

Adapter Fitting

1шт.

M800650

Packing

SUB FOR 957366

1шт.

9A

4506418

O-Ring

1шт.

12

4200465

Adapter Fitting

(SUB FOR TH108328)

2шт.

12A

M800650

Packing

Not Illustrated

1шт.

14

4429283

Hydraulic Hose

(SUB FOR 4450505)

1шт.

15

4380020

Grommet

(SUB FOR AT250021)

1шт.

16

4272436

Bushing

(SUB FOR AT201009)

1шт.

18

4202103

Clamp

(SUB FOR TH108302)

1шт.

19

9736782

Clamp

(SUB FOR AT201191)

1шт.

20

19M8348

Cap Screw

M12 X 65

1шт.

22

H77698

Tie Band

4шт.

23

A852544

Tee Fitting

(SUB FOR THA852544)

1шт.

23A

4506418

O-Ring

Not Illustrated

1шт.
