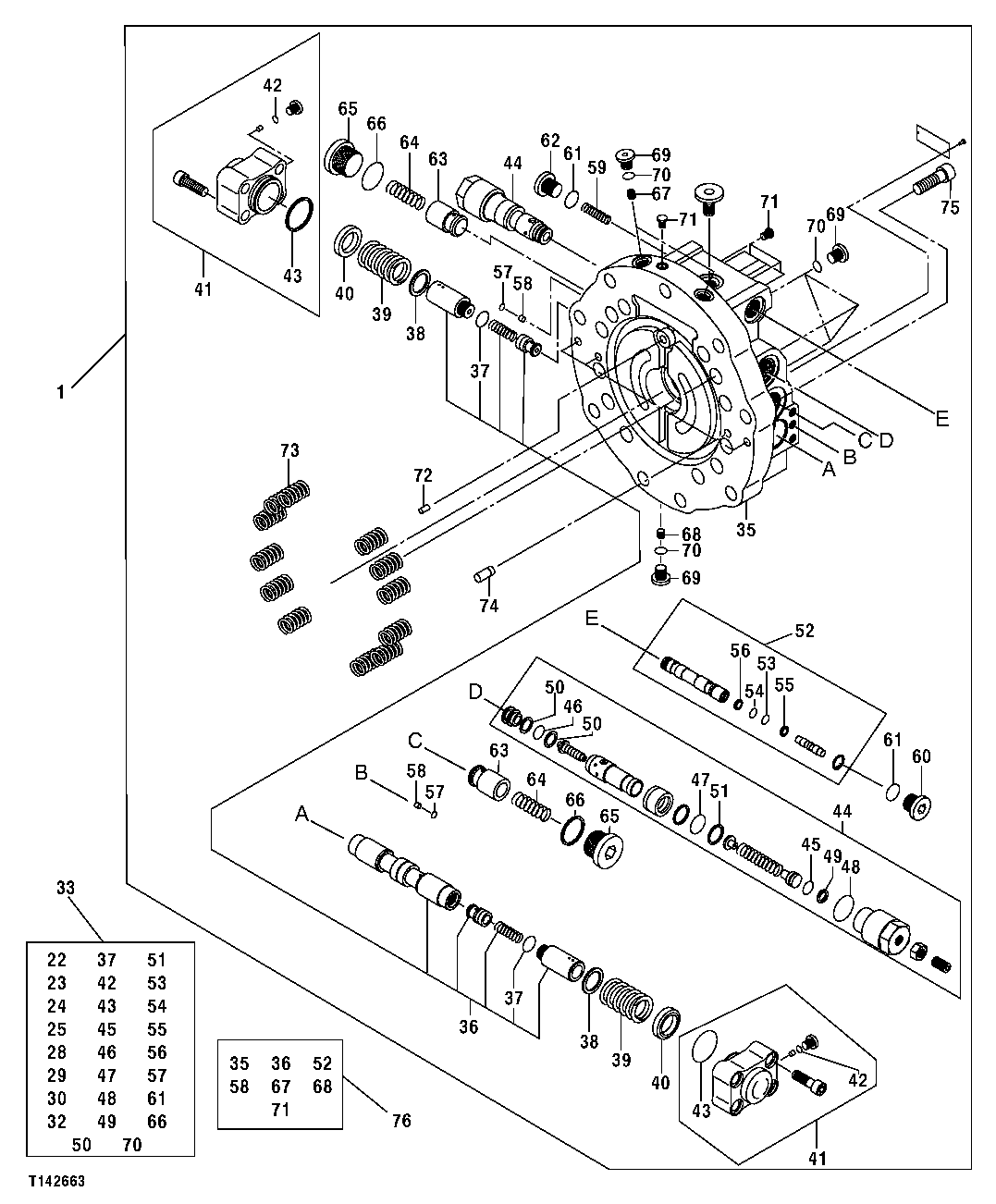

Запчасти John Deere 30CLC 30 - PROPEL MOTOR COMPONENTS (370C) 0260 AXLES, DIFF. & SUSP. SYS. HYD. (INCL. FWD)

1

TH4451685

Hydraulic Motor

Contains All Items On This Page - Additional Components Listed On Sep arate Pages NLA, (ORDER 4454685EX)

1шт.

4451685EX

Hydraulic Motor Reman

Contains All Items On This Page - Addit ional Components Listed On Separate Page s (REMAN FOR TH4451685) (SUB FOR 4451685 )

1шт.

33

0809515

Seal Kit

Contains All Items On This Page - Additional Components Listed On S eparate Pages (SUB FOR TH0809515)

1шт.

35

Plate

(NLA)

1шт.

36

Spool

(NLA)

1шт.

37

O-Ring

(NLA)

2шт.

38

0163601

Plate

(SUB FOR AT132163)

2шт.

39

0420002

Spring

(SUB FOR AT201568)

2шт.

40

0809601

Spring

Seat (SUB FOR TH0809601)

2шт.

41

0820201

Cap

ASSY (SUB FOR TH0820201)

2шт.

42

O-Ring

(NLA)

1шт.

43

O-Ring

(NLA)

1шт.

44

0802601

Pressure Relief Valve

(SUB FOR TH0802601)

2шт.

45

O-Ring

(NLA)

1шт.

46

O-Ring

(NLA)

1шт.

47

O-Ring

(NLA)

1шт.

48

O-Ring

(NLA)

1шт.

49

Back-Up Ring

(NLA)

1шт.

50

Back-Up Ring

(NLA)

2шт.

51

Back-Up Ring

(NLA)

2шт.

52

Valve

(NLA)

1шт.

53

O-Ring

(NLA)

1шт.

54

O-Ring

(NLA)

1шт.

55

Back-Up Ring

(NLA)

1шт.

56

Back-Up Ring

(NLA)

1шт.

57

CH11568

Packing

2шт.

58

Orifice

(NLA)

2шт.

59

0820203

Spring

(SUB FOR TH0820203)

1шт.

60

0671002

Fitting Plug

(SUB FOR AT218063)

1шт.

61

4506418

O-Ring

2шт.

62

0820204

Pipe Plug

(SUB FOR TH0820204)

1шт.

63

0352304

Check Valve

(SUB FOR AT132269)

2шт.

64

0352305

Spring

(SUB FOR AT132270)

2шт.

65

0352306

Plug

(SUB FOR AT132271)

2шт.

66

TH101926

O-Ring

2шт.

67

Orifice

(NLA)

2шт.

68

Orifice

(NLA)

1шт.

69

0436608

Fitting Plug

(SUB FOR AT218054)

6шт.

70

M800650

Packing

6шт.

71

Plug

(NLA)

9шт.

72

0682803

Pin

1шт.

73

0809604

Spring

(SUB FOR TH0809604)

10шт.

74

0251319

Pin

(SUB FOR AT127988)

4шт.

75

0168008

Bolt

(SUB FOR AT170382)

9шт.

76

0802602

Plate

Plate Assembly (SUB FOR TH0802602)

1шт.
