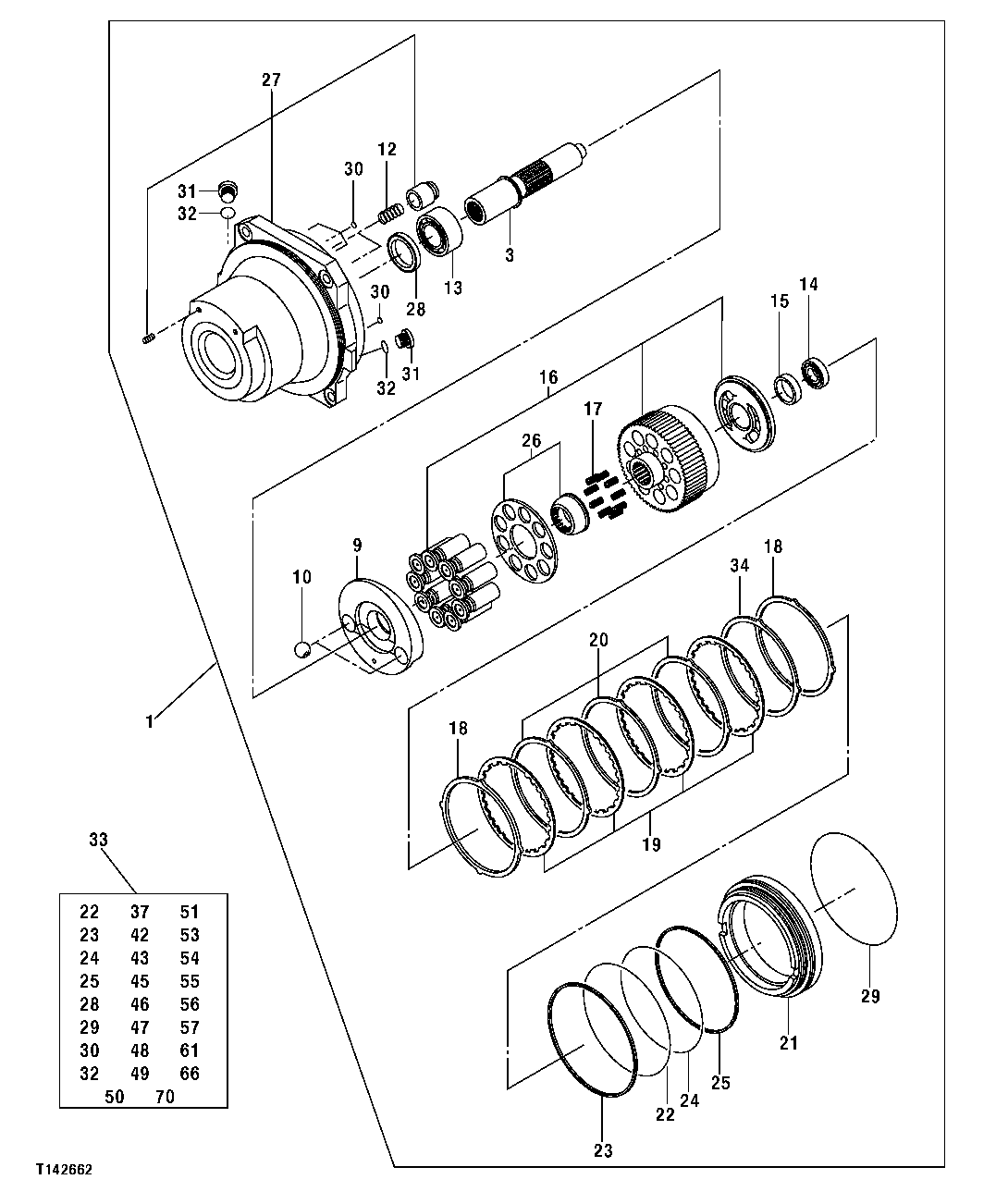

Запчасти John Deere 30CLC 29 - PROPEL MOTOR COMPONENTS (370C) 0260 AXLES, DIFF. & SUSP. SYS. HYD. (INCL. FWD)

1

TH4451685

Hydraulic Motor

Contains All Items On This Page - Additional Components Listed On S eparate Pages NLA, ORDER 4451685EX

1шт.

4451685EX

Hydraulic Motor Reman

Contains All Items On This Page - Addi tional Components Listed On Separate Pa ges REMAN FOR TH4451685, SUB FOR 445168 5

1шт.

3

0809501

Shaft

SUB FOR TH0809501

1шт.

9

0821801

Plate

SUB FOR TH0821801

1шт.

10

0682706

Ball

SUB FOR TH0682706

2шт.

12

0809503

Spring

SUB FOR TH0809503

2шт.

13

0809504

Cylindrical Roller Bearing

SUB FOR TH0809504

1шт.

14

0809505

Cylindrical Roller Bearing

SUB FOR TH0809505

1шт.

15

0809506

Bushing

SUB FOR TH0809506

1шт.

16

0820103

Cylinder

SUB FOR TH0820103

1шт.

17

0809507

Spring

SUB FOR TH0809507

9шт.

18

0809508

Plate

SUB FOR TH0809508

2шт.

19

0419808

Plate

SUB FOR AT201978

4шт.

20

0352221

Plate

SUB FOR AT132258

3шт.

21

0809509

Piston

SUB FOR TH0809509

1шт.

22

0365427

O-Ring

SUB FOR AT170304, 0411 419, 4S00240 OR 4S01093

1шт.

23

0809510

Piston Ring

SUB FOR TH0809510

1шт.

24

0419806

O-Ring

SUB FOR AT201977

1шт.

25

0419812

Back-Up Ring

SUB FOR AT204905OR 0419812

1шт.

26

0809513

Retainer

SUB FOR TH0809513

1шт.

27

Case

SUB FOR TH0809514, NLA 0809514

1шт.

28

0352218

Seal

SUB FOR AT132255

1шт.

29

A811260

O-Ring

SUB FOR THA811260

1шт.

30

CH17167

O-Ring

4шт.

31

0809511

Pipe Plug

SUB FOR TH0809511

2шт.

32

AT318035

O-Ring

SUB FOR 4506424 OR TH100055

2шт.

33

0809515

Seal Kit

(SUB FOR TH0809515)(CONTAINS ALL ITEMS ON THIS PAGE - ADDITIONAL -C OMPONENTS LISTED ON FOLLOWING PAGE )

1шт.

34

0820102

Thrust Washer

SUB FOR TH0820102

1шт.
