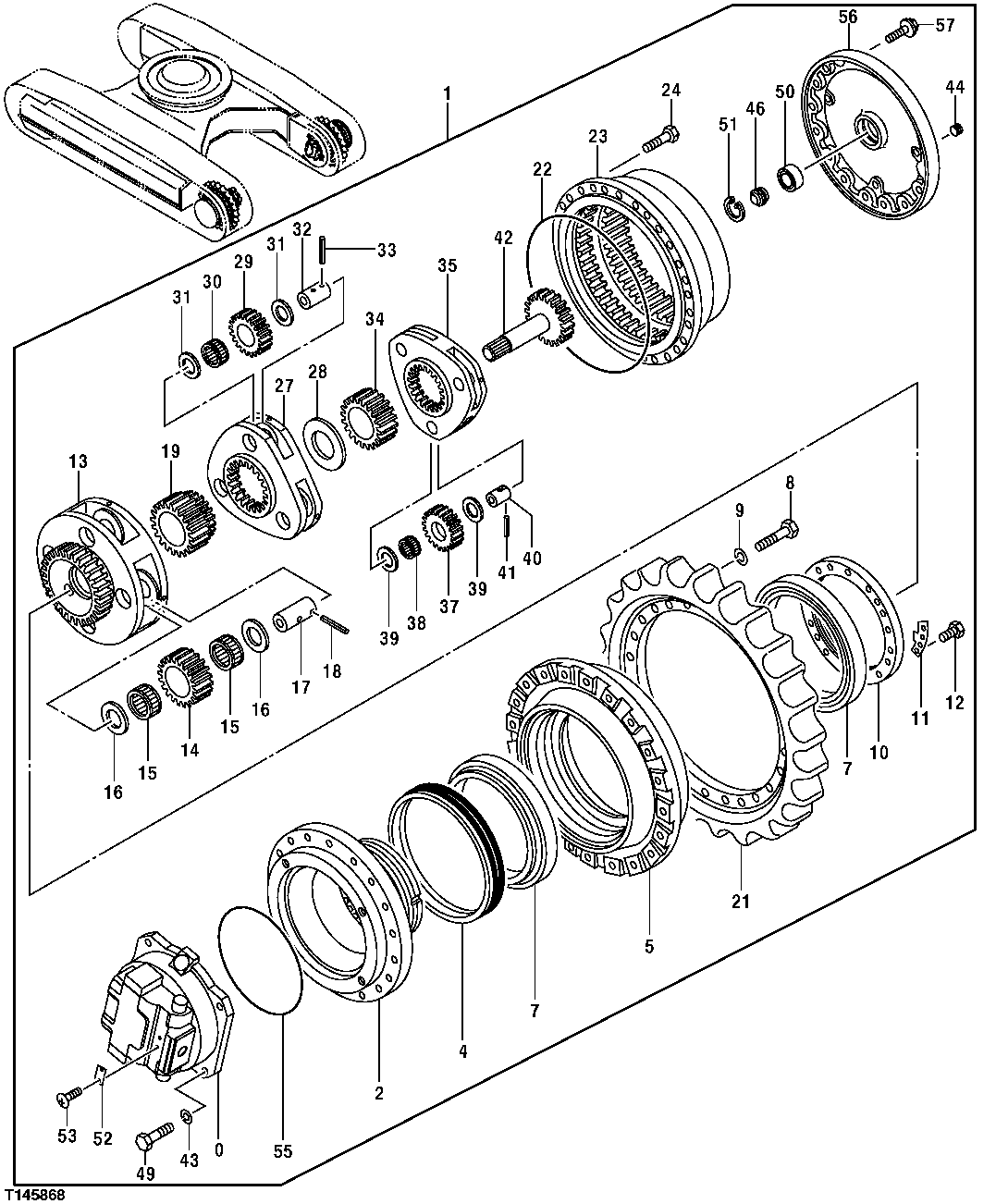

Запчасти John Deere 30CLC 28 - Propel Gear Box Components (370C) 0260 AXLES, DIFF. & SUSP. SYS. HYD. (INCL. FWD)

0

TH4451685

Hydraulic Motor

NLA, ORDER 4451685EX

1шт.

4451685EX

Hydraulic Motor Reman

REMAN FOR TH4451685

1шт.

1

9203778

Hydraulic Motor

SUB FOR TH9203778

2шт.

2

1027942

Housing

SUB FOR TH1027942

1шт.

4

4344155

Seal Kit

SUB FOR TH4344155

1шт.

5

1015882

Drum

SUB FOR AT201649

1шт.

7

FYB00001746

Bearing

SUB FOR 4200411 AND AT131735

2шт.

8

T214405

Bolt

SUB FOR TH101870 OR J932270

24шт.

9

12H245

Lock Washer

7/8"

24шт.

10

3043140

Retainer

SUB FOR AT131651

1шт.

11

3043141

Lock Plate

SUB FOR AT131652

1шт.

12

19M7872

Cap Screw

M12 X 25

2шт.

13

1015883

Planet Pinion Carrier

SUB FOR AT201650

1шт.

14

3053195

Planet Pinion

SUB FOR AT201678

4шт.

15

4452484

Needle Bearing

SUB FOR TH4452484

8шт.

16

4219595

Thrust Washer

SUB FOR AT131899

8шт.

17

4263903

Sleeve

SUB FOR AT201720

4шт.

18

34H343

Spring Pin

5/16" X 3-1/2" SUB FOR AT131852

4шт.

19

3053786

Sun Gear

SUB FOR AT201683

1шт.

21

1010956

Chain Sprocket

SUB FOR TH1028494, 1028494 OR 4S00540

1шт.

22

4203187

O-Ring

SUB FOR AT131751

1шт.

23

1018360

Ring Gear

SUB FOR AT201654

1шт.

24

J931845

Bolt

SUB FOR AT201959

30шт.

27

1015523

Planet Pinion Carrier

SUB FOR AT201645

1шт.

28

4263905

Washer

SUB FOR AT201721

2шт.

29

3053194

Planet Pinion

SUB FOR AT201677

3шт.

30

4452483

Needle Bearing

SUB FOR TH4452483

3шт.

31

4201968

Shim

SUB FOR AT131747

6шт.

32

4263902

Spacer

SUB FOR AT201719

3шт.

33

4203180

Spring Pin

SUB FOR AT131748

3шт.

34

3053785

Sun Gear

SUB FOR AT201682

1шт.

35

1024285

Planet Pinion Carrier

SUB FOR AT219587

1шт.

37

3079038

Gear

SUB FOR AT219631

3шт.

38

4452480

Needle Bearing

SUB FOR TH4452480

3шт.

39

4269295

Shim

SUB FOR AT154773

6шт.

40

4263901

Spacer

SUB FOR AT201718

3шт.

41

4222030

Spring Pin

SUB FOR AT202097

3шт.

42

2046005

Shaft

SUB FOR TH2046005

1шт.

43

12H236

Lock Washer

3/4"

4шт.

44

0153426

Fitting Plug

SUB FOR AT133613

3шт.

46

4288767

Pin

SUB FOR AT201749

1шт.

49

19M8969

Cap Screw

M18 X 60 SUB FOR J911860

4шт.

50

4274541

Ball Bearing

SUB FOR AT160248

1шт.

51

40M7090

Snap Ring

1шт.

52

Decals

AT154130 NLA

1шт.

53

37H99

Screw

0.100" X 1/4"

2шт.

55

4271596

O-Ring

SUB FOR AT131752

1шт.

56

1024284

Cover

SUB FOR AT219586

1шт.

57

4373463

Bolt

SUB FOR AT217130

16шт.
