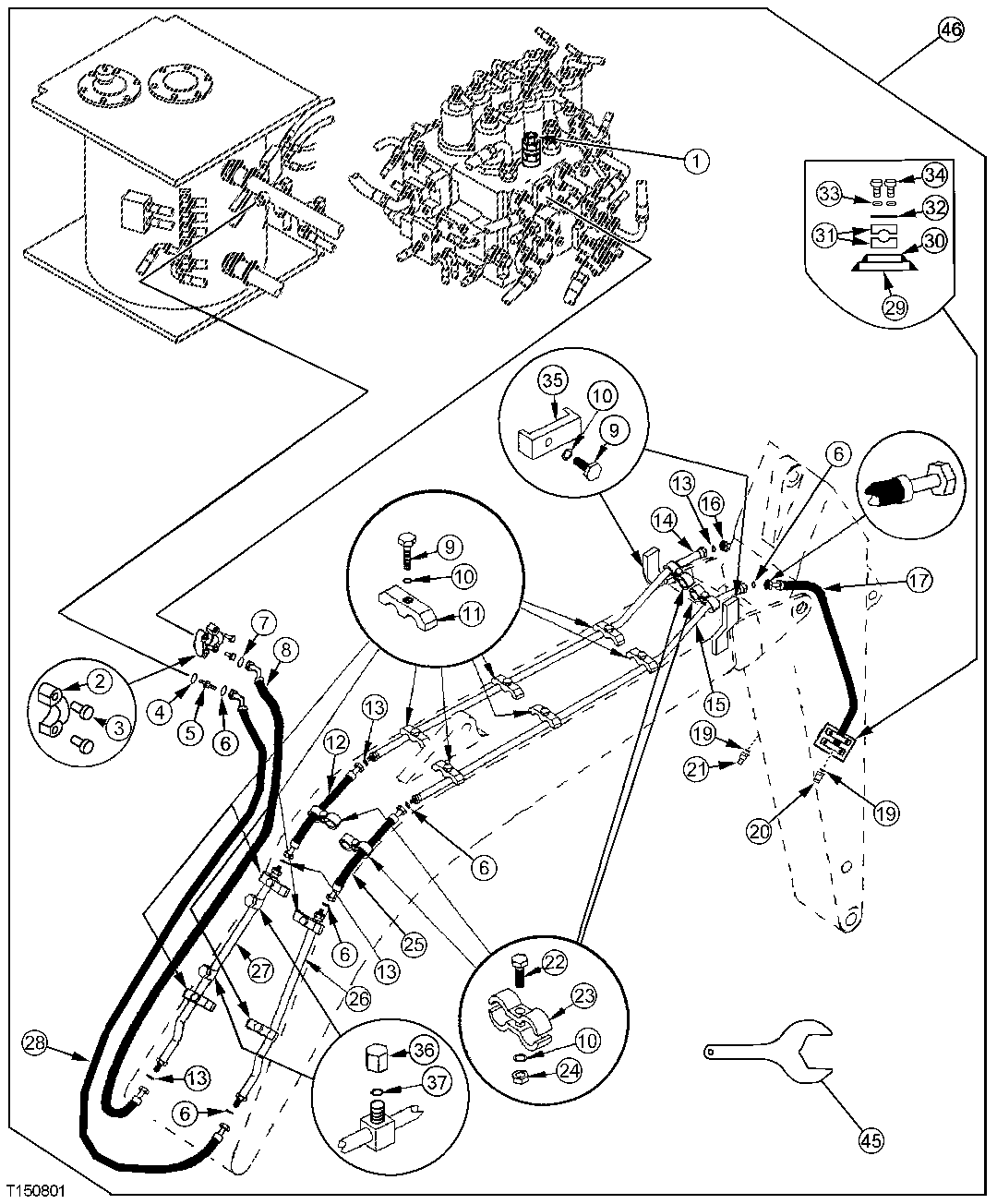

Запчасти John Deere 30CLC 390 - AUXILIARY HYDRAULIC LINE (ONE WAY FLOW - HAMMERS) 3360 HYDRAULIC SYSTEM

1

4419373

Pressure Relief Valve

(SUB FOR AT185397)

1шт.

2

H61354

Flange Fitting

2шт.

3

19M7576

Screw

M10 X 30 (SUB FOR J781030)

4шт.

4

TH101926

O-Ring

1шт.

5

4207425

Adapter Fitting

(SUB FOR TH111740)

1шт.

6

T78612

O-Ring

1шт.

7

T78313

O-Ring

1шт.

8

AT217763

Hydraulic Hose

1" X 1700 mm (67") X 36.5252"

1шт.

9

19M7753

Cap Screw

M12 X 70

12шт.

10

12H301

Lock Washer

1/2"

16шт.

11

4189860

Clamp

(SUB FOR TH108314)

10шт.

12

AT163473

Hydraulic Hose

36.5252" X 1612 mm (63-1/2") X 36.5252"

1шт.

13

T76938

O-Ring

23.520 X 1.780 mm (0.926" X 0.070")

4шт.

14

AT163479

Line

1шт.

15

AT186558

Oil Line

1шт.

16

AT187891

Hydraulic Hose

36.5252" X 1828 mm (72") X 36.5252"

1шт.

17

AT186575

Hydraulic Hose

1-5/8" X 1828 mm (72") X 42.8752"

1шт.

19

U13639

O-Ring

2шт.

20

AT186126

Quick Coupler

Order (1) For Each Additional Attachment

1шт.

21

AT186124

Quick Coupler

Order (1) For Each Additional Attachment

1шт.

22

19M7361

Cap Screw

M12 X 50

4шт.

23

4202103

Clamp

(SUB FOR TH108302)

8шт.

24

14M7275

Nut

M12

4шт.

25

AT186557

Hydraulic Hose

1шт.

26

AT186556

Oil Line

1шт.

27

AT163476

Line

2шт.

28

AT186574

Hydraulic Hose

1шт.

29

T184549

Spacer

2шт.

30

T166675

Plate

(RH)

2шт.

T167276

Plate

(LH)

2шт.

31

AT190587

Clamp

(RH)

2шт.

AT190586

Clamp

(LH)

2шт.

32

T166674

Plate

(RH)

2шт.

T167277

Plate

(LH)

2шт.

33

24H1219

Washer

7/16" X 1" X 0.083"

8шт.

34

19H3197

Cap Screw

7/16" X 4" (RH)

4шт.

19H2732

Cap Screw

3/8" X 2-3/4" (LH)

4шт.

35

4190127

Clamp

(SUB FOR TH108313)

2шт.

36

38H1418

Fitting

2шт.

37

T77858

O-Ring

2шт.

38

38H1180

Adapter Fitting

Not Illustrated

1шт.

39

AT186128

Cap

Dust Cover (NOT ILLUSTRATED)

1шт.

40

AT186129

Plug

Dust Cover (NOT ILLUSTRATED)

1шт.

41

H126247

Clamp

Not Illustrated

1шт.

42

03M7189

Bolt

M8 X 45 Not Illustrated

1шт.

43

14M7020

Wing Nut

M8 Not Illustrated

1шт.

44

24M7036

Washer

9 X 16 X 1.600 mm Not Illustrated

1шт.

45

T183966

Wrench

1шт.

46

Kit

WHOLE GOODS ( AT196996 NLA)

1шт.
