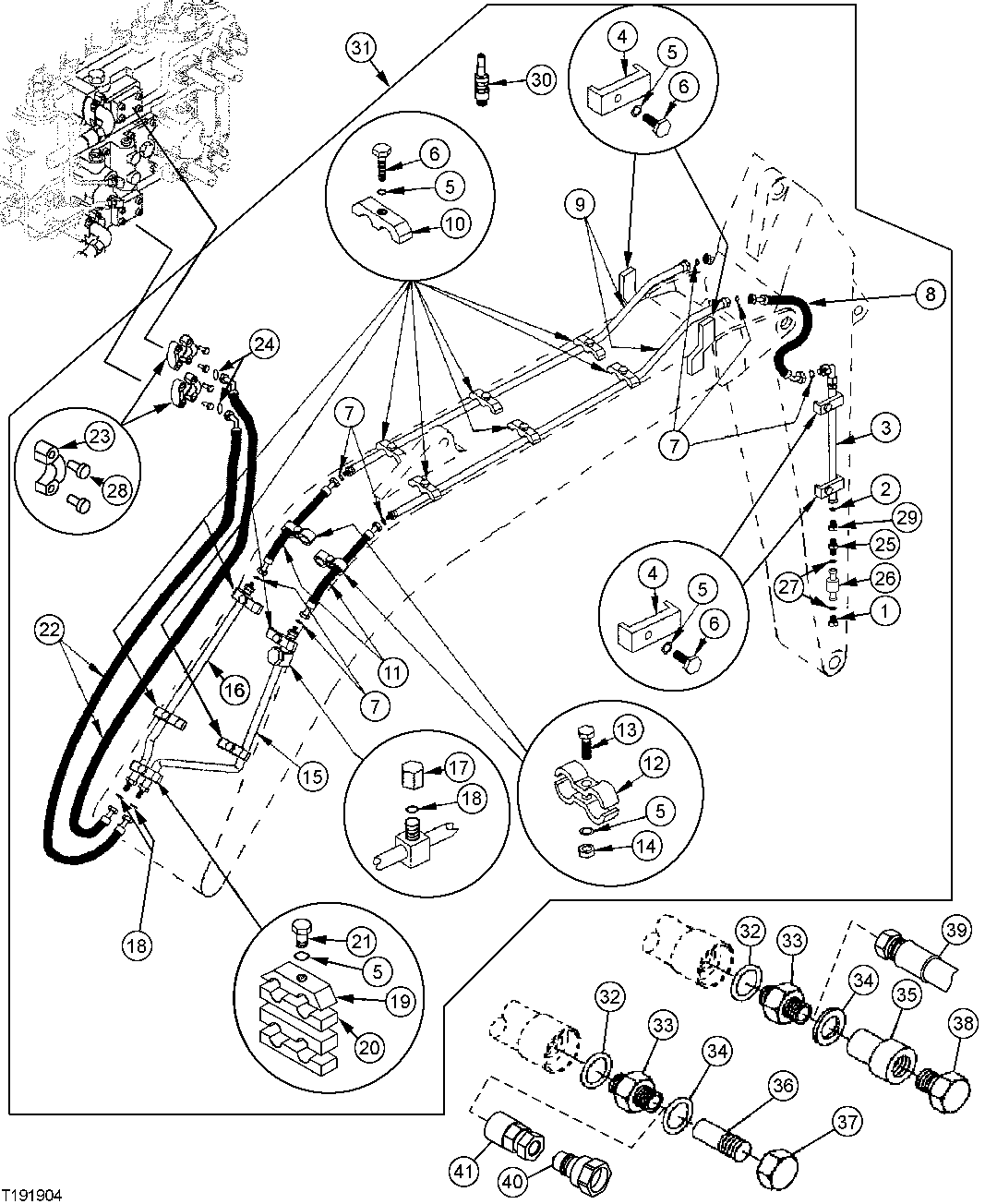

Запчасти John Deere 30CLC 387 - AUXILIARY HYDRAULIC LINE (TWO WAY FLOW - CYLINDER) 3360 HYDRAULIC SYSTEM

20

4249704

Clamp

(SUB FOR AT122946)

1шт.

21

19M7758

Cap Screw

M12 X 130

1шт.

22

AT217763

Hydraulic Hose

1" X 1700 mm (67") X 36.5252"

2шт.

23

H61354

Flange Fitting

4шт.

24

T78313

O-Ring

2шт.

25

38H1196

Adapter Fitting

2шт.

26

AT196851

Hand Operated Valve

2шт.

27

R29936

O-Ring

2шт.

28

19M7576

Screw

M10 X 30 (SUB FOR J781030)

8шт.

29

R36636

Fitting Plug

2шт.

30

4419373

Pressure Relief Valve

(SUB FOR AT185397)

2шт.

31

Kit

( AT196995 NLA) (WHOLEGOODS) (ALSO OR DER AT163484 (3.96 M ARM) OR AT163484 (3.2 M ARM)) Auxiliary Hydraulic Lines

1шт.

32

T78612

O-Ring

2шт.

33

38H1216

Adapter Fitting

(1 INCH ORFS) (ALSO OR DER T76938 AND R29936)

2шт.

38H1194

Adapter Fitting

(3/4 INCH ORFS) (ALSO O RDER T77858 AND R29936)

2шт.

AT46961

Union Fitting

(1 INCH SAE, MALE)

2шт.

T27603

Fitting

(3/4 INCH, 37 DEGREE)

2шт.

T26767

Fitting

(1 INCH, 37 DEGREE)

2шт.

AT83306

Adapter Fitting

(3/4 INCH SAE, MALE)

2шт.

34

U13639

O-Ring

2шт.

35

AT186126

Quick Coupler

(1 1/4 INCH FEMALE) Screw Together Coupler

1шт.

Kit

( AT189412 NLA)

1шт.

36

AT186124

Quick Coupler

(1 1/4 INCH MALE) Screw Together Coupler

1шт.

AT189411

Seal Kit

1шт.

37

AT186128

Cap

1шт.

38

AT186129

Plug

1шт.

39

X1JS78-20-16

Hose Fitting

(HOSE END - STRAIGHT - 1 1/4 INCH X 1 INCH)

2шт.

X1J978-20-16

Elbow Fitting

(HOSE END - 90 DEG 1 1/4 INCH X 1 INCH)

2шт.

40

AT117365

Hydr. Quick Coupler Plug

(MALE QUICK COUPLER (-12) ) (1 1/16 INCH SAE O-RING)

2шт.

AT120498

Coupling

(MALE QUICK COUPLER (-16) ) (1 5/16 INCH SAE O-RING)

2шт.

41

AT117364

Hydr. Quick Coupler Socket

(FEMALE QUICK COUPLER (-12 )) (1 1/16 INCH SAE O-RING)

2шт.

AT120499

Coupling

(FEMALE QUICK COUPLER (-16 )) (1 5/16 INCH SAE O-RING)

2шт.
