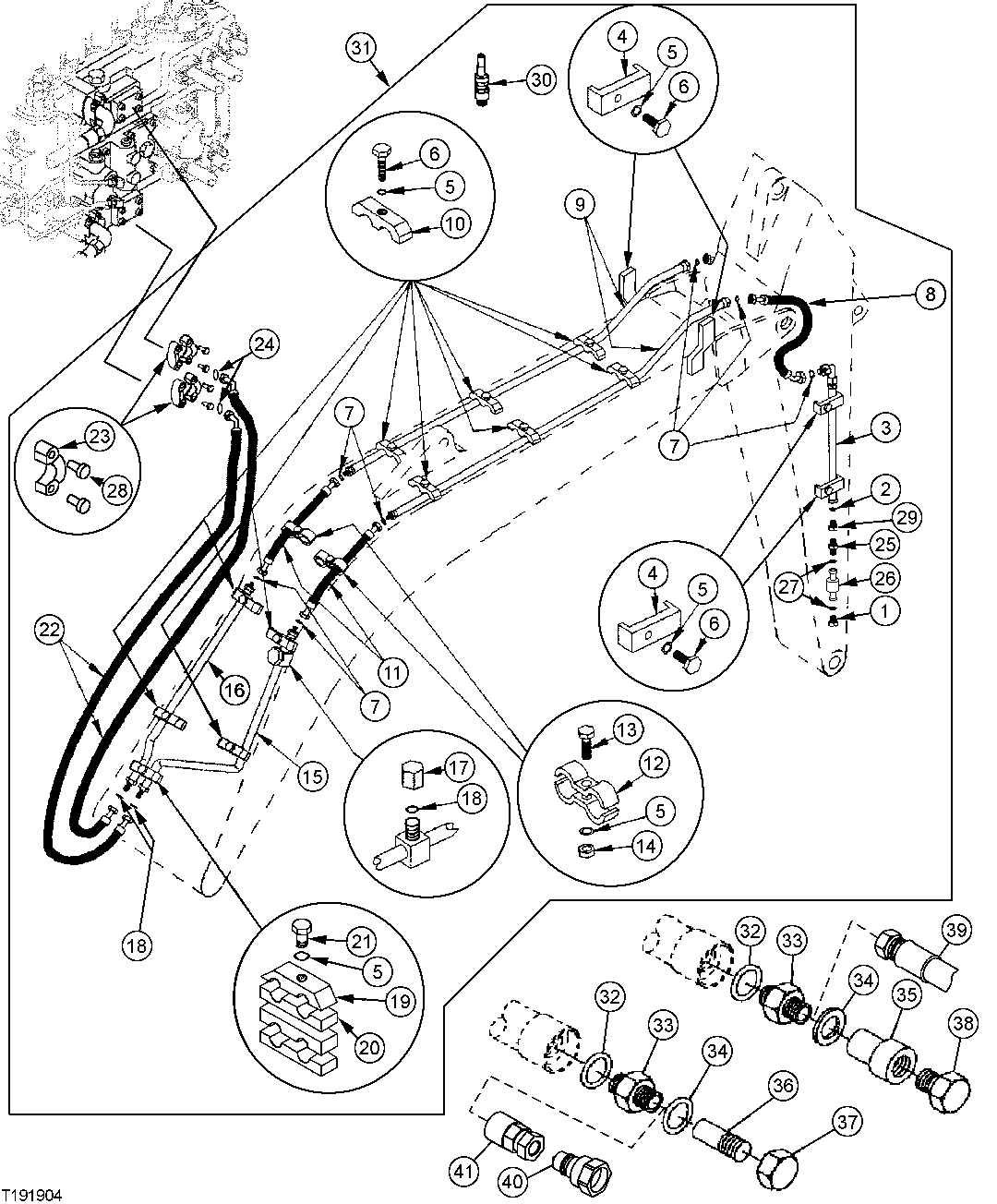

Запчасти John Deere 30CLC 386 - AUXILIARY HYDRAULIC LINE (TWO WAY FLOW - CYLINDER) 3360 HYDRAULIC SYSTEM

1

38H1151

Fitting Plug

2шт.

2

T78612

O-Ring

2шт.

3

AT159934

Oil Line

2шт.

4

4190127

Clamp

(SUB FOR TH108313)

6шт.

5

12H301

Lock Washer

1/2"

21шт.

6

19M7753

Cap Screw

M12 X 70

16шт.

7

T76938

O-Ring

23.520 X 1.780 mm (0.926" X 0.070")

10шт.

8

AT163483

Hydraulic Hose

36.5252" X 1485 mm (58-1/2") X 36.5252"

2шт.

AT163484

Hydraulic Hose

36.5252" X 2235 mm (88") X 36.5252"

2шт.

9

AT163479

Line

2шт.

10

4189860

Clamp

11шт.

11

AT163473

Hydraulic Hose

36.5252" X 1612 mm (63-1/2") X 36.5252"

2шт.

12

4202103

Clamp

(SUB FOR TH108302)

8шт.

13

19M7361

Cap Screw

M12 X 50

4шт.

14

14M7275

Nut

M12

4шт.

15

AT163474

Line

1шт.

16

AT163476

Line

1шт.

17

38H1418

Fitting

4шт.

18

T77858

O-Ring

4шт.

19

9735916

Channel

(SUB FOR AT157648)

2шт.
