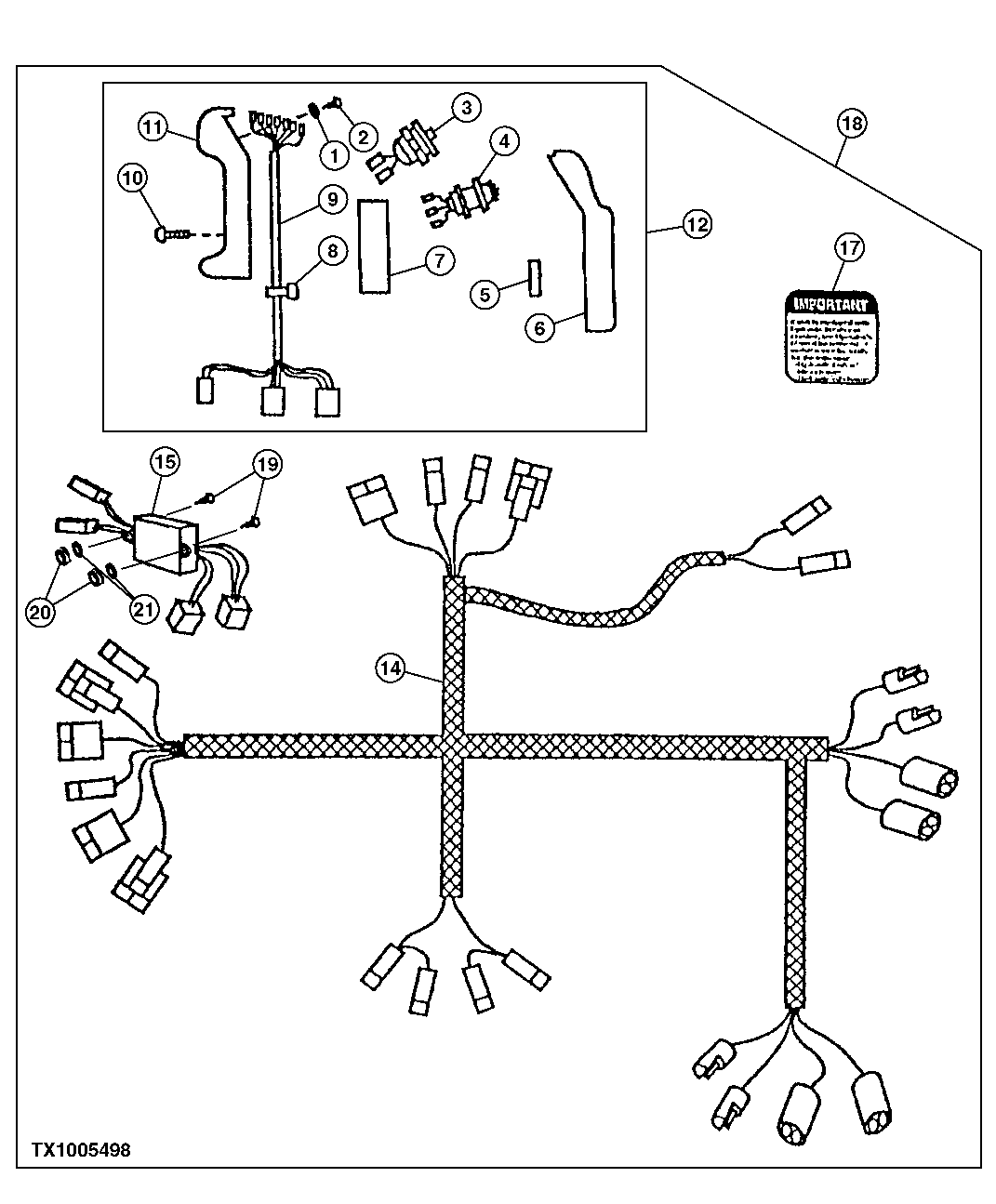

Запчасти John Deere 30CLC 383 - DUAL CONTROL HANDLE WITH WIRING FOR AUXILIARY CONTROLS (TWO SOLENOIDS) 3360 HYDRAULIC SYSTEM

1

12H321

Washer

0.138"

7шт.

2

21H1308

Screw

0.138" X 3/8"

7шт.

3

AT139383

Toggle/Rocker Switch

(PUSH BUTTON) (MOMENTARY)

1шт.

4

AT139382

Toggle/Rocker Switch

2шт.

5

R71799

Needle Roller

2шт.

6

T114699

Handle

1шт.

7

T114698

Support

1шт.

8

R44302

Tie Band

2шт.

9

AT195787

Wiring Harness

1шт.

10

T80394

Screw

6шт.

11

AT115448

Handle

1шт.

12

AT195786

Control Lever

Pilot

1шт.

14

AT195788

Wiring Harness

Solenoid Valve

1шт.

15

AT141562

Relay Module

1шт.

17

T149434

Label

IMPORTANT (BETWEEN ASHTRAY AND OPERATO R'S CAUTION DECAL ON RIGHT SIDE OF CAB)

1шт.

18

Field Installation Kit

(WHOLEGOODS) (CONTROL HANDLE WITH SWITCHES) ( AT195784 NLA)

1шт.

19

21M7246

Screw

M6 X 16

2шт.

20

14M7272

Nut

M6

2шт.

21

24M7293

Washer

6.500 X 13 X 1.600 mm

2шт.
