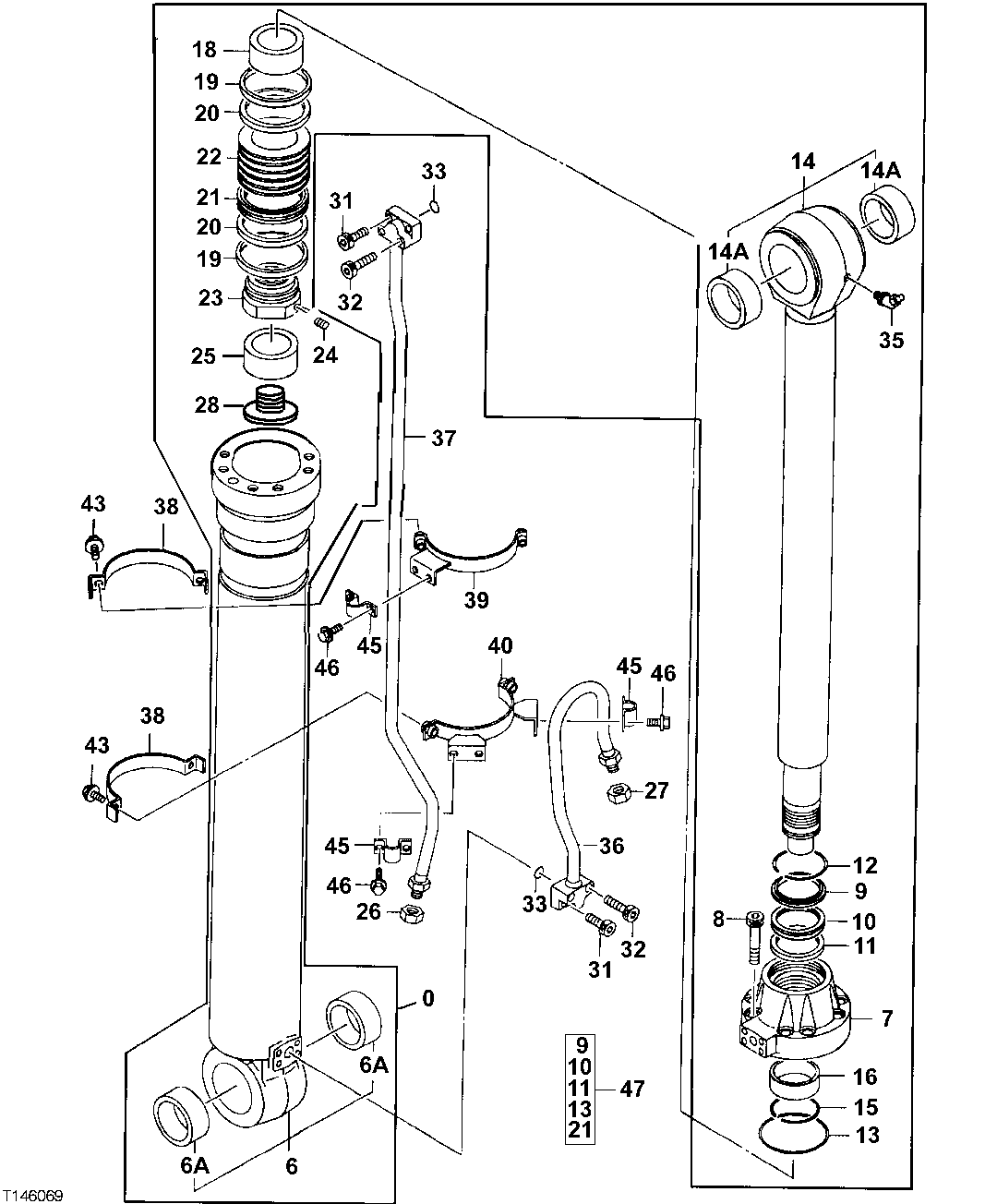

Запчасти John Deere 30CLC 373 - Arm Cylinder ( - XXXXXX) 3360 HYDRAULIC SYSTEM

0

Hydraulic Cylinder

Cone Shaped Rod Guide With 8 Mounting Bolts 9206360 NLA

1шт.

6A

4381859

Bushing

(SUB FOR AT250029)

2шт.

6

9206363

Hydraulic Cylinder Barrel

(SUB FOR TH9206363)

1шт.

7

1025101

Hydr. Cylinder Rod Guide

(SUB FOR AT219589)

1шт.

8

M342700

Screw

(SUB FOR TH111068)

8шт.

9

AT264305

Seal

(SUB FOR AT250009, 4370927)

1шт.

10

AT264300

Seal

(SUB FOR 4411659, AT192601)

1шт.

11

4411656

Ring

(SUB FOR AT264299, AT192600)

1шт.

12

4370058

Snap Ring

(SUB FOR AT250001)

1шт.

13

AT264309

O-Ring

For Heat Problems See DTAC Solu tion (SUB FOR AT250098, 4393350)

1шт.

4641099

O-Ring

Heat Resistant

1шт.

14

7037432

Rod

(SUB FOR TH7037432)

1шт.

14A

4381859

Bushing

(SUB FOR AT250029)

2шт.

15

4372816

Snap Ring

(SUB FOR AT250011)

1шт.

16

AT264304

Bushing

(SUB FOR AT250007, 4370337)

1шт.

18

2041632

Ring

(SUB FOR AT192512)

1шт.

19

AT264302

Ring

(SUB FOR AT250005, 4370063)

2шт.

20

AT264303

Wear Ring

(SUB FOR AT250006, 4370064)

2шт.

21

AT264301

Seal

(SUB FOR AT250004, 4370062)

1шт.

22

3080654

Piston

(SUB FOR AT219642)

1шт.

23

3062096

Nut

(SUB FOR AT200985)

1шт.

24

4201806

Set Screw

(SUB FOR TH110066)

1шт.

25

3079648

Ring

(SUB FOR AT193487)

1шт.

26

4260204

Nut

(SUB FOR AT219663)

1шт.

27

4260205

Nut

(SUB FOR AT219664)

1шт.

28

4387203

Plug

(SUB FOR AT185414)

1шт.

31

19M8341

Screw

M12 X 45

4шт.

32

19M8444

Screw

M12 X 60

4шт.

33

AT264324

O-Ring

(SUB FOR TH100044)

2шт.

35

T116334

Lubrication Fitting

1шт.

36

8070112

Oil Line

(SUB FOR AT250223)

1шт.

37

8070113

Oil Line

(SUB FOR AT250224)

1шт.

38

3088474

Clamp

(SUB FOR TH3088474)

2шт.

39

8079073

Clamp

(SUB FOR TH8079073)

1шт.

40

8079076

Clamp

(SUB FOR TH8079076)

1шт.

43

19M7550

Cap Screw

M10 X 35

4шт.

12M7066

Lock Washer

10 mm

4шт.

45

4174241

Clamp

(SUB FOR TH110059)

3шт.

46

19M7402

Cap Screw

M10 X 25

6шт.

12M7066

Lock Washer

10 mm

6шт.

47

9180582

Seal Kit

For Heat Problems See DTAC Solution (AL SO INCLUDES AT280442) (SUB FOR AT264441)

1шт.

9257552

Seal Kit

Heat Resistant

1шт.
