Запчасти John Deere 30CLC 370 - LEFT BOOM CYLINDER (370C) (SN -083162) 3360 HYDRAULIC SYSTEM

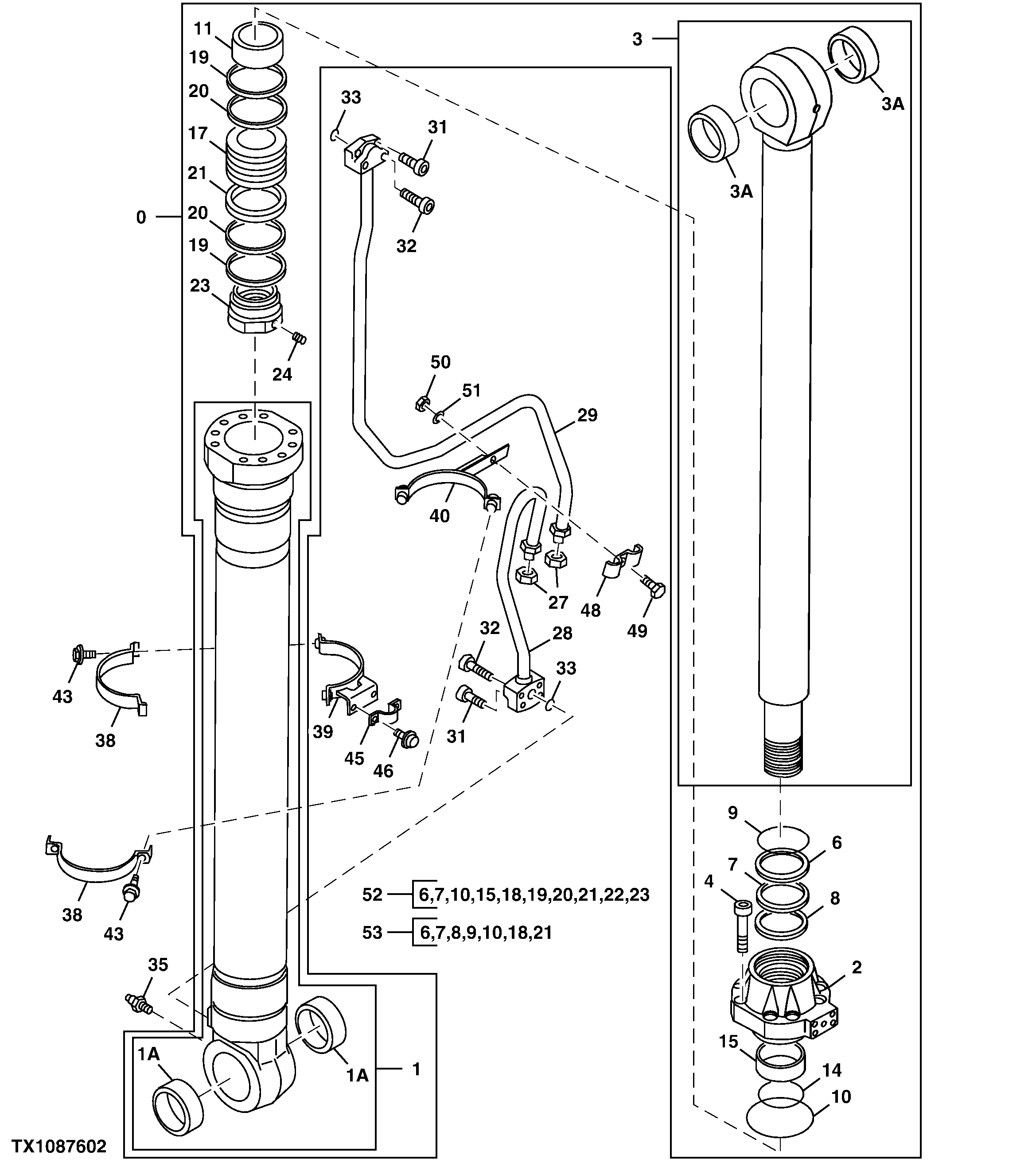

Схема запчастей John Deere 30CLC - 370 - LEFT BOOM CYLINDER (370C) (SN -083162) 3360 HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

0

TH9206359

Hydraulic Cylinder

NLA

1шт.

1

9206362

Hydraulic Cylinder Barrel

1шт.

1A

4381855

Bushing

(SUB FOR AT250026)

2шт.

2

1026691

Cylinder Head

(SUB FOR TH1026691)

1шт.

3

7037753

Rod

(SUB FOR TH7037753)

1шт.

3A

4381855

Bushing

(SUB FOR AT250026)

2шт.

4

19M8630

Screw

M24 X 80

9шт.

6

AT264298

Seal

Dust (SUB FOR 4351498)

1шт.

7

AT333702

Seal

(ALSO ORDER AT280445 ) (SUB FO R TH111838, 4171485 OR 4411660)

1шт.

8

AT264414

Seal

(SUB FOR TH111839, 4171487 OR 4411655)

1шт.

9

4383089

Snap Ring

(SUB FOR AT250038)

1шт.

10

AT264307

O-Ring

(SUB FOR AT250040, 4383091)

1шт.

11

2041628

Ring

(SUB FOR TH2041628)

1шт.

14

4268206

Snap Ring

(SUB FOR AT130834)

1шт.

15

AT264308

Bushing

(SUB FOR AT250041, 4383093)

1шт.

17

3080834

Piston

(SUB FOR AT219644)

1шт.

18

AT264306

Seal

(NOT ILLUSTRATED)

1шт.

19

AT264415

Ring

(SUB FOR TH111845, 4171490)

2шт.

20

AT264416

Wear Ring

(SUB FOR TH111846, 4194622)

2шт.

21

AT264417

Ring

(SUB FOR TH111847, 4386916)

1шт.

22

AT280445

Back-Up Ring

(NOT ILLUSTRATED)

1шт.

23

3039349

Nut

(SUB FOR TH111848)

1шт.

24

4201806

Set Screw

(SUB FOR TH110066)

1шт.

27

4260204

Nut

(SUB FOR AT219663)

2шт.

28

8069110

Oil Line

(SUB FOR AT250207)

1шт.

29

8069111

Oil Line

(SUB FOR AT250208)

1шт.

31

19M8341

Screw

M12 X 45

4шт.

32

19M8444

Screw

M12 X 60

4шт.

33

AT264324

O-Ring

(SUB FOR TH100044)

2шт.

35

TH100074

Lubrication Fitting

1шт.

38

3080216

Clamp

(SUB FOR TH3080216)

2шт.

39

8069891

Clamp

(SUB FOR TH8069891)

1шт.

40

8079344

Clamp

(SUB FOR TH8079344)

1шт.

43

19M7550

Cap Screw

M10 X 35

4шт.

12M7066

Lock Washer

10 mm

4шт.

45

4174241

Clamp

(SUB FOR TH110059)

1шт.

46

19M7402

Cap Screw

M10 X 25

2шт.

12M7066

Lock Washer

10 mm

2шт.

48

4229234

Clamp

(SUB FOR TH111990)

1шт.

49

19M8348

Cap Screw

M12 X 65

1шт.

50

14M7275

Nut

M12

1шт.

51

12H301

Lock Washer

1/2"

1шт.

52

Seal Kit

( AT264440 NLA) (SUB 9180581, ALSO ORDER A T264308, AT264416, AT264415 AND AT264324)

1шт.

53

9180581

Seal Kit

1шт.

Выбрано товаров: 44
