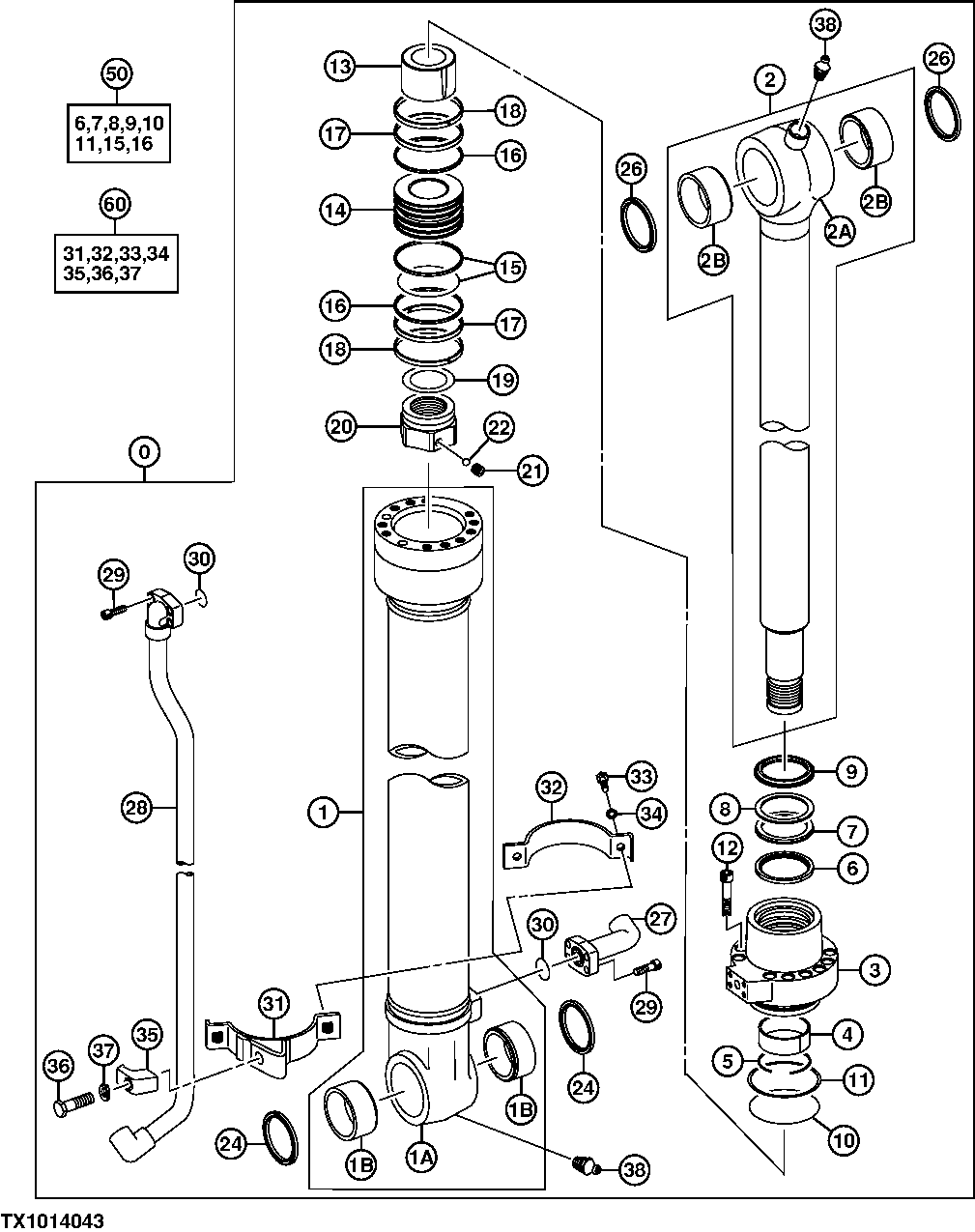

Запчасти John Deere 30CLC 362 - Bucket Cylinder Components (Super Long Front) 3360 HYDRAULIC SYSTEM

0

9152098

Cylinder

NLA, SUB FOR 4370785

1шт.

1

AH155038

Hydraulic Cylinder Barrel

SUB FOR 0694401

1шт.

Hyd Cylinder Barrel Reman

PG201491 NLA

1шт.

1A

Hydraulic Cylinder Barrel

1шт.

1B

4362025

Bushing

2шт.

2

AH234896

Rod

SUB FOR 0694402

1шт.

Hyd Cylinder Rod Reman

PG201440 NLA

1шт.

2A

Rod

1шт.

2B

4352400

Bushing

2шт.

3

H158027

Hydr. Cylinder Rod Guide

SUB FOR 0675105

1шт.

4

TH109311

Wear Ring

SUB FOR 0310504

1шт.

5

TH109312

Snap Ring

SUB FOR 0240904

1шт.

6

AH148777

Ring

SUB FOR 0409605

1шт.

7

0240911

Packing

SUB FOR 4S00189 OR TH109314

1шт.

8

0240912

Back-Up Ring

SUB FOR 4S00190 OR TH109315

1шт.

9

H155867

Seal

SUB FOR 0667504

1шт.

10

AT264319

O-Ring

SUB FOR A811100

1шт.

11

TH109318

Back-Up Ring

SUB FOR 0310506

1шт.

12

19M8930

Screw

M14 X 65 SUB FOR 0408805

12шт.

13

H163452

Ring

SUB FOR 0694403

1шт.

14

H158463

Piston

SUB FOR 0408808

1шт.

15

AT264387

Ring

SUB FOR 0310508

1шт.

16

AT153919

Back-Up Ring

SUB FOR 0408809

2шт.

17

H158459

Scraper Ring

SUB FOR 0666808

2шт.

18

AT264388

Ring

SUB FOR 0310510

2шт.

19

TH109328

Shim

SUB FOR 0310514

1шт.

20

H158465

Nut

SUB FOR 0666809

1шт.

21

22M6684

Set Screw

M12 X 12 SUB FOR 0309011

1шт.

22

T13624

Ball

SUB FOR 0111707

1шт.

24

TH100374

Seal

SUB FOR 0409112

2шт.

26

TH104472

Seal

SUB FOR 0408810

2шт.

27

8086114G

Oil Line

SUB FOR 0309312 OR 8086114

1шт.

28

AH234869

Oil Line

SUB FOR 0694404 OR AH155048

1шт.

29

19M8337

Screw

M10 X 30 SUB FOR 0158855

8шт.

30

AT264360

O-Ring

SUB FOR 4506430

2шт.

31

AHC10166

Clamp

SUB FOR 0675108 AND AH152929

1шт.

32

H159705

Band

SUB FOR 0409612

1шт.

33

19M7550

Cap Screw

M10 X 35 SUB FOR 0408815

2шт.

34

12M7066

Lock Washer

10 mm SUB FOR 0325913

2шт.

35

H238070

Clamp

SUB FOR 0309021 OR T108036

1шт.

36

19M7362

Cap Screw

M12 X 55 SUB FOR 0667013

1шт.

37

12M7067

Lock Washer

12 mm SUB FOR 0208516

1шт.

38

TH100074

Lubrication Fitting

SUB FOR J75481

2шт.

40

Kit

AT314804 NLA Super Lon g Front Not Illustrated

1шт.

50

AH155040

Hydraulic Cylinder Kit

SUB FOR 4389721

1шт.

60

Kit

0675109 NLA

1шт.
